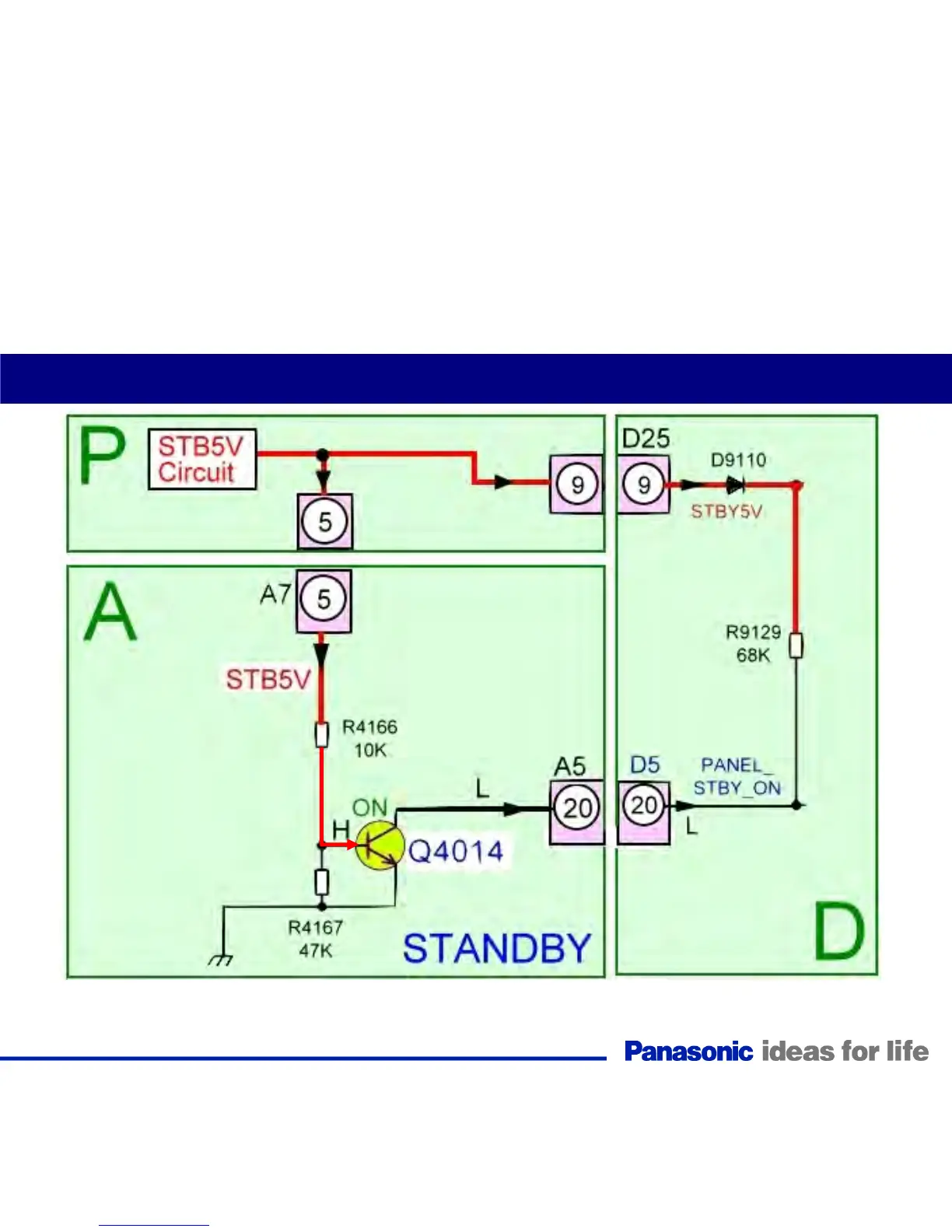

This circuit combined with the circuit in the following page is used to explain the reason why the CPU
(IC9003) on the D board is not active during Standby. The transistor Q9014 is on to keep
PANEL_STBY_ON low.
