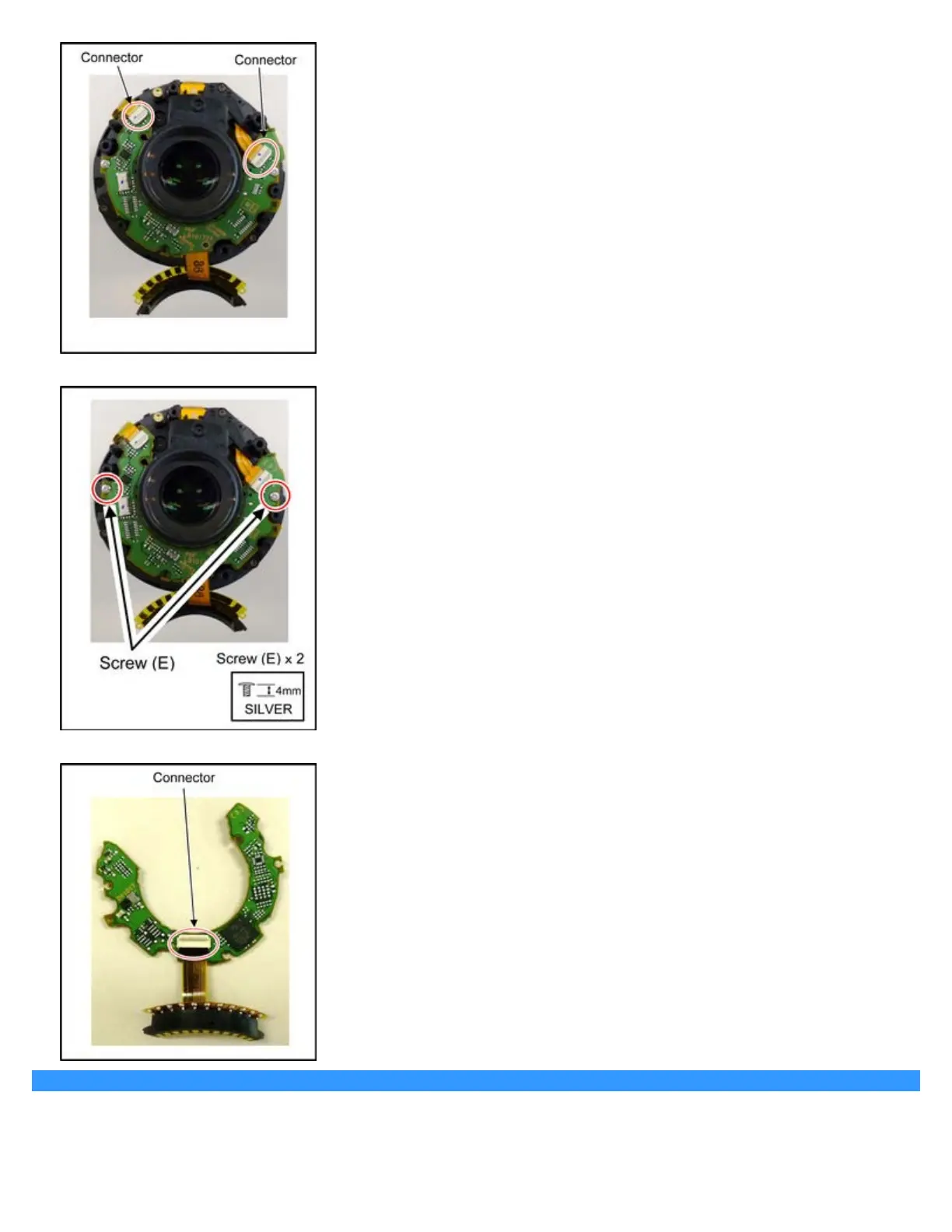

2. Remove 2 screws (E) and the Lens P.C.B. with the Mount Contact Unit.
3. Remove the Mount Connect Unit from Lens P.C.B..
6.3.6 Removal of the Zoom Drive Pin and the Zoom Ring Unit
1. Remove 2 screws (F) and the Zoom Drive Pin.
2. Remove the Zoom Ring Unit.
