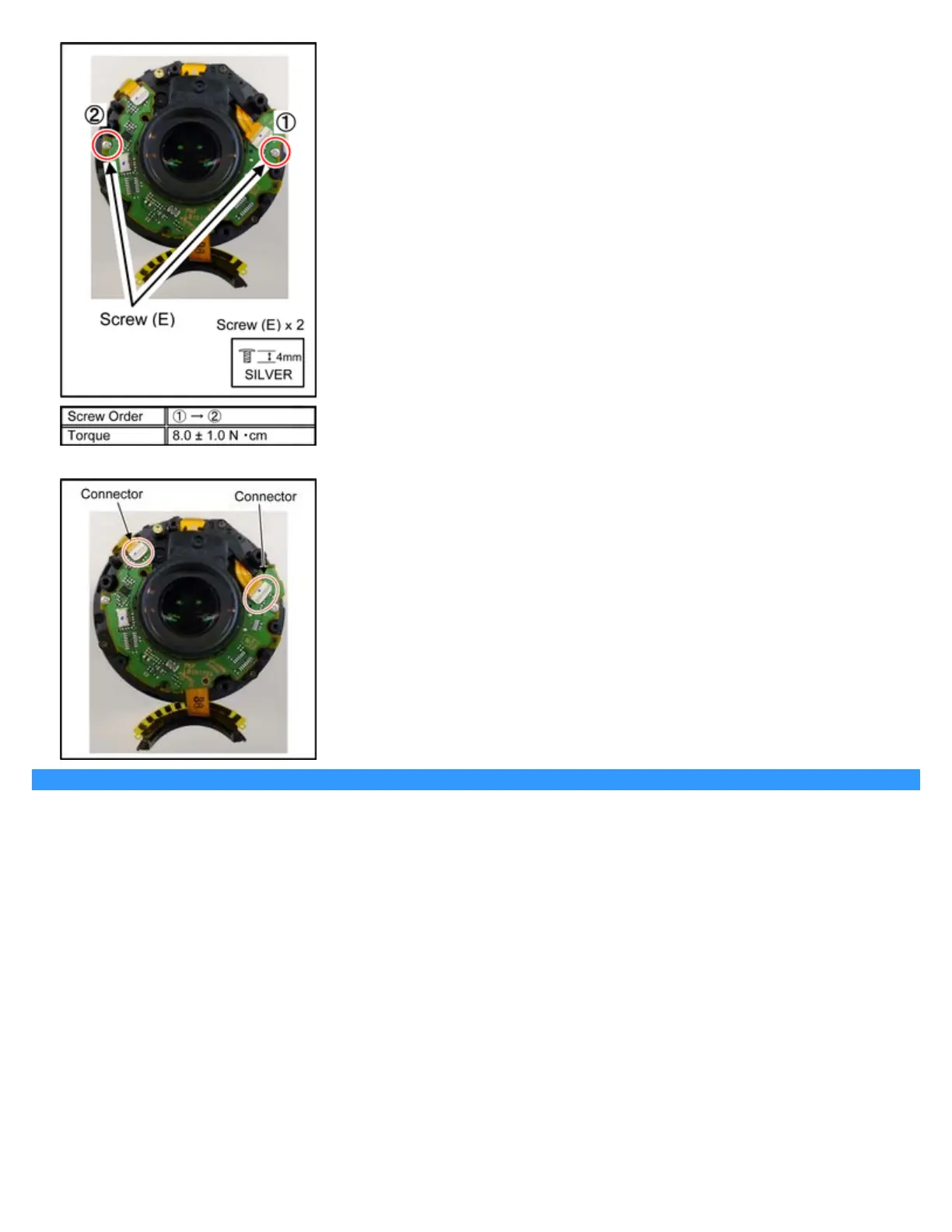

4. Connect FPCs to 2 connectors of the Lens P.C.B. Unit.
6.5.3 Installation of the Rear Frame Unit and the Dustproof Rubber
1. Install the Rear Frame Unit and the Dustproof Rubber.
2. 
3. Connect FPC to connector of the Lens P.C.B. Unit.
