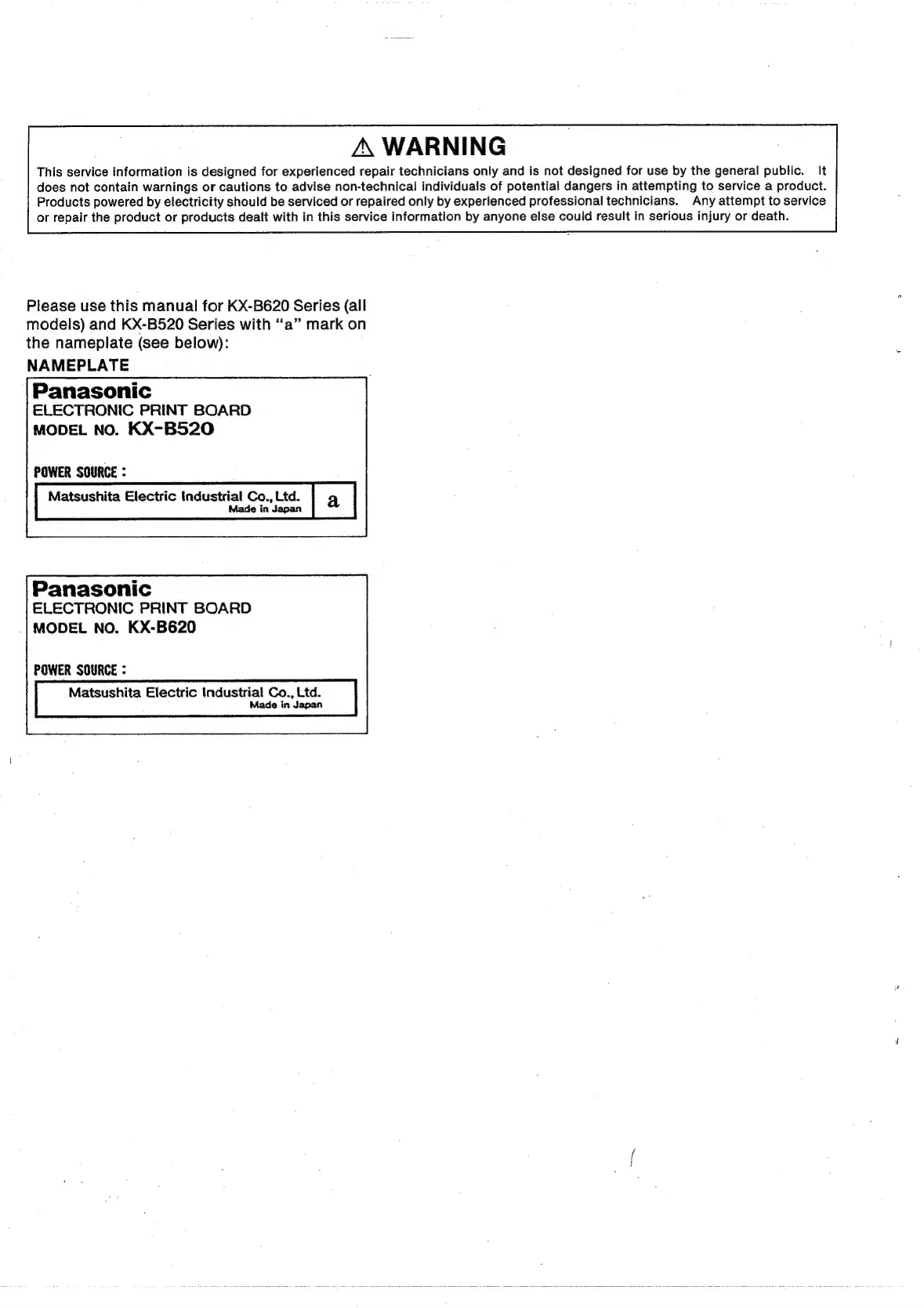

A. WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It
does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
Please use this manual for KX-B620 Series (all
models) and KX-B520 Series with “a” mark on
the nameplate (see below):
NAMEPLATE
Panasonic
ELECTRONIC PRINT BOARD
MODEL NO. KX-B520
POWER SOURCE :
Matsushita Electric industrial Co., Ltd. a |
Made in Japan
Panasonic
ELECTRONIC PRINT BOARD
| MODEL NO. KX-B620
POWER SOURCE :
Matsushita Electric Industrial Co., Ltd.
Made in Japan
