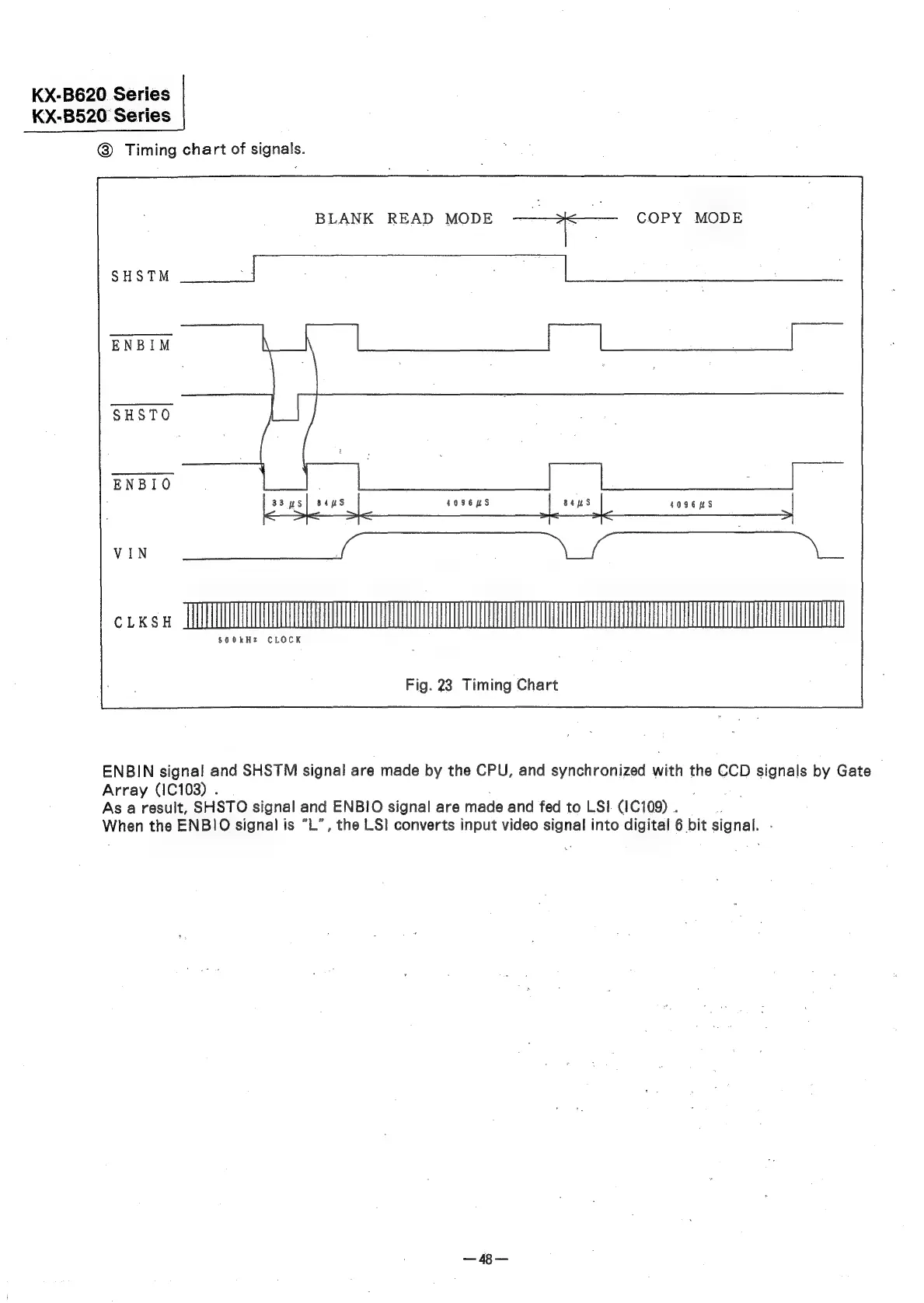

@ Timing chart of signals.
BLANK READ MODE eee COPY MODE
SHSTM ea oe cp
33 ys] 84us 40962RS 4096 nS
VIN
pent
!~O~;«S;7C
st
ae
!COCOC™”™~S
CLKSH
LE
$00kHz CLOCK
Fig. 23 Timing Chart
ENBIN signal and SHSTM signal are made by the CPU, and synchronized with the CCD signals by Gate
Array (1C103) .
As a result, SHSTO signal and ENBIO signal are made and fed to LSI. (1C109) .
When the ENBIO signal is “L”, the LS] converts input video slanel into digital 6 bit signal.
