KX-B620 Series
KX-B520 Series

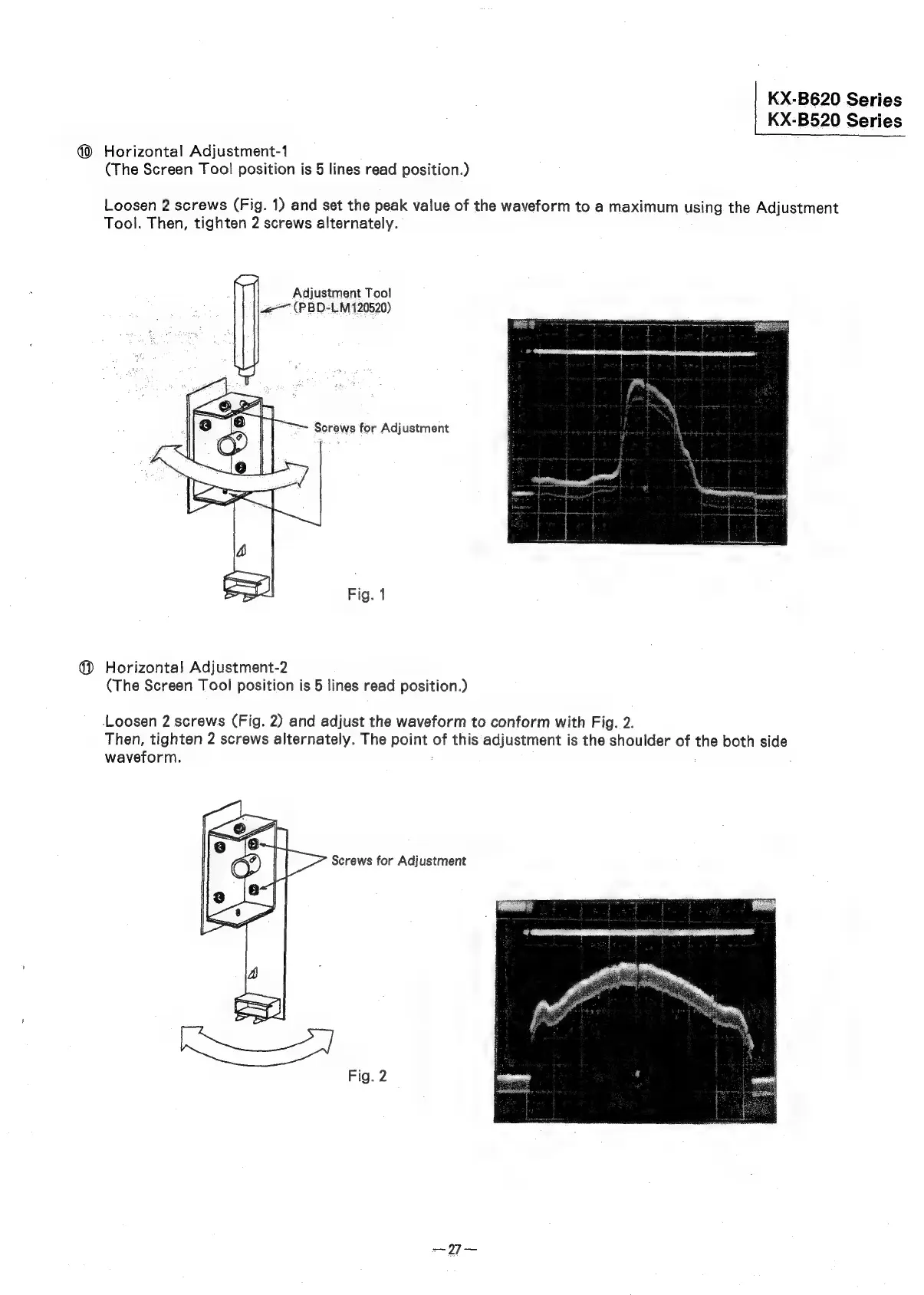

Horizontal Adjustment-1
(The Screen Tool position is 5 lines read position.)
Loosen 2 screws (Fig. 1) and set the peak value of the waveform to a maximum using the Adjustment
Tool. Then, tighten 2 screws alternately.
Adjustment Tool
wz (PBD-LM120520)
Screws for Adjustment
@ Horizontal Adjustment-2
(The Screen Tool position is 5 lines read position.)
‘Loosen 2 screws (Fig. 2) and adjust the waveform to conform with Fig. 2.
Then, tighten 2 screws alternately. The point of this adjustment is the shoulder of the both side
waveform.
Screws for Adjustment
27
