KX-B620 Series
KX-B520 Series

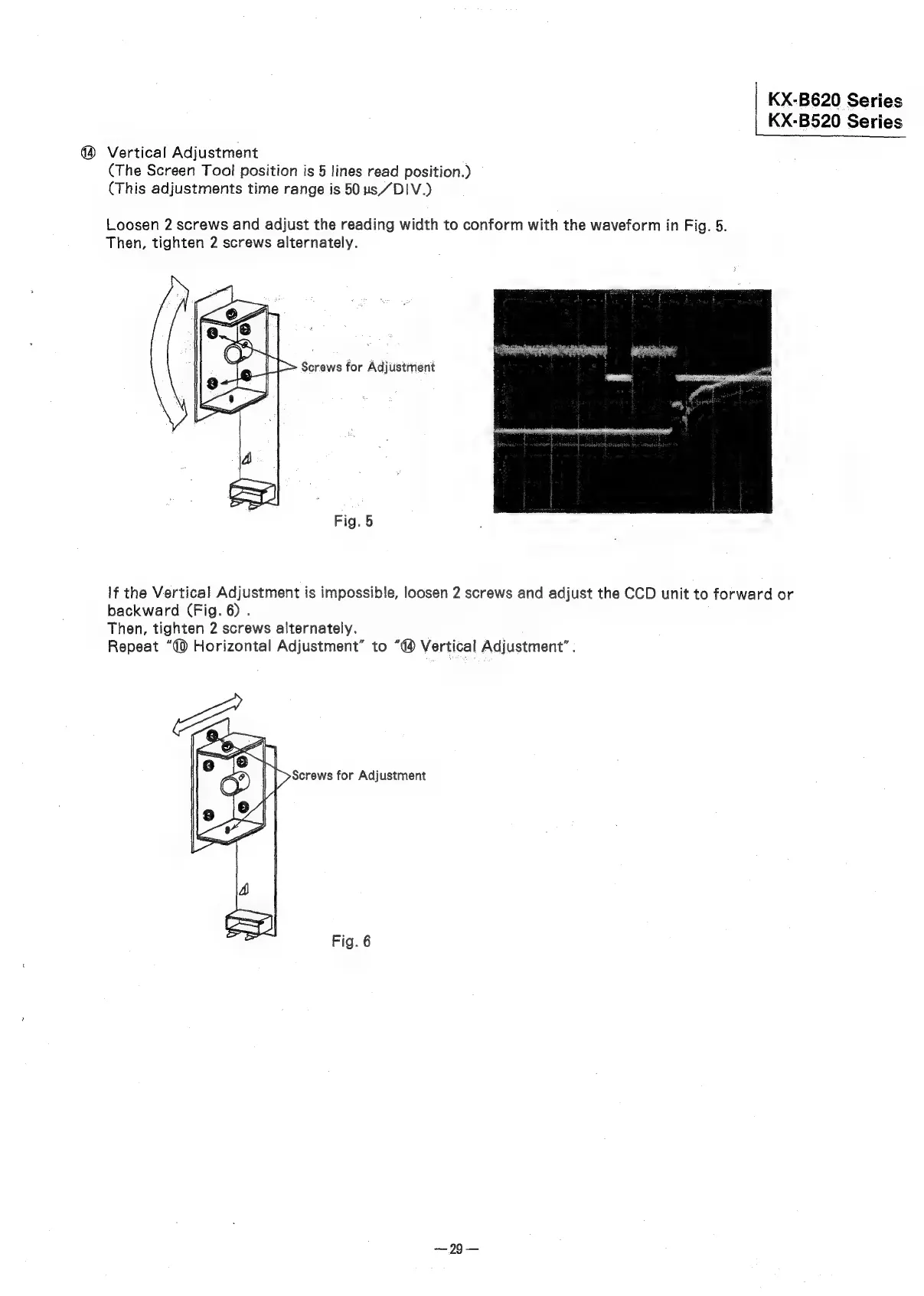

Vertical Adjustment
(The Screen Tool! position is 5 lines read position.)
(This adjustments time range is 50 us /DIV.)
Loosen 2 screws and adjust the reading width to conform with the waveform in Fig. 5.
Then, tighten 2 screws alternately.
Screws for Adjustment
Fig. 5
if the Vertical Adjustment is impossible, loosen 2 screws and adjust the CCD unit to forward or
backward (Fig. 6) .
Then, tighten 2 screws alternately.
Repeat “( Horizontal Adjustment” to “( Vertical Adjustment” .
Fig. 6
