2.2
Reset
Signal
Circuit
1)
Function
When
the
power
is
turned
on,
or
when
the
power
is
momentarily
interrupted,
reset
pulses
are
generated
to
reset
the
CPU.
2)
Circuit
Operation
MOS
When
the
power
is
turned
on
and
the
power
source
Vcc
increases
to
exceed
+4.25
V,
Reset
IC
(C101)
is
activated,
“L”
signal
is
sent
for
about
3.3
ms
and
“H”
is
sent
to
reset
the
CPU
(6-pin)
.
When
the
power
is
momentarily
interrupted
and
power
source
goes
down
below
+4.25
V,
“L”
signal
is
sent
to
stop
the
CPU.
When
the
power
is
resumed
and
power
source
increases
to
exceed
+4.25
V,
“L”
signal
is
sent
for
about
3.3
ms
and
“H”
is
sent
to
reset
the
CPU
again.
Circuit
diagram
and
timings
are
as
follows:
(IC
101)
CPU
(IC
102)
M51953

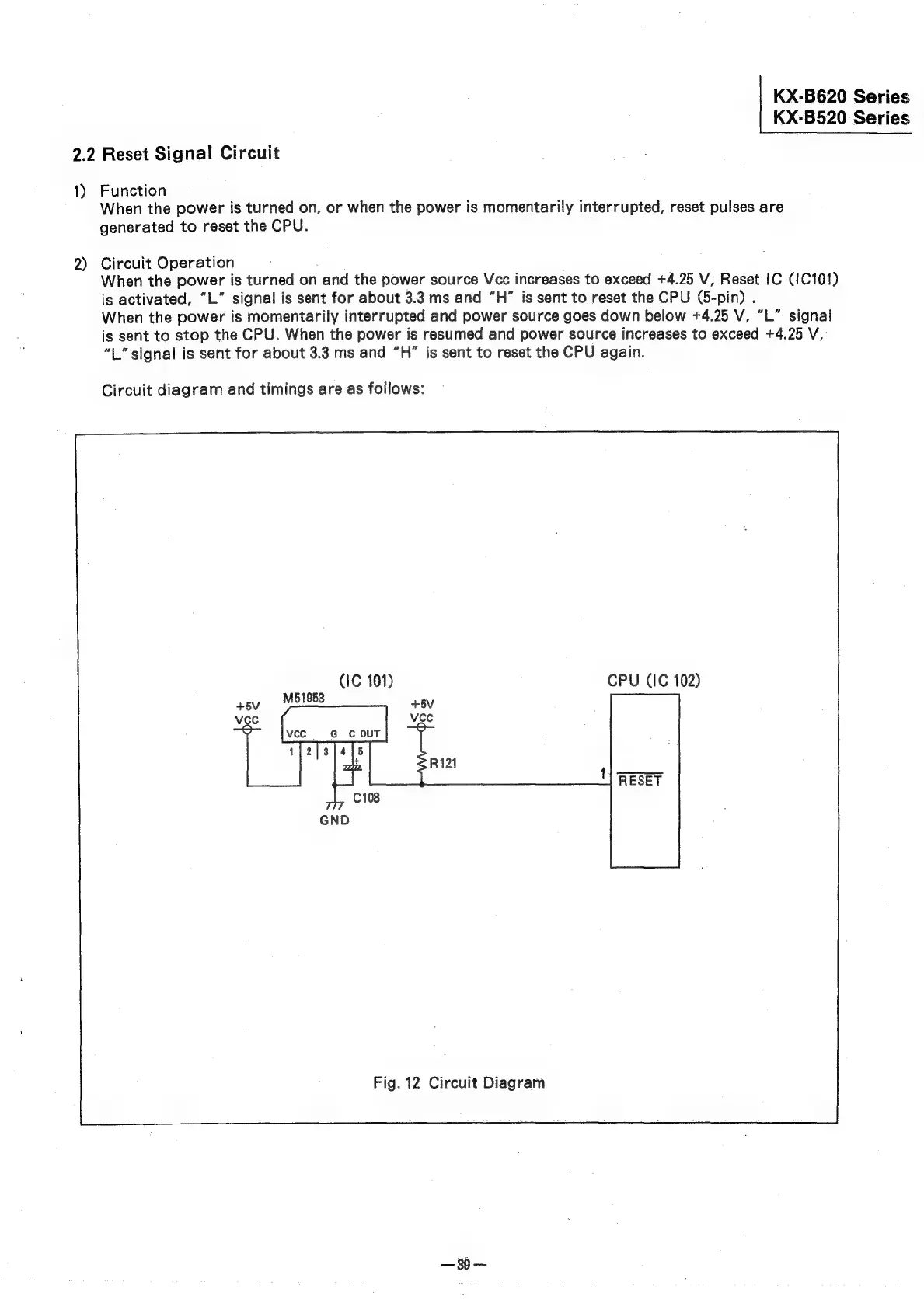

Fig.
12
Circuit
Diagram
