KX-FP207FX-S/FP218FX-S

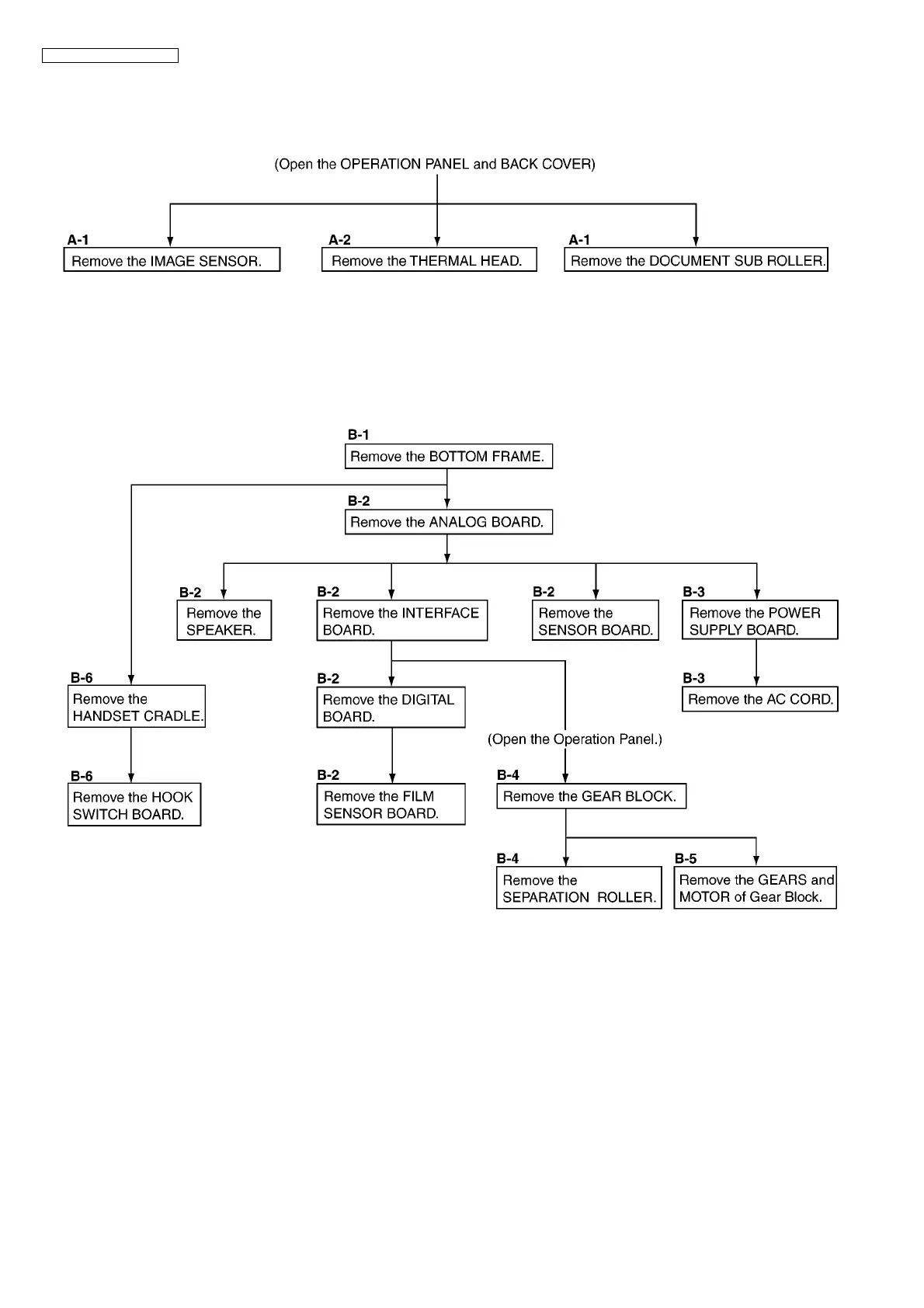

14.2. Disassembly Flowchart
14.2.1. Upper Cabinet Section
REFERENCE:
A-1: How to Remove the Image Sensor (CIS) (P.140)
A-2: How to Remove the Thermal Head (P.141)
14.2.2. Lower Cabinet Section
REFERENCE:
B-1: How to Remove the Bottom Frame (P.143)
B-2: How to Remove the P.C. Boards and Speaker (P.144)
B-3: How to Remove the Power Supply Board and AC cord (P.145)
B-4: How to Remove the Gear Block and Separation Roller (P.146)
B-5: How to Remove the Gears, Motors and Arms of the Gear Block (P.147)
B-6: How to Remove the Handset Cradle and Hook Switch Board (P.149)
