28.2. LOCATION OF OPTIONAL CARDS
28.2.1. 2-Channel Voice Message Card (KX-TE82492X)
Function
Provides 60 minutes of recording time (2 channels) for messages using the Built-in Voice Message Feature.

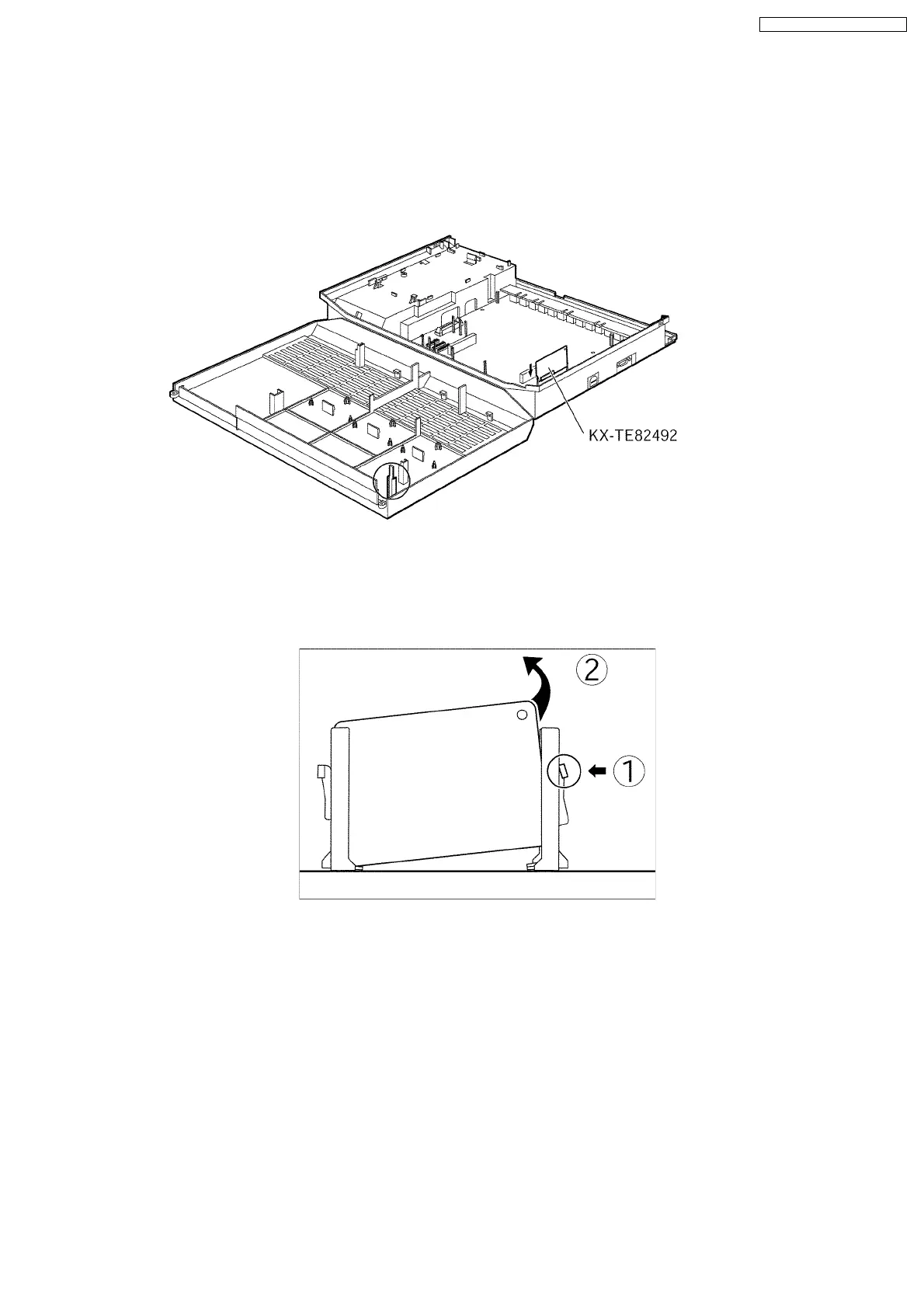

1. Loosen the screws and open the top and bottom front covers.
2. Slid the card between the guiderails until it clicks, and attach the connector to it.
Note
Use extra care to make sure you do not damage the part of the case marked with a circle.
3. Close the covers and secure the screws.
Note
To uninstall the card, follow the instructions illustrated below.
1. Push the catch on the side of one guardrail in the direction of the arrow to release it.
2. Lift the edge of the card while holding the catch open. (Do not touch the circuit board of the card during the operation.)
261
KX-TES824LA / KX-TEM824LA /
