Panasonic KX-TG2521 - Page 71

71
KX-TG2521BXT/KX-TGA251BXT

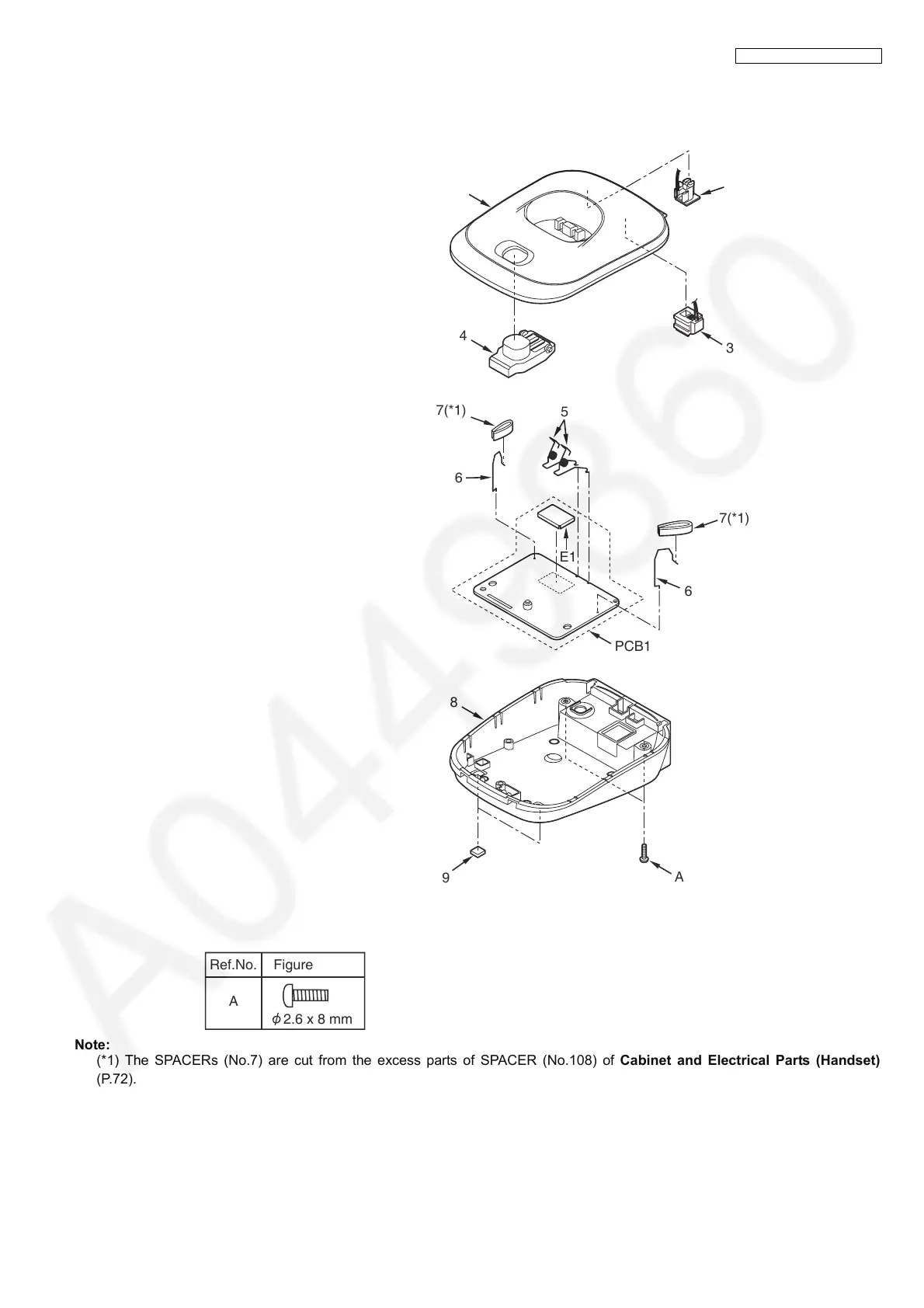

15 Exploded View and Replacement Parts List
15.1. Cabinet and Electrical Parts (Base Unit)
Note:
(*1) The SPACERs (No.7) are cut from the excess parts of SPACER (No.108) of Cabinet and Electrical Parts (Handset)
(P.72).
PCB1
E1
4
1
2
3
6
5
6
7(*1)
7(*1)
9
A
8
Ref.No. Figure
A
2.6 x 8 mm
