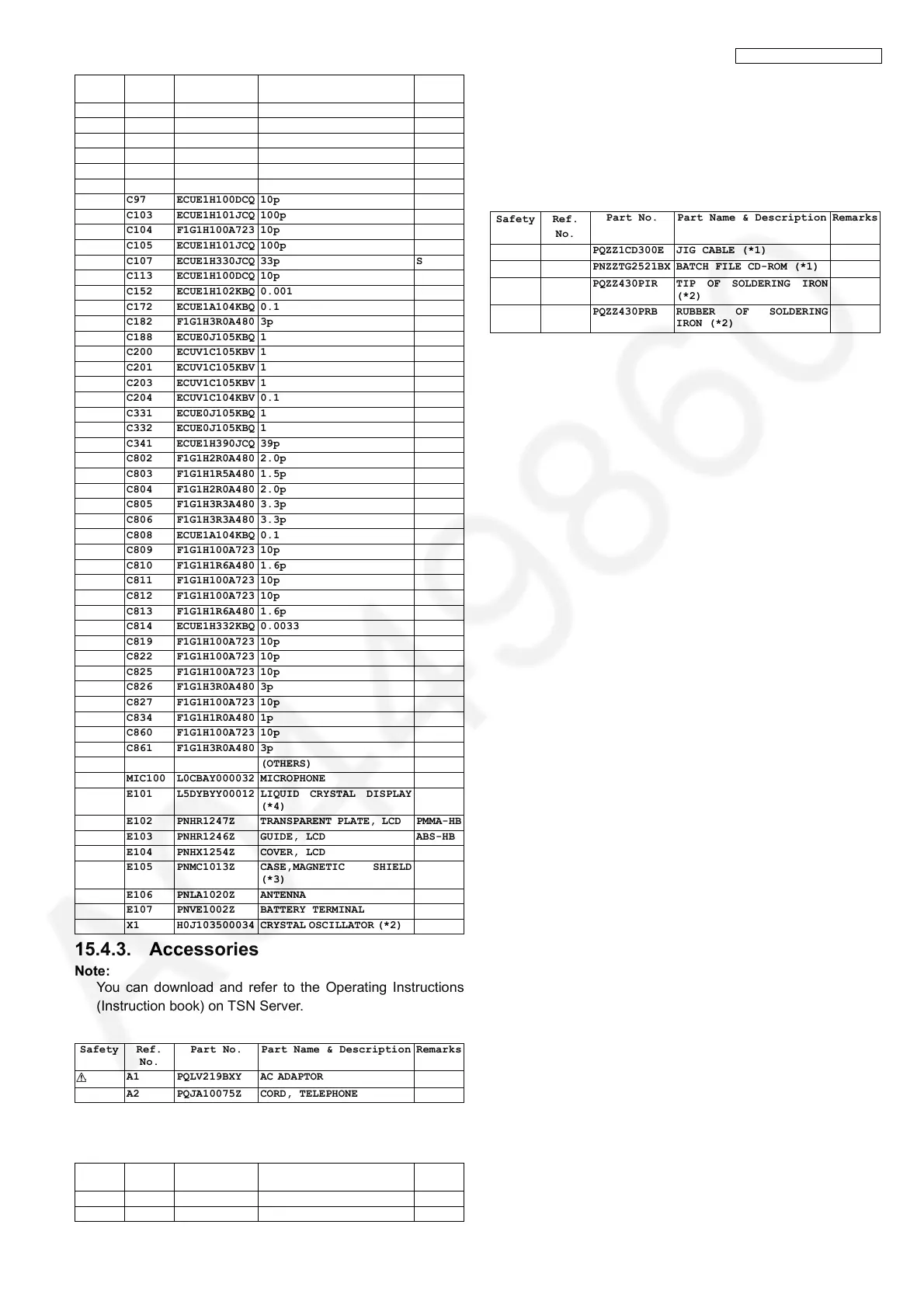

77
KX-TG2521BXT/KX-TGA251BXT
15.4.3. Accessories
Note:
You can download and refer to the Operating Instructions
(Instruction book) on TSN Server.
15.4.4. Screws
15.4.5. Fixtures and Tools
Note:
(*1) See Equipment Required (P.45), and The Setting
Method of JIG (Handset) (P.48).
(*2) When replacing the Handset LCD, See How to
Replace the Handset LCD (P.44).
Y. M
KXTG2521BXT
KXTGA251BXT
C55 ECUE1H100DCQ 10p
C72 ECUE1H100DCQ 1 0 p
C73 ECUE1H100DCQ 1 0 p
C74 ECUE1H100DCQ 10p
C75 ECUE1H100DCQ 10p
C96 ECUE1H100DCQ 10p
C97 ECUE1H100DCQ 10p
C103 ECUE1H101JCQ 100p
C104 F1G1H100A723 10p
C105 ECUE1H101JCQ 100p
C107 ECUE1H330JCQ 33p S
C113 ECUE1H100DCQ 10p
C152 ECUE1H102KBQ 0.001
C172 ECUE1A104KBQ 0.1
C182 F1G1H3R0A480 3p
C188 ECUE0J105KBQ 1
C200 ECUV1C105KBV 1
C201 ECUV1C105KBV 1
C203 ECUV1C105KBV 1
C204 ECUV1C104KBV 0.1
C331 ECUE0J105KBQ 1
C332 ECUE0J105KBQ 1
C341 ECUE1H390JCQ 39p
C802 F1G1H2R0A480 2.0p
C803 F1G1H1R5A480 1.5p
C804 F1G1H2R0A480 2.0p
C805 F1G1H3R3A480 3.3p
C806 F1G1H3R3A480 3.3p
C808 ECUE1A104KBQ 0.1
C809 F1G1H100A723 10p
C810 F1G1H1R6A480 1.6p
C811 F1G1H100A723 10p
C812 F1G1H100A723 10p
C813 F1G1H1R6A480 1.6p
C814 ECUE1H332KBQ 0.0033
C819 F1G1H100A723 10p
C822 F1G1H100A723 10p
C825 F1G1H100A723 10p
C826 F1G1H3R0A480 3p
C827 F1G1H100A723 10p
C834 F1G1H1R0A480 1p
C860 F1G1H100A723 10p
C861 F1G1H3R0A480 3p
(OTHERS)
MIC100 L0CBAY000032 MICROPHONE
E101 L5DYBYY00012 LIQUID CRYSTAL DISPLAY
(*4)
E102 PNHR1247Z TRANSPARENT PLATE, LCD PMMA-HB
E103 PNHR1246Z GUIDE, LCD ABS-HB
E104 PNHX1254Z COVER, LCD
E105 PNMC1013Z CASE,MAGNETIC SHIELD
(*3)
E106 PNLA1020Z ANTENNA
E107 PNVE1002Z BATTERY TERMINAL
X1 H0J103500034 CRYSTAL OSCILLATOR (*2)
Safety Ref.
No.
Part No. Part Name & Description Remarks
A1 PQLV219BXY A C A D A P T O R
A2 PQJA10075Z CORD, TELEPHONE
Safety Ref.
No.
Part No. Part Name & Description Remarks
A XTB26+8GFJ TAPPING SCREW
B XTB2+8GFJ TAPPING SCREW
Safety Ref.
No.
Part No. Part Name & Description Remarks
Safety Ref.
No.
Part No. Part Name & Description Remarks
PQZZ1CD300E JIG CABLE (*1)
PNZZTG2521BX BATCH FILE CD-ROM (*1)
PQZZ430PIR TIP OF SOLDERING IRON
(*2)
PQZZ430PRB RUBBER OF SOLDERING
IRON (*2)
