Handling of the laser and the line camera
Since the level of the laser and the line camera is class 1 (IEC60825-1), these are basically safe under
a normal usage pattern. In maintenance or operation, however, avoid looking directly at them.
1.Line camera
Each camera is installed at the front and the rear of the machine. When the twin tray (DT45T) is
connected with the rear of the machine, however, the camera is not installed on the tray side.
The maximum output of the LED components used in this machine is 15 mW. The line camera has
such a structure as will not expose workers directly to the LED radiation if they open its cover. For
safety’s sake, however, never open the cover of the line camera.
Item LED specifications
Manufacturer Panasonic Factory Solutions Co., Ltd.
Model number KXFK001LA00
Wavelength 850 nm
Output 5.32 mJ
Class Class 1
Emission duration 6.2 sec (Maximum)

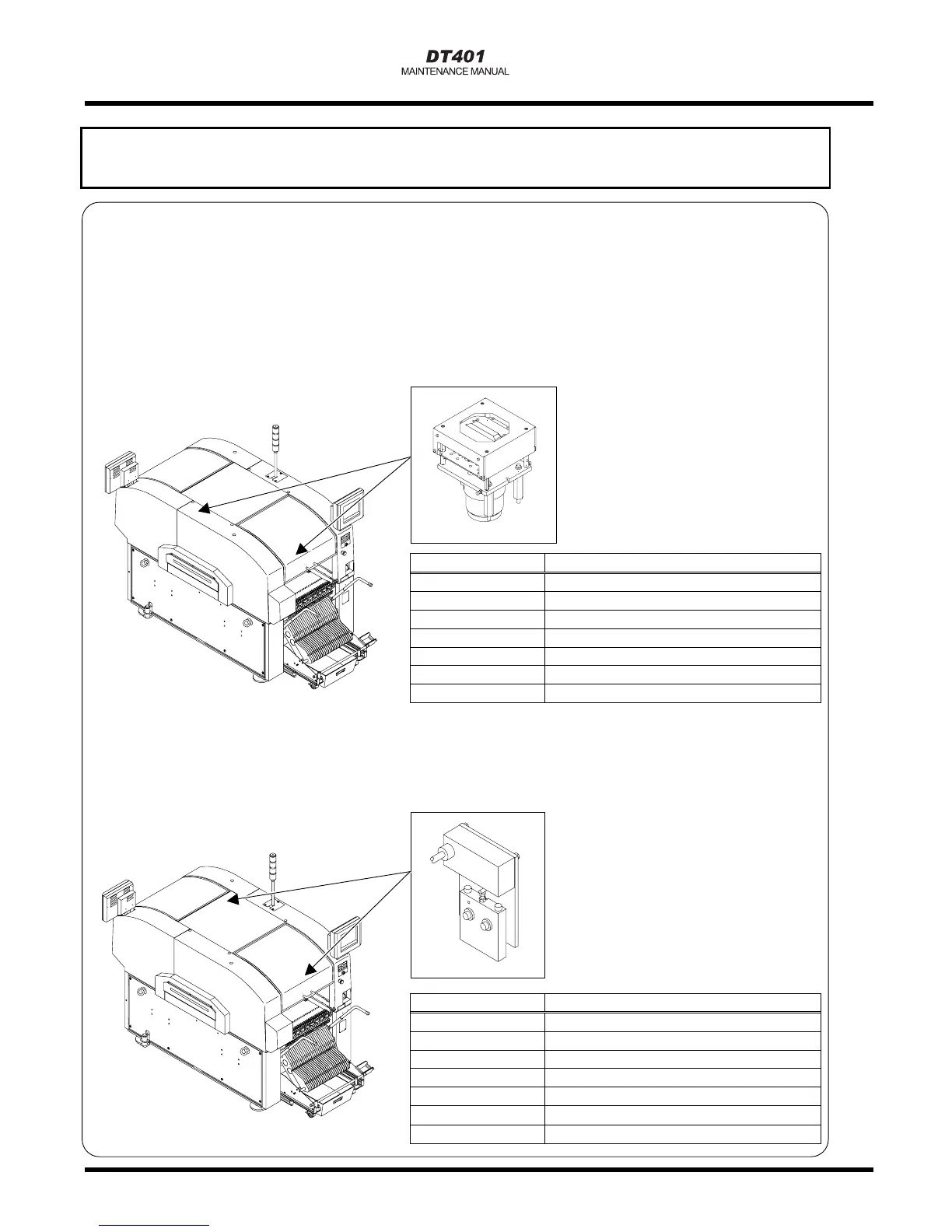

Installation location See the left figure.
2.Laser
The laser unit can be installed at the front and the rear of the machine.
This unit is optional.
The maximum output of the laser components used in the laser unit is 3 mW. The sensor head has
such a structure as will not expose workers directly to the laser radiation if they open its cover. For
safety’s sake, however, never open the cover of the sensor head.
Item Laser specifications
Manufacturer Anritsu Corporation
Model number KXF05GDAA00
Wavelength 850 nm
Output 0.061 mW
Class Class 1
Detection method
Scanning per 60
µ
second
Installation location See the left figure.
