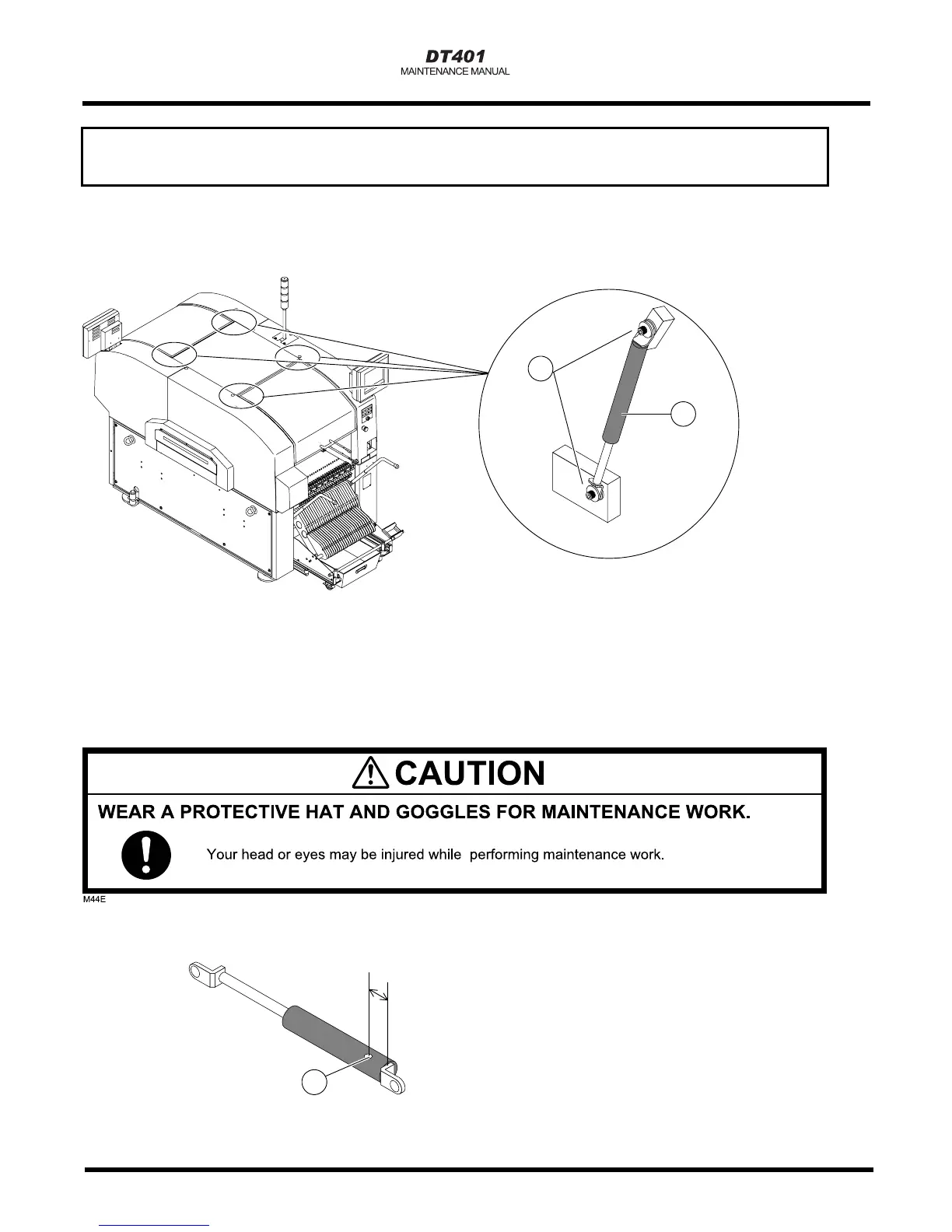

Disposing of air spring
This machine uses the air spring to open/close covers. It is very dangerous to dispose of it as it is,
because high-pressure air is sealed into it. Before disposing of it, be sure to purge the air.
Locations where the air spring is used
Removing air spring
Turn the hexagon socket head cap screw
counterclockwise and remove the spring
.
Disposing of air spring
Drill a hole
in the spring and purge the air from it completely.
Range to drill the air spring
15 mm to 20 mm
1B4C-442E
3
E64C-AC00
1D4C-406E
2
1
E64C-E-XXA00-A05-01
