ON
A
1_SL
2_SL
B
C
0
OFF

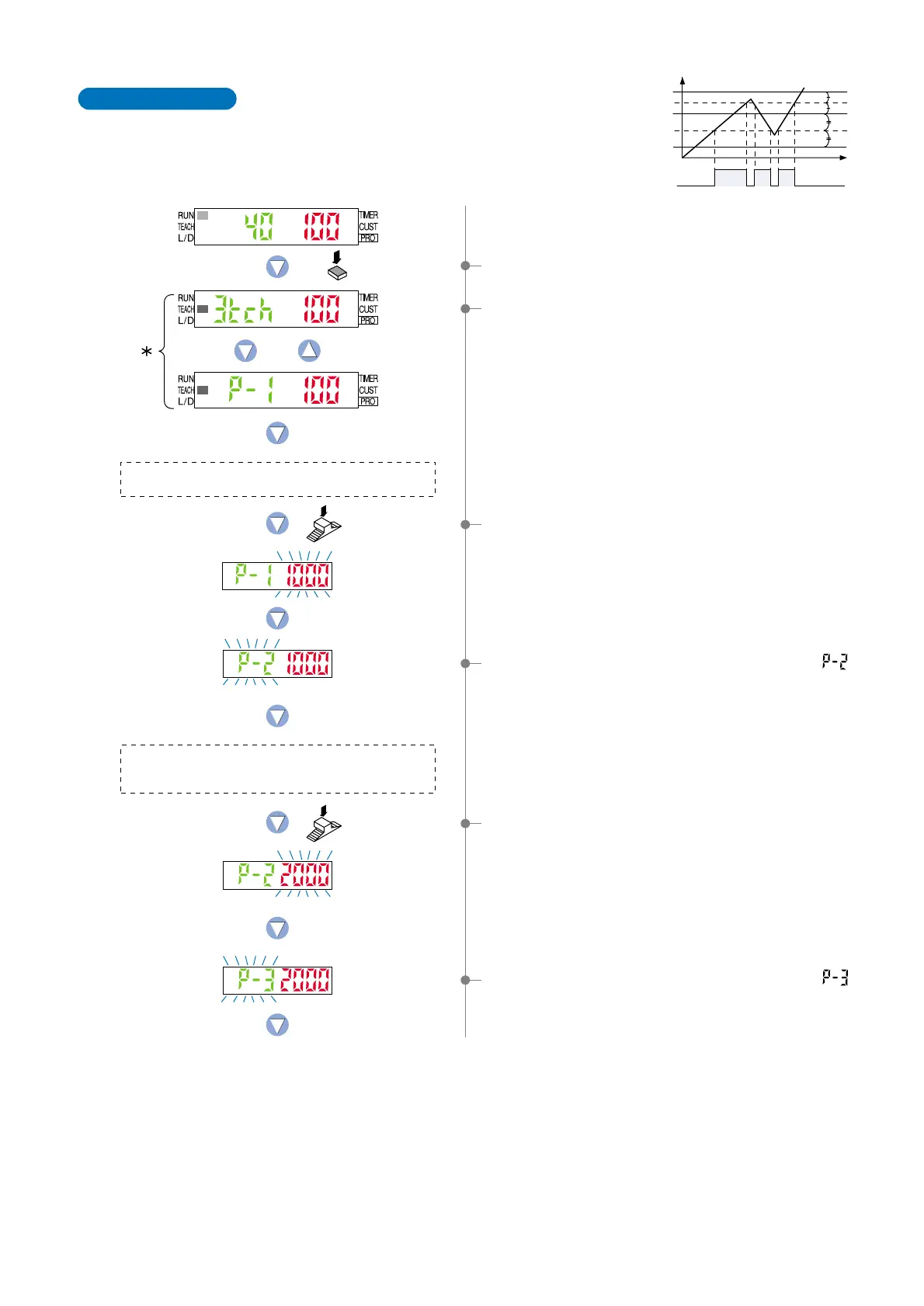

3-level Teaching
This is a method of setting the threshold range by
three levels (P-1, P-2, P-3) teaching and set the
threshold values at the middle of ‘A’ and ‘B’ (1_SL) and
‘B’ and ‘C’ (2_SL).
After teaching, P-1, P-2 and P-3 are automatically
assigned in ascending order to ‘A’, ‘B’, and ‘C’.
Time
Output
(L-ON)
Press the
MODE key once.
Blinking by turns.
Press the
Jog switch.
Press the
Jog switch.
Incident light
intensity for P-1.
Incident light
intensity for P-2.
The status condition when sensing object ‘A’ is present
that has the lowest intensity of incident light.
The status condition when sensing object ‘B’ is present
that has an incident light intensity in between that of
sensing object ‘A’ and sensing object ‘C’.
Incident light intensity
9,999
1Select ‘TEACH mode’ by pressing the [MODE key] once.
4The amplifier has entered the ‘P-2’ setting state and ‘ ’
(green) will blink.
6
The
amplifier
has entered the ‘P-3’ setting state and ‘ ’
(green) will blink.
2The current teaching method (green) and incident light
intensity (red) will be displayed and the amplifier will enter
the ‘P-1’ settting state.
3If the [Jog switch] is pressed while in the status condition
when sensing object ‘A’ is present that has the lowest
intensity of incident light, then the display will blink the
incident light intensity reading (red).
5If the [Jog switch] is pressed while in the status condition
when sensing object ‘B’ is present that has an incident light
intensity in between that of sensing object ‘A’ and sensing
object ‘C’, the display will blink the incident light intensity
reading (red).
To Next Page
