3.5. How to Define the Model Suffix (NTSC or PAL Model)
There are nine kinds of DC-GH5S (Camera body unit), regardless of the colours.
• a) DC-GH5S (Japan domestic model)
• b) DC-GH5SP/PP
• c) DC-GH5SE
• d) DC-GH5SEE
• e) DC-GH5SGN
• f) DC-GH5SGD
• g) DC-GH5SGT
• h) DC-GH5SGK
• i) DC-GH5SGA/GC/GH/GW
What is the difference is that the “Initial Settings” data which is stored in Flash-ROM mounted on Main P.C.B..

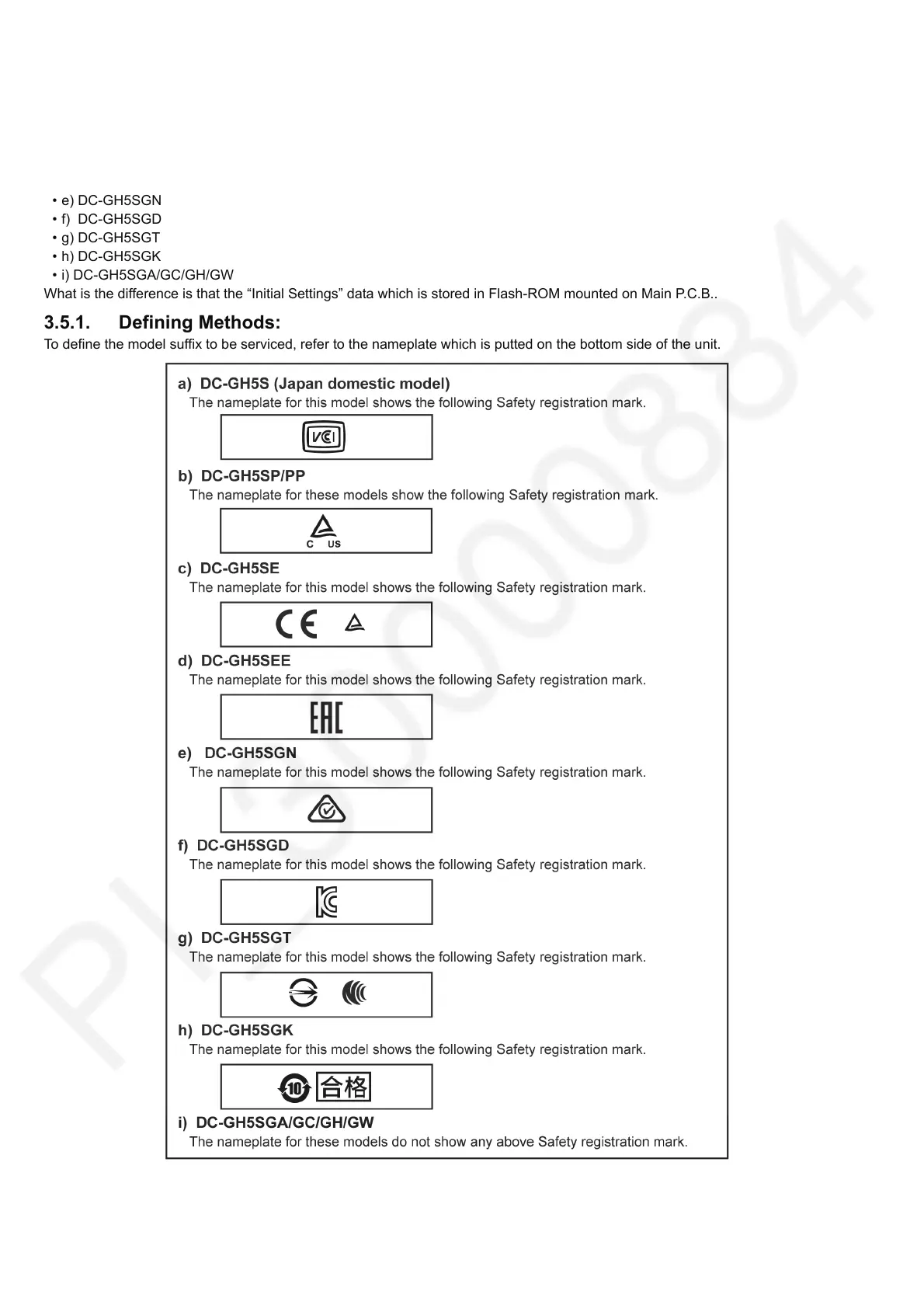

3.5.1. Defining Methods:
To define the model suffix to be serviced, refer to the nameplate which is putted on the bottom side of the unit.
NOTE:
After replacing the Main P.C.B., be sure to achieve adjustment.
Refer to the adjustment instruction in the adjustment software for details.
