Panasonic Lumix DMC-F2 Basic Operating Instructions

10
VQT2T54 (ENG)
98
4
7
5
6
3
2
1
AV OUT
DIGITAL
10
16
14
13
11
15
17
12
18

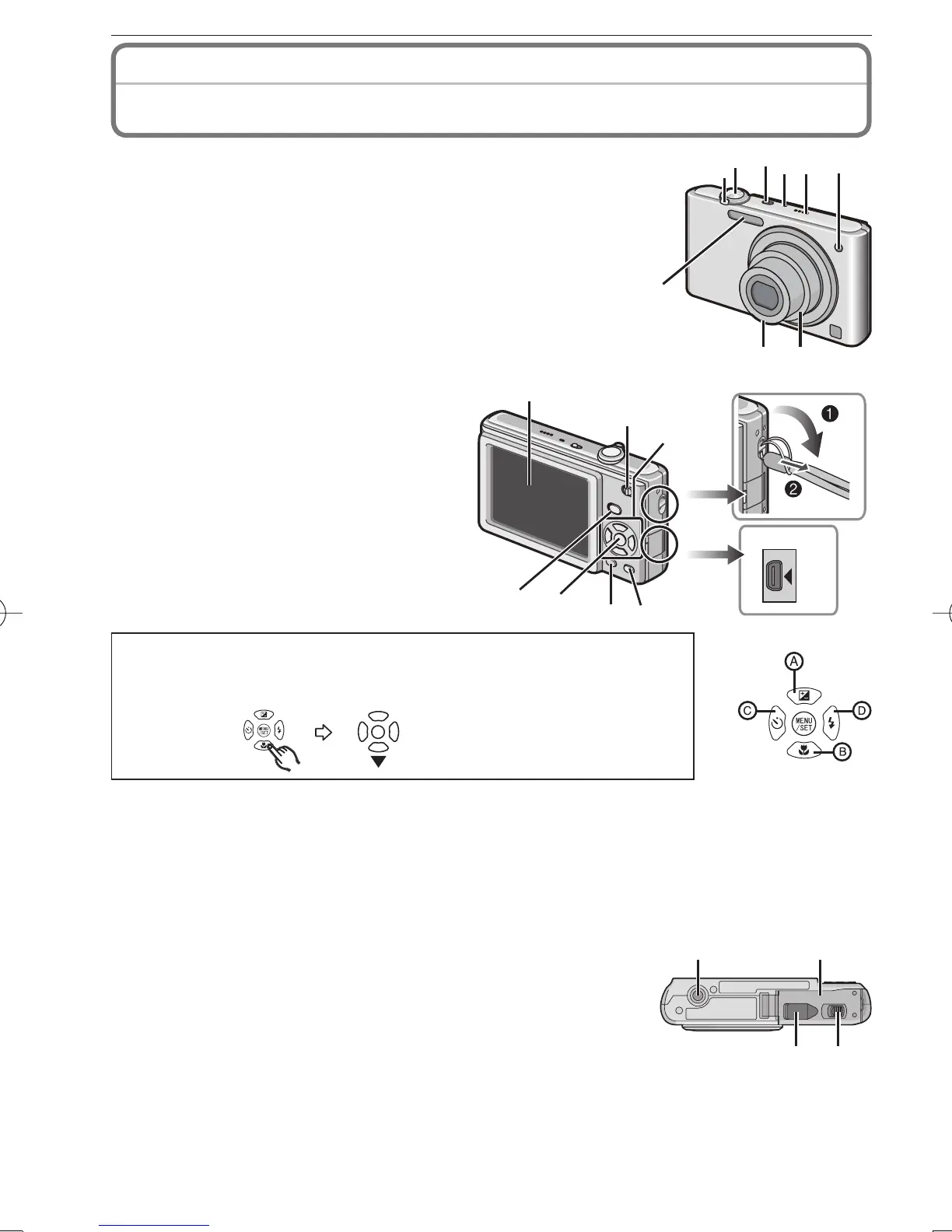

1 Zoom lever
2 Shutter button
3 Camera ON/OFF switch
4 Microphone
5 Speaker
6 Self-timer indicator
AF assist lamp
7 Flash
8 Lens part
9 Lens barrel
10 LCD monitor
11 Recording/playback switch
12 Cursor buttons
A
:
e
/Exposure compensation
B
:
r
/Macro button
C
:
w
/Self-timer button
D
:
q
/Flash mode button
In these operating instructions, operations using the cursor buttons
are described as follows.
e.g.: When you press the
r
(
p
) button.
or Press
r
19 20
21
22
13 [MODE] button
14 [MENU/SET] button
15 [DISPLAY] button
16 [Q.MENU]/Delete button
17 Hand strap eyelet
• Attach the strap when using the camera to prevent it from dropping.
18 [AV OUT/DIGITAL] socket
19 Tripod receptacle
• When you use a tripod, make sure the tripod is stable with
the camera attached to it.
20 Card/Battery door
21 DC coupler cover
• When using an AC adaptor, ensure that the Panasonic DC
coupler (DMW-DCC4; optional) and AC adaptor (DMW-
AC5E; optional) are used.
22 Release lever
Names of the Components
