Panasonic Lumix DMC-FH5 User Manual

Connecting to other equipment
- 108 -
[Playback] Mode: ¸
Playing Back Pictures on a TV Screen
(DMC-FH25) (DMC-FH5) (DMC-FH2)
•
Please use the supplied AV cable.
(DMC-FH24)
•
Please use the optional AV cable (DMW-AVC1).
Preparations:
Set the [TV Aspect]. (P39)
Turn this unit and the TV off.

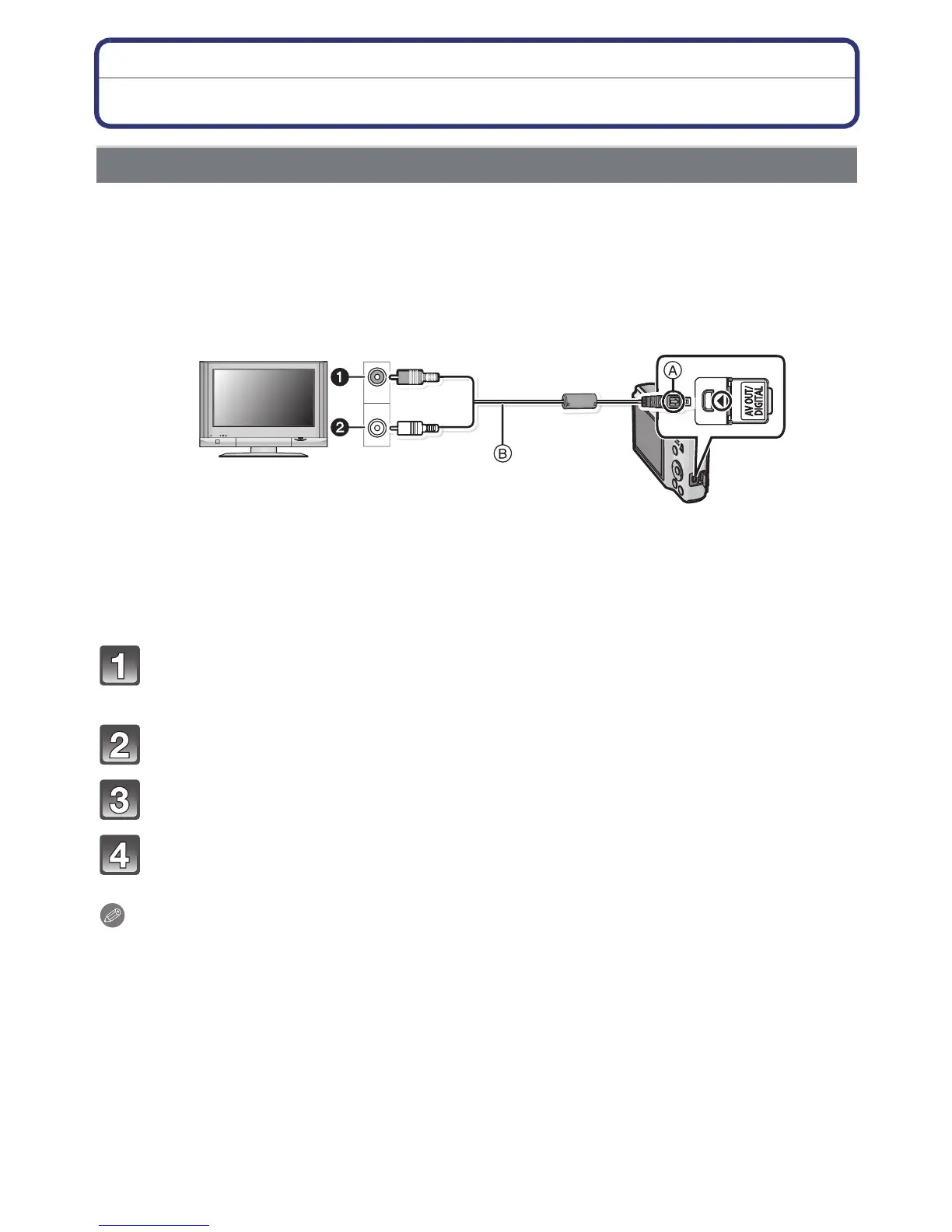

1 Yellow: to the video input socket
2 White: to the audio input socket
A Align the marks, and insert.
B AV cable
• Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may be bent out of shape which will cause a malfunction.)
Connect the AV cable to the video input and the audio input sockets
on the TV.
Connect the AV cable to the [AV OUT] socket on the camera.
Turn the TV on and select external input.
Turn the camera on and then slide the [Rec]/[Playback] selector
switch to [(].
Note
•
Depending on the [Picture Size], black bands may be displayed on the top and bottom or the
left and right of the pictures.
• (DMC-FH25) (DMC-FH5) (DMC-FH2)
Do not use any other AV cables except the supplied one.
• (DMC-FH24)
Do not use any other cables except a genuine Panasonic AV cable (DMW-AVC1; optional).
• Read the operating instructions for the TV.
• When you play back a picture vertically, it may be blurry.
• You can view pictures on TVs in other countries (regions) which use the NTSC or PAL system
when you set [Video Out] in the [Setup] menu.
(PAL video out is not available on the version DMC-FH25P/DMC-FH24P/DMC-FH5P/DMC-FH2P
sold in the U.S. and the version DMC-FH25PC/DMC-FH5PC/DMC-FH2PC sold in Canada.)
• Change the screen mode on your TV if the picture is displayed with the top or bottom cut off.
Playing back pictures using the AV cable

Panasonic Lumix DMC-FH5 Specifications

General

Megapixel	16.1 MP
Camera type	Compact camera
Sensor type	-
Image stabilizer	Yes
Total megapixels	16.6 MP
Image sensor size	1/2.33 \
Image formats supported	JPG
Supported aspect ratios	3:2, 4:3, 16:9
Maximum image resolution	4608 x 3456 pixels
Still image resolution(s)	640 x 480, 2048 x 1536, 2560 x 1920, 3648 x 2736, 4608 x 2592, 4608 x 3072, 4608 x 3456
Optical zoom	4 x
Combined zoom	36 x
Extra/Smart zoom	5 x
Focal length range	5 - 20 mm
Interface	USB
Video out	AV
Aperture range (F-F)	3.1 - 6.5
Camera shutter speed	8 - 1/1600 s
Focal length (35mm film equivalent)	28 - 112 mm
Focus adjustment	Auto
Normal focusing range	0.5 m
Macro focusing range (tele)	1 m
Macro focusing range (wide)	0.05 m
Normal focusing range (tele)	1 - ∞ m
Normal focusing range (wide)	0.5 - ∞ m
ISO sensitivity	100, 200, 400, 800, 1600, 6400
Light exposure modes	Manual
Light exposure control	Program AE
Light exposure correction	± 2EV (1/3EV step)
Camera shutter type	Electronic
Camera shutter interval	1.1 s
Flash modes	Auto, Forced off, Forced on, Red-eye reduction, Slow synchronization
Flash range (tele)	1 - 1.6 m
Flash range (wide)	0.4 - 3.3 m
Scene modes	Candlelight, Night, Party (indoor), Portrait, Sports, Sunset
Image editing	Resizing, Trimming
Photo effects	Black&White, Sepia, Vivid
White balance	Auto, Cloudy, Daylight, Sunny
Camera playback	Single image, Slide show
Self-timer delay	2, 10 s
On Screen Display (OSD) languages	ENG, ESP
Video resolutions	320 x 240, 640 x 480, 1280 x 720 pixels
Motion JPEG frame rate	30 fps
Video formats supported	M-JPEG
Maximum video resolution	1280 x 720 pixels
Memory slots	1
Internal memory	70 MB
Compatible memory cards	SD, SDHC, SDXC
Field of view	100 %
Display diagonal	2.7 \
Display resolution (numeric)	230000 pixels
USB version	2.0
Product color	Gold
Battery voltage	3.6 V
Battery capacity	660 mAh
Cables included	AV, USB

Weight and Dimensions

Depth	17.78 mm
Width	93.98 mm
Height	53.54 mm
Weight	104 g
Weight (including battery)	121 g
