Preparation
10
VQT0Y69
Names of the
Components

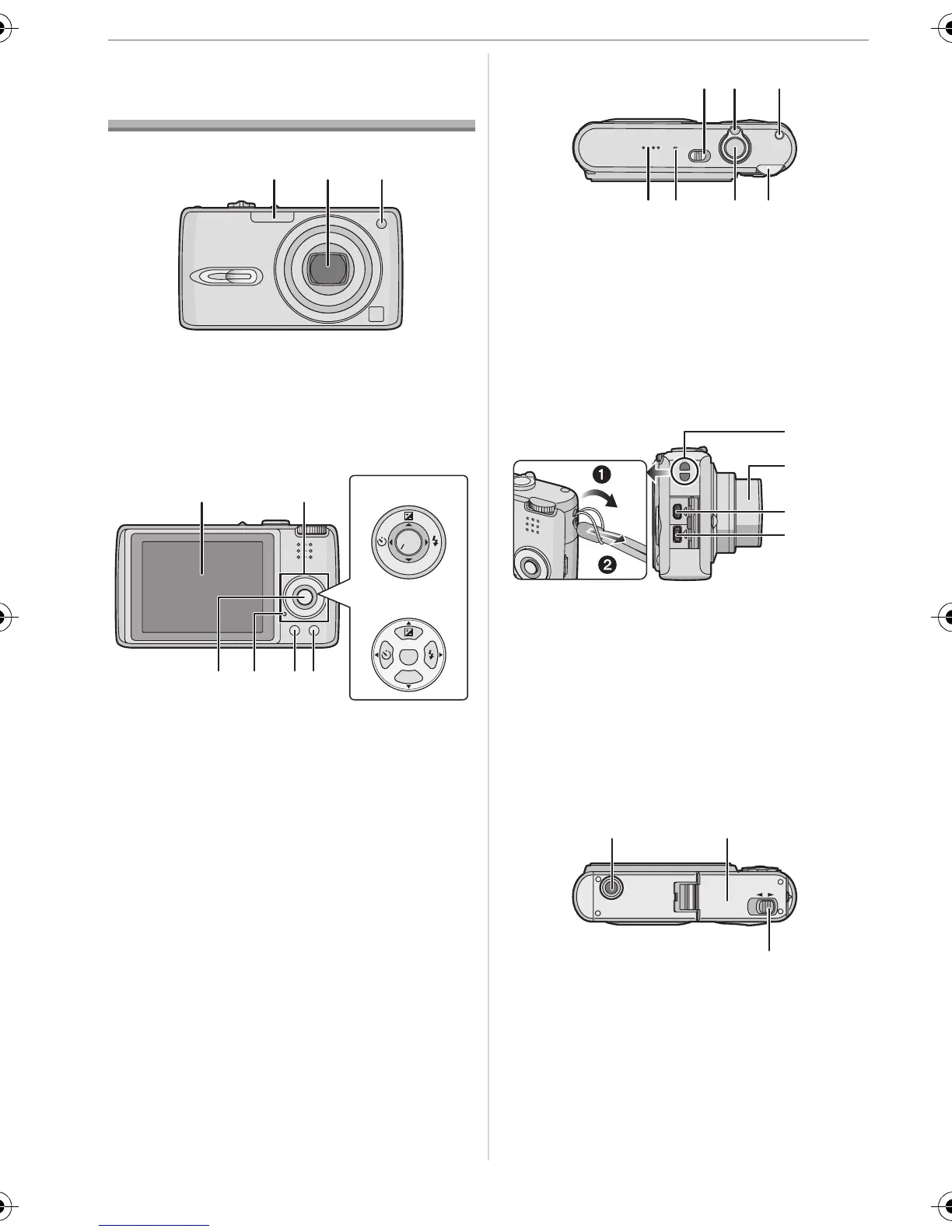

1 Flash (P39)
2 Lens (P4)
3 Self-timer indicator (P43)
AF assist lamp (P77)
4 LCD monitor (P36, 99)
5 Cursor buttons
2/Self-timer button (P43)
4/[REV] button (P32)
1/Flash setting button (P39)
3/Exposure compensation (P44)/Auto
bracket (P45)/White balance fine
adjustment (P71)/Backlight
compensation in simple mode (P28)
button
6 [MENU/SET] button (P19)
7 Status indicator (P13)
8 [DISPLAY/LCD MODE] button
(P36, 38)
9 Single or burst mode (P47)/
Delete (P34) button
10 Camera ON/OFF switch (P11, 18)
11 Zoom lever (P29)
12 Optical image stabilizer button (P46)
13 Speaker (P68)
14 Microphone (P63, 75, 85)
15 Shutter button (P24, 63)
16 Mode dial (P6)
17 Strap eyelet
18 Lens barrel
19 [DIGITAL/AV OUT] socket (P91, 94, 98)
20 [DC IN] socket (P91, 94)
• Always use a genuine Panasonic AC
adaptor (DMW-AC5; optional).
• This camera cannot charge the battery
even though the AC adaptor
(DMW-AC5; optional) is connected to it.
21 Tripod receptacle
• When you use a tripod, make sure the
tripod is stable when the camera is
attached to it.
22 Card/Battery door (P14, 15)
23 Release lever (P14, 15)
123
54
896
7
DMC-FX3
DMC-FX07
REV
MENU
SET
MENU
SET
REV
10
13
11
14 15 16
12
DIGITAL
AV OUT
DC IN
17
18
19
20
OPEN LOCK
21 22
23
