28

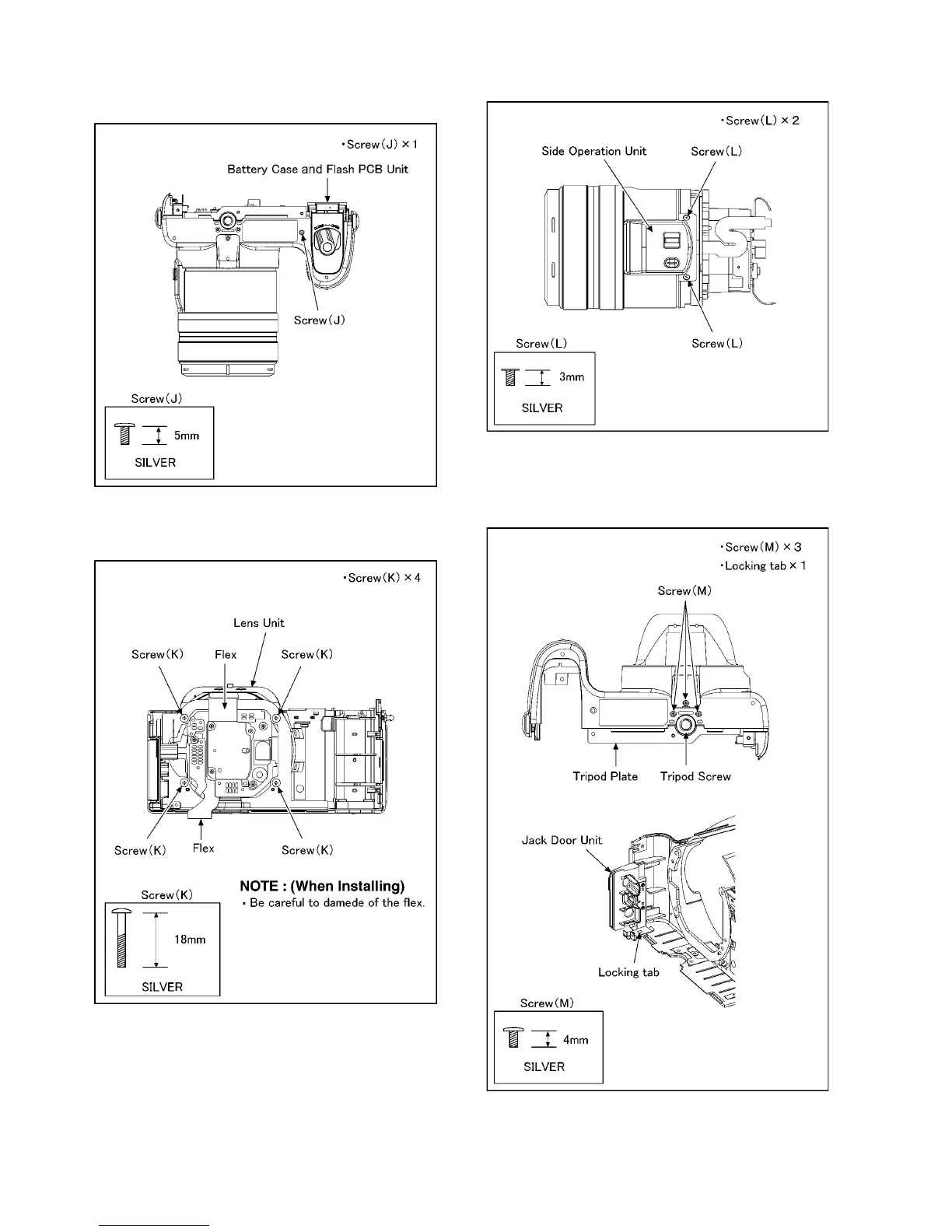

8.3.6.
Removal of the Battery Case and
Flash PCB Unit
Fig. D8
8.3.7.
Removal of the Lens Unit
Fig. D9
8.3.8.
Removal of the Side Operation Unit
Fig. D10
8.3.9.
Removal of the T
ripod Plate, T
ripod
Screw and Jack Door Unit
Fig. D1
1
27
29
Table of Contents
Table of Contents
2
Default Chapter
1
Digital Camera
1
1 Safety Precaution
3
General Guidelines
3
Leakage Current Cold Check
3
Leakage Current Hot Check (See Figure 1.)
3
How to Discharge the Capacitor on Flash PCB
4
2 Warning
5
Prevention of Electro Static Discharge (ESD) to Electrostaticallysensitive (ES) Devices
5
How to Recycle the Lithium Ion Battery (U.S. Only)
5
Caution for AC Cord(for EB/GC
6
How to Replace the Lithium Battery
7
3 Service Navigation
9
Introduction
9
About Lead Free Solder (Pbf)
9
Important Notice 1:(Other than U.S.A. and Canadian Market)
9
How to Define the Model Suffix (NTSC or PAL Model)
10
Initial Settings
11
4 Specifications
12
5 Location of Controls and Components
13
6 Service Mode
16
Error Code Memory Function
16
Confirmation of Firmware Version
19
7 Service Fixture & Tools
20
Service Fixture and Tools
20
When Replacing the Main PCB
21
Service Position
21
8 Disassembly and Assembly Instructions
23
Disassembly Flow Chart
23
PCB Location
23
Disassembly Procedure
24
Disassembly Procedure for the Lens
34
Assembly Procedure for the Lens
38
Removal of the CCD
44
9 Measurements and Adjustments
45
Adjustment Procedures
45
10 Maintenace
45
Cleaning Lens, Viewfinder and LCD Panel
45
Diagrams and Replacement
46
S2. Block Diagram
47
S2.1. Overall Block Diagram
47
S2.2. System Control Block Diagram
48
S2.3. Video/Audio Process Block Diagram
49
S2.4. Sensor Block Diagram
50
S2.5. Lens Drive Block Diagram
51
S2.6. Power Block Diagram
52
S3. Schematic Diagrams
53
S3.1. Interconnection Diagram
53
S3.2. Flash Schematic Diagrams
54
S3.3. Lcd if Flex Schematic Diagrams
55
S3.5. CCD Flex Schematic Diagrams
56
S3.7. Lens Flex Schematic Diagrams
57
S4. Print Circuit Board
58
S4.1. Flash P.C.b
58
S4.2. Lcd if P.C.b
59
S4.4. CCD Flex
60
S4.5. MIC Flex
61
S5. Replacement Parts List
62
S6. Exploded Views
68
S6.1. Frame & Casing Section (1
68
S6.2. Frame & Casing Section (2
69
S6.3. Frame & Casing Section (3
70
S6.4. Packing Parts & Accessories Section
71
