Panasonic Lumix DMC-FZ30PP Service Manual

S-2

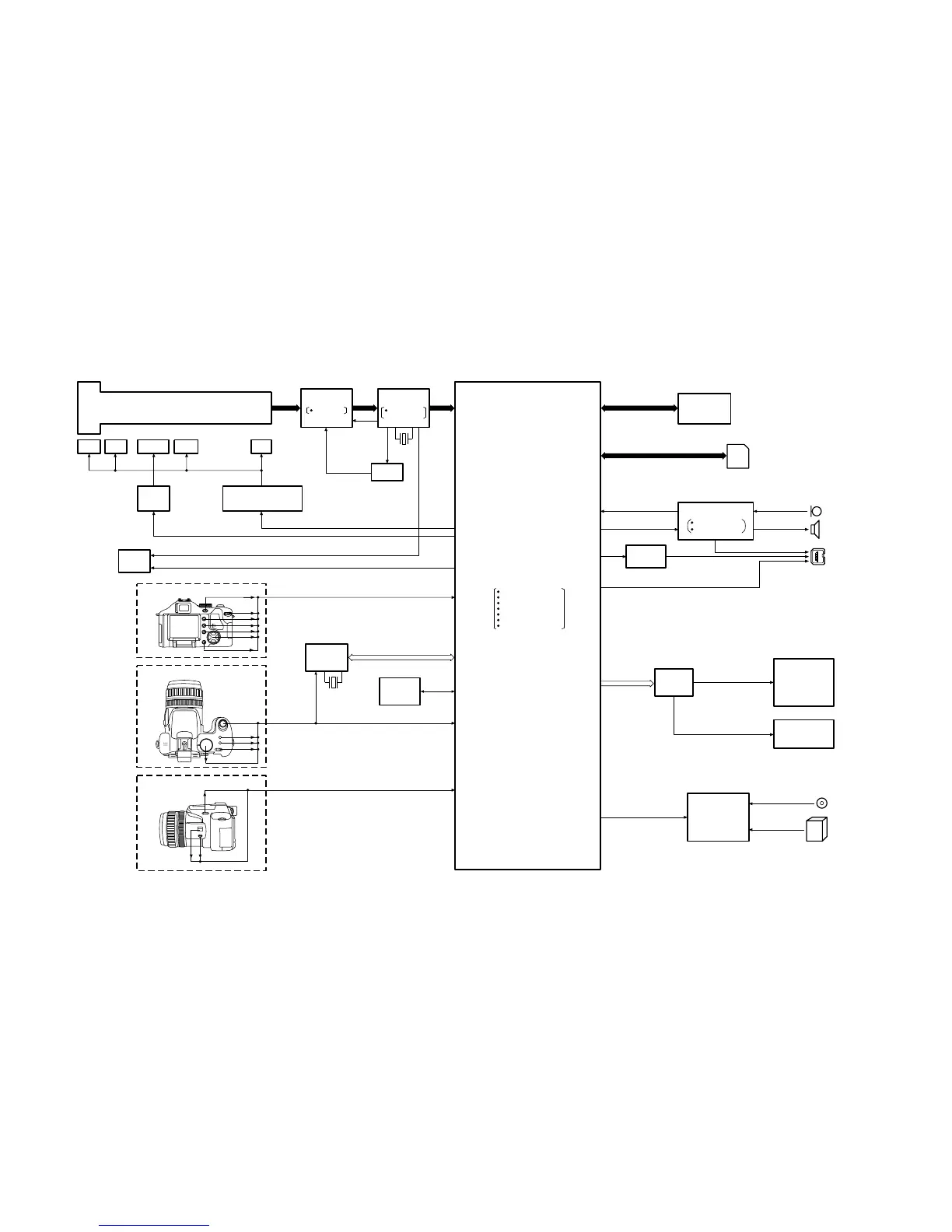

S2. BLOCK DIAGRAM
S2.1. OVERALL BLOCK DIAGRAM
DMC-FZ30
OVERALL BLOCK
DIAGRAM
IC3101
CCD
8 MEGA PIX
IC3002
PRE PROCESS
IC3001
V-DRIVE
FOCUSZOOM
CDS,AGC,A/D,
TG
IC6003
SDRAM/256Mbit
SD
CARD
IC5001
AUDIO ANALOG
MICROPHONE AMP
SPEAKER CONTROL
MICROPHONE
SPEAKER
IC4001
LCD DRIVE
COLOR LCD
PANEL
(2.0" PANEL)
(POWER SUPPLY)
DC JACK
BATTERY
REAR OPERATION UNIT
IC2001
VIDEO OUT
SHUTTER
OIS
UNIT
IC7202
SHUTTER
DRIVE
IC7002
AF/ZOOM,IRIS DRIVE,
OIS DRIVE&PRE PROCESS
IC6001
VENUS2
CAMERA PROCESS
J-PEG COMP/EX PANDS
MEDIA I/F
USB I/F
MAIN MICROPROCESSOR
FLASH
TOP OPERATION UNIT
EVF MONITOR
X9101
(32.768KHz)
IC1001
POWER
IC9101
SYSTEM IC
IC6002
FLASH ROM/
16Mbit
OIS CONTROL
LENS DRIVE
DIGITAL/ AV OUT
IRIS
X3001
(33.7MHz)
SIDE OPERATION UNIT
