9 Measurements and Adjustments
9.1. Adjustment Procedures
Even if the MAIN PCB is replaced as a unit, it must be achieved the adjustment and factory setting. The adjustment in this
unit is separated two types as shown below.
The adjustment instruction is available at "Software download" on the "Support Information from NWBG-PAVC" web-site
in "TSN System".
1. Main unit adjustment: All adjustments except for LCD and EVF adjustment.
This unit mounts the adjustment software for main unit, it wouldn’t need the connection between the PC and this unit with USB
cable.

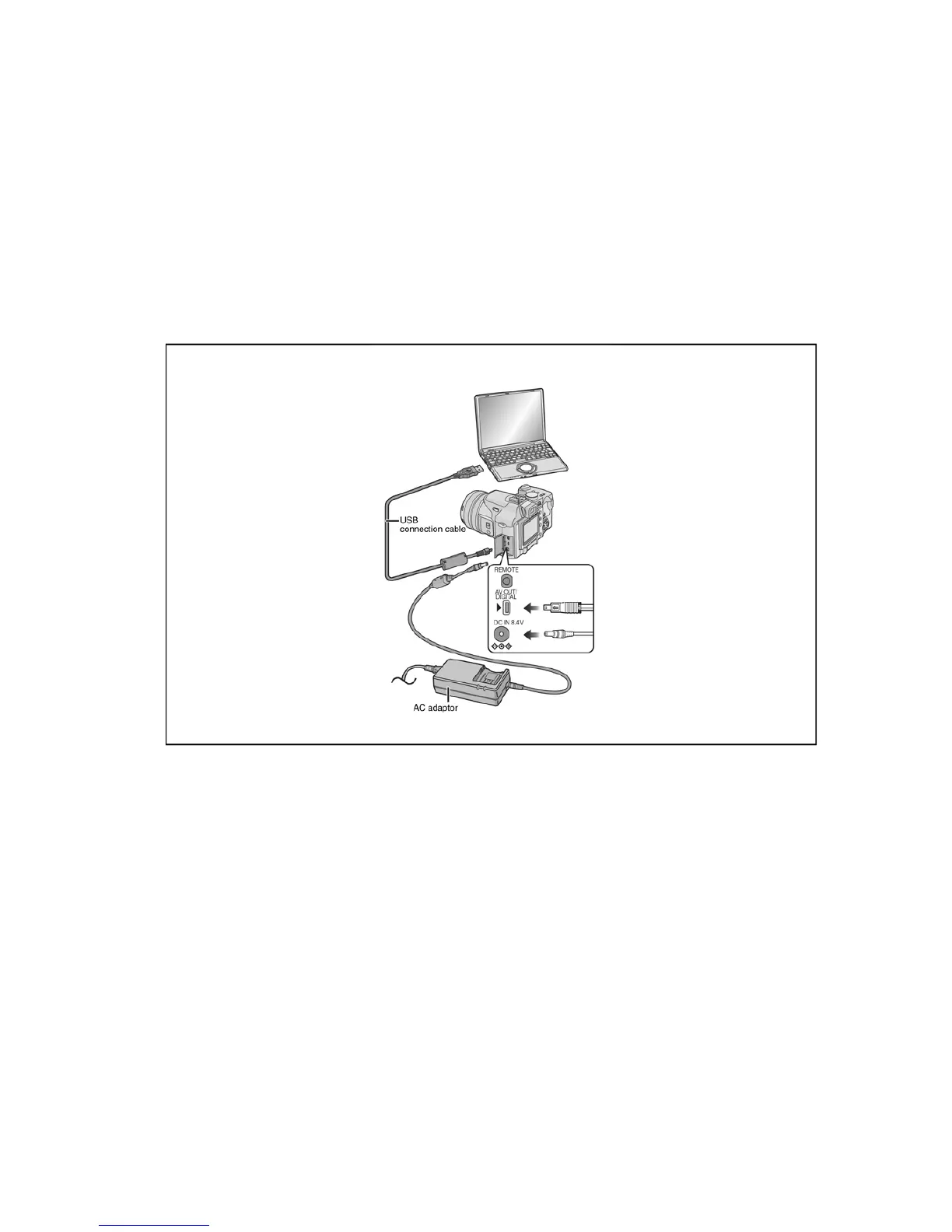

2. LCD and EVF adjustment: Adjustment for LCD and EVF.
It need the connection between the PC and this unit with USB cable.
The adjustment instruction is available at "Software download" on the "Support Information from NWBG-PAVC" web-site in
"TSN System", together with maintenance software.
10 Maintenace
10.1. Cleaning Lens, Viewfinder and LCD Panel
Do not touch the surface of lens, Viewfinder and LCD Panel with your hand.
When cleaning the lens, use air-Blower to blow off the dust.
When cleaning the LCD Panel, dampen the lens cleaning paper with lens cleaner, and the gently wipe the their surface.
Note:
A lens cleaning paper and lens cleaner are available at local camera shops and market place.
