18
• Step 4. Display the INITIAL SETTING:
While pressing [ MENU/SET ] button and “[ RIGHT ] of Cursor buttons” simultaneously, turn the Power off.

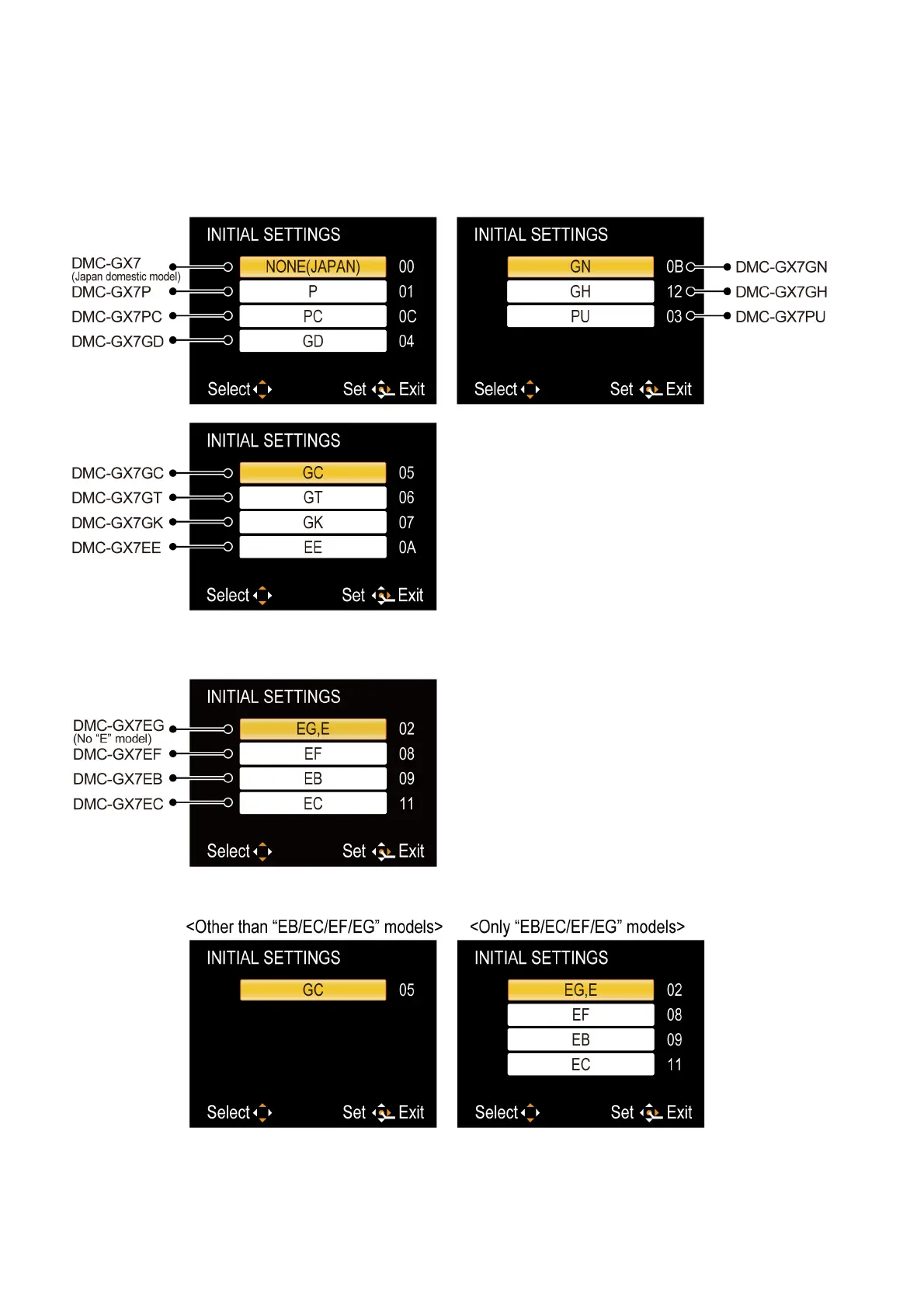

The “INTIAL SETTINGS” menu is displayed.
There are two kinds of “INITIAL SETTINGS” menu form as follows:
[ CASE 1. After replacing the Main P.C.B. and/or Flash-ROM ]
[ Except “EB/EC/EF and EG” models : VEP56185A is used as a Main P.C.B. ]
When Main P.C.B. has just been replaced, 11 model suffixes are displayed as follows. (three pages in total)
[Only “EB/EC/EF and EG” models : (VEP56185B is used as a Main P.C.B.)]
When Main P.C.B. has just been replaced, only 4 model suffixes are displayed as follows.
[CASE 2. Other than “After replacing the Main P.C.B. and/or Flash-ROM”]
To Next Page
