11 Maintenance
11.1. Notice in external cleaning
11.1.1. ABOUT THE BODY
NOTE:
Before cleaning the camera, remove the battery and/or disconnect power plug from the outlet.
Also, remove the memory card and lens unit.
11.1.1.1. DUST/DIRT ON THE OUTER CASING PART (S)
1. Blow off the dust first, then sweep out the dust from narrower spaces with soft cleaning brush.
2. Wipe up fingerprint and/or dirt on the Outer casing part with the dry fuzz-free cloth.
11.1.1.2. DUST/DIRT ON THE IMAGE SENSOR

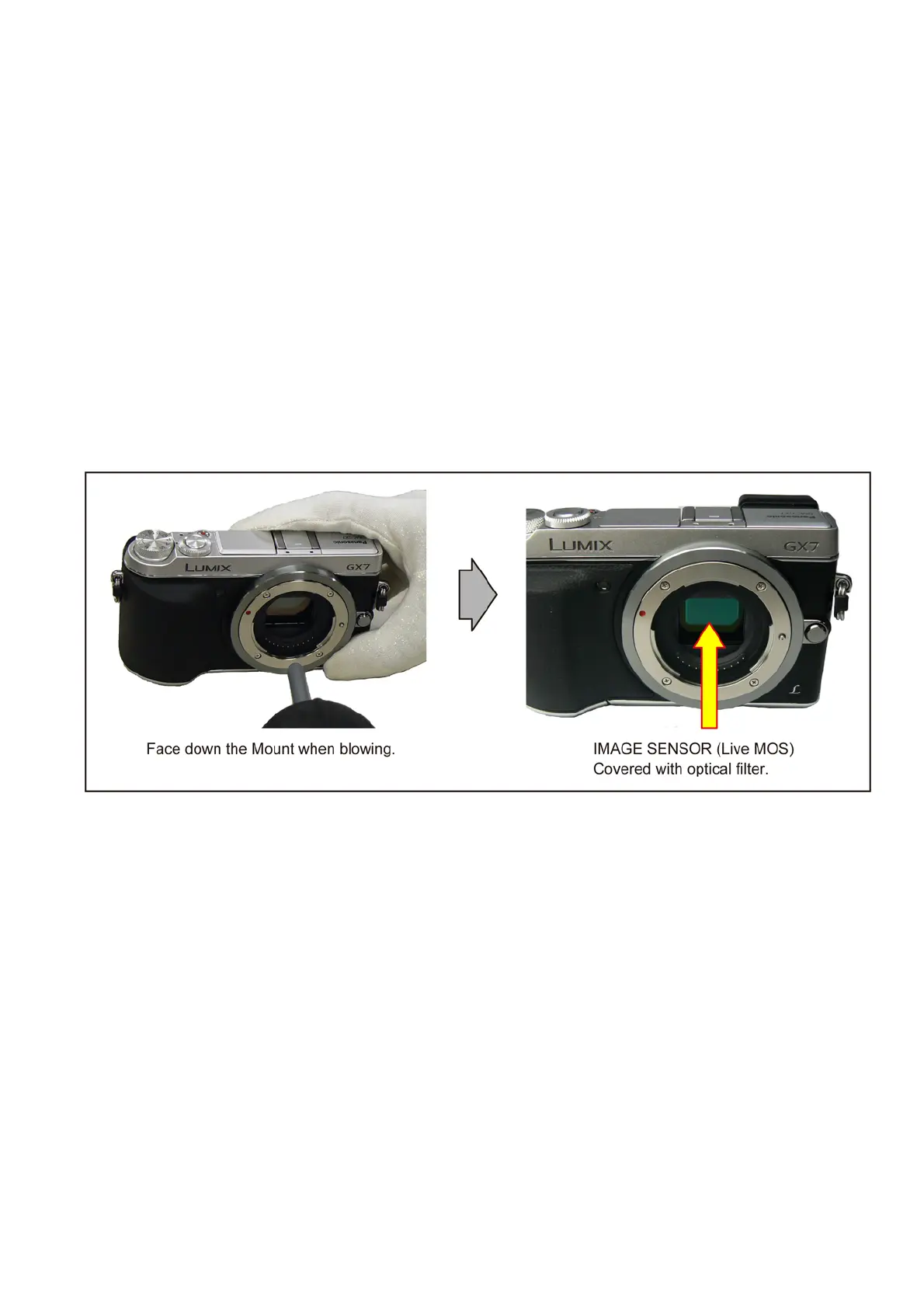

1. Blow off the dust on the surface of the Image sensor with the Blower. (Refer to the following Figure.)
• Keep the Mount Facing down condition towards to floor when cleaning.
• Do not put the Blower further inside than the lens mount.
• Be careful not to blow too strongly.
2. Wipe off the dirt on the image sensor surface with Lens cleaning KIT(BK)(VFK1900BK).
11.1.1.3. ABOUT THE LVF UNIT
[PROCEDURES]
1. Refer to the “Disassembly & Assembly Instructions” and disassemble the LVF Unit.
2. Blow off the dust of LVF Lens Unit with a blower.
3. Wipe off the dirt on the surface of glasses with Lens Cleaning KIT (VFK1900BK), if necessary.
11.1.2. ABOUT THE LENS
Please refer to the following service manuals about Maintenance of bundled lenses.
• H-H020APP/E/GK: Order No.DSC1307028CE
• H-FS1442APP/E/GK: Order No.DSC1302014CE
