*3 NOTE: (When AWB adjustment)
• After change to WB adjustment mode for service with software, the adjustment is executed.
After adjusting the AWB adjustment, to cancel the WB adjustment mode for service.
• Details, refer to the instructions in the adjustment software.
*4 NOTE: (About the G sensor adjustment)
• Offset adjustment for built in electronic level (tilt sensor).
Refer to the adjustment instruction in the adjustment software for details.
*5 NOTE: (About the Gyro DC offset adjustment)
• Gyro DC offset adjustment for BIS.
Refer to the adjustment instruction in the adjustment software for details.
*6 NOTE: (About mount box unit adjustment data writing)
• After exchange mount box unit for service, write data on the label of body cap.
Refer to the adjustment instruction in the adjustment software for details.
*7 NOTE: (About BIS adjustment data writing)
• In the case that Flash-ROM data backup can’t be proceed before replacing Main P.C.B. or Flash-ROM, get BIS offset data from
web site for service and write it into Flash-ROM.
If mount box unit is replaced with Main P.C.B. or Flash-ROM and data on the label of body cap is written into Flash-ROM, it’s
unnecessary to write BIS offset data.
Refer to the adjustment instruction in the adjustment software for details.
*8 NOTE: (About mount box unit readjustment)
• In the case that Flash-ROM data backup can’t be proceed before replacing Main P.C.B. or Flash-ROM, readjust mount box unit.
*9 NOTE: ( AVCHD function inspection)
• Confirm self recording/playback motion picture of AVCHD mode by the LCD.

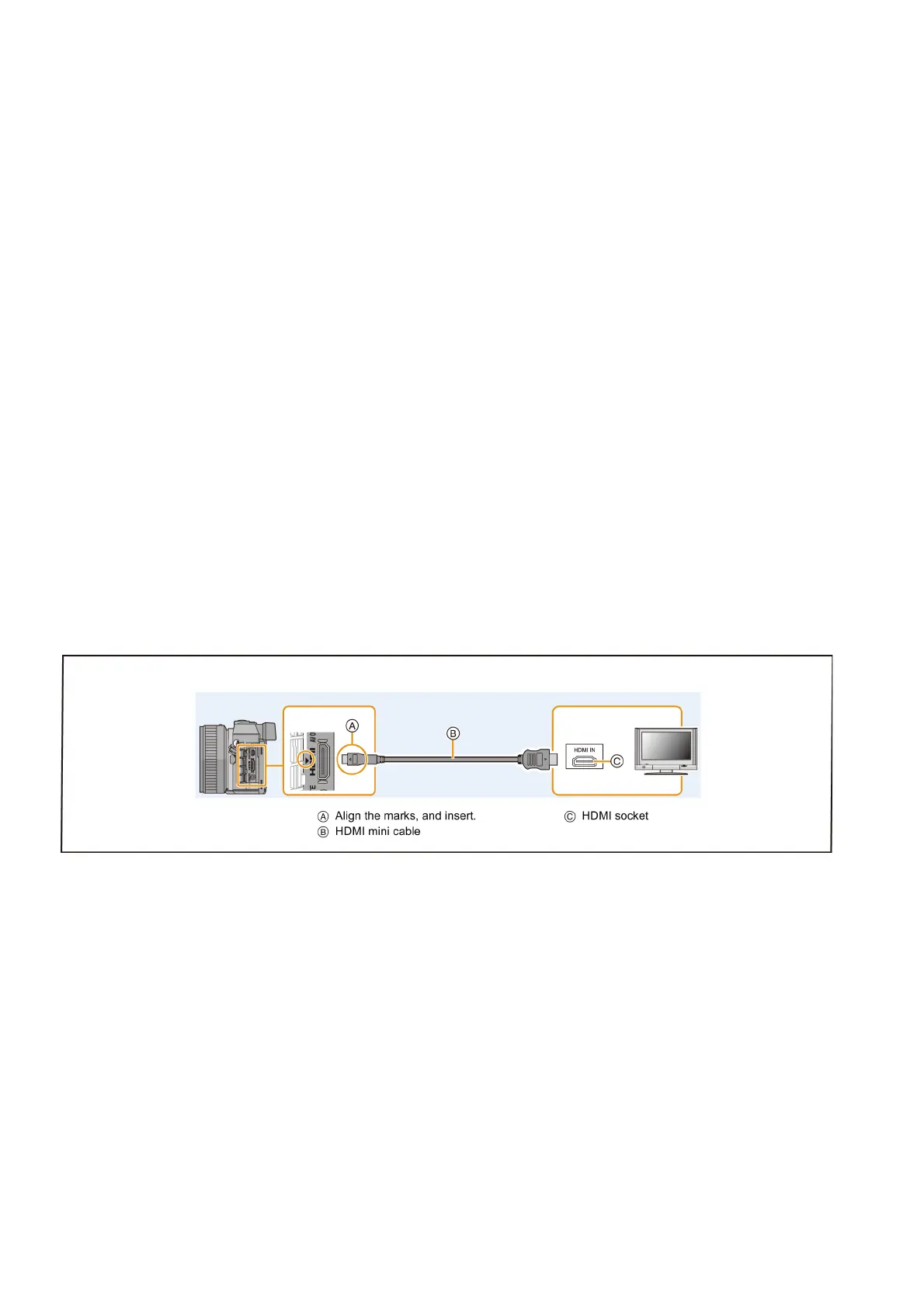

• Confirm it on the TV with HDMI socket when repair HDMI relation.
* There are no LCD adjustment model.
*10 NOTE: (Initialization data of NFC)
Make sure to perform the following procedure (from 1 to 4).
*NFC IC and MAIN P.C.B. have no initialization data.
So, make sure to perform Initial Setting of NFC.
*NFC IC may lose the initialization data due to heat during repair process.
Therefore, make sure to perform Initial Setting of NFC when the component parts on MAIN P.C.B. are replaced.
1.After inserting a memory card, release the Initial Settings.
2.After selecting [ MENU ]→[ Setup ]→[ ROM BACKUP ]→[ NFC RESET ], turn off. Then, turn on again.
3.Switch [ NFC Operation ] to [ ON ].([ MENU ]→[ Setup ]→[ Wi-Fi ]→[ Wi-Fi Setup ]→[ NFC Operation ])
*If [ NFC Operation ] is [ ON ], change it to [ OFF ] once. Then, change it to [ ON ].
4.Perform the Initial Settings operation.(Refer to 3.6.2. INITIAL SETTINGS.)
*The default setting of [ NFC Operation ] is [ ON ].
About the 3D interchangeable lens (H-FT012) correspondence
This unit has no special structure (circuit or part) for the 3D interchangeable lens correspondence, only by software is processed
the 3D interchangeable lens correspondence.
Therefore, if taken with other lenses as usual, the 3D interchangeable lens is no problem for operation.
