8.3. Service Position

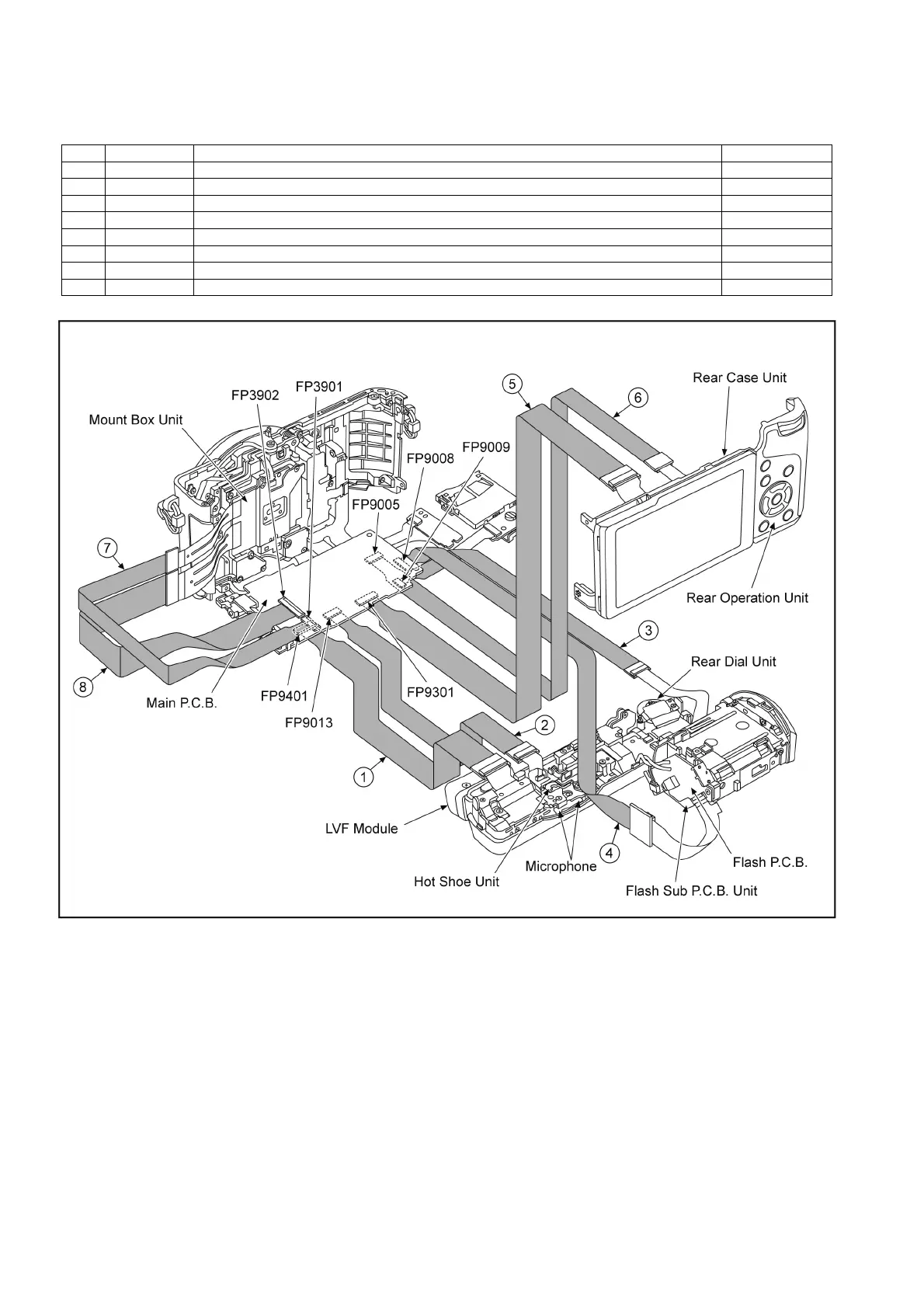

This Service Position is used for checking and replacing parts. Use the following Extension cables for servicing.
Table S1 Extension Cable List
CAUTION. (When servicing Flash Sub P.C.B. Unit.)
1. Be sure to discharge the E.Capacitor on Flash Sub P.C.B. Unit.
Refer to “How to Discharge the E.Capacitor on Flash Sub P.C.B. Unit”.
The E.Capacitor voltage is not lowered soon even if the AC Cord is unplugged or the battery is removed.
2. Be careful of the high voltage circuit on Flash Sub P.C.B. Unit.
3. DO NOT allow other parts to touch the high voltage circuit on Flash Sub P.C.B. Unit.
No. Parts No. Connection Form
1 VFK1951 FP9401(MAIN) ←→ LVF FPC - LVF Module 39pin / 0.3 FFC
2 VFK1175 FP9013(MAIN) ←→ Shoe FPC - Hot Shoe Unit / Microphone 16pin / 0.5 FFC
3 RFKZ0626 FP9009(MAIN) ←→ Top Operation FPC - Rear Dial Unit 21pin / 0.3 FFC
4 RFKZ0466 FP9008(MAIN) ←→ Main-Flash FPC - FP8201(FLASH) 29pin / 0.3 FFC
5 VFK1951 FP9301(MAIN) ←→ Rear Case Unit 39pin / 0.3 FFC
6 RFKZ0392 FP9005(MAIN) ←→ Rear Operation Unit 14pin / 0.5 FFC
7 RFKZ0466 FP3901(MAIN) ←→ Mount Box Unit 29pin / 0.3 FFC
8 RFKZ0477 FP3902(MAIN) ←→ Mount Box Unit 45pin / 0.3 FFC
