36
[Test of the G-Sensor working]

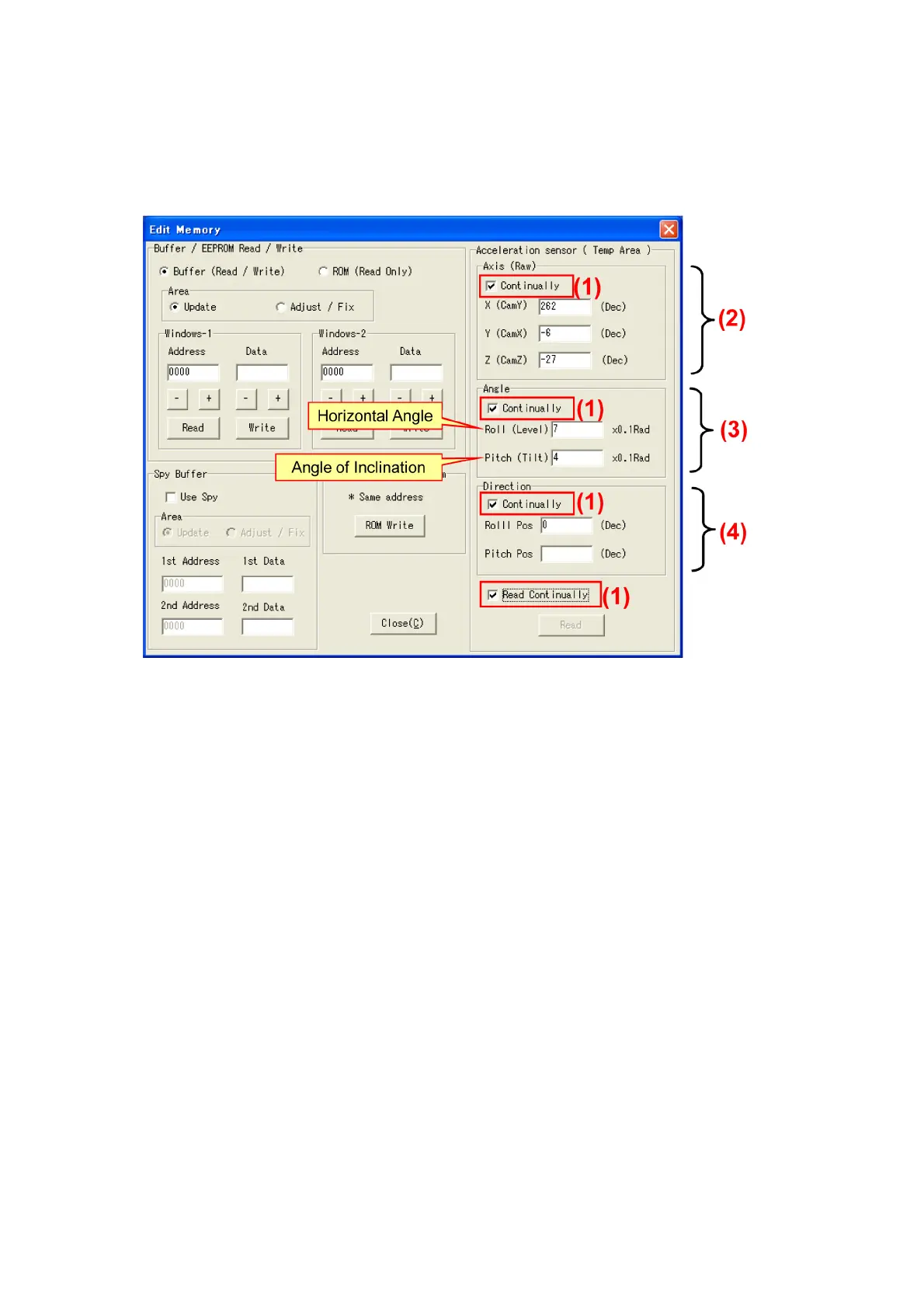

• G-Sensor working can be confirmed by G-Sensor data change on the “Edit Memory”.
[Operation]
(1)-----When you acquire the data of the G-sensor continually, put a checkmark here.
(2)-----Raw data of G- sensor is displayed.
(3)-----Roll angle (Horizontal Level) and Pitch angle (Tilt) are displayed.
(4)-----A posture state of the camera is displayed.
[Confirmation]
1. Put a checkmark in four portions of marked (1) each.
2. Move the camera and confirm the change of each data of (2) and (3).
Above value is one example. The value changes according to dispersion of each G-sensor.
3. When the value (3) is matched with the posture of the camera, G-sensor itself is normal.
If they are significantly different, G-sensor may be defective.
