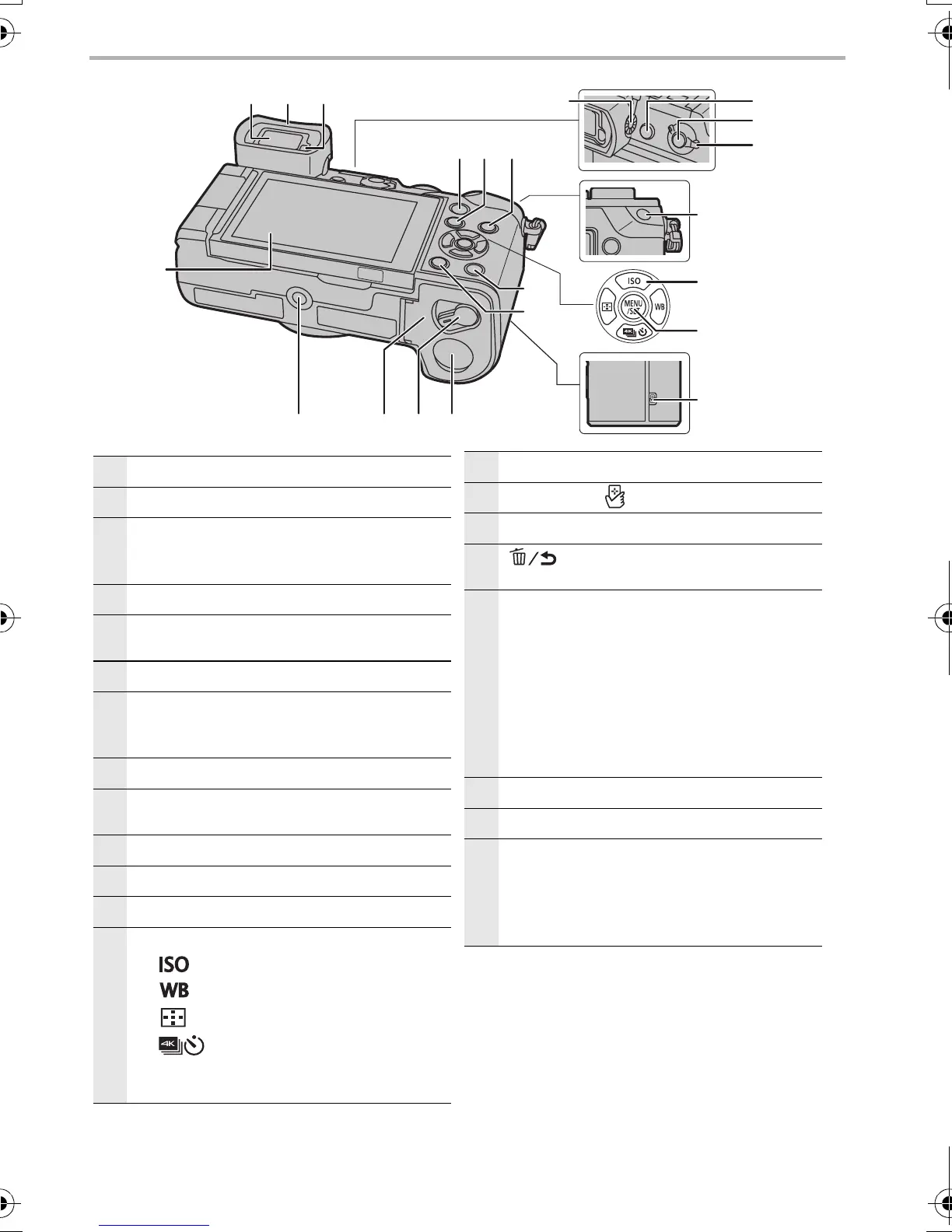

26
Touch screen (P23)/monitor (P53)
27
Viewfinder (P23)
28
Eyecup
• Keep the Eyecup out of reach of children to
prevent swallowing.
29
Eye sensor (P23)
30
[Q.MENU] button (P25)/
Function button (Fn2) (P25)
31
[(] (Playback) button (P40)
32
[DISP.] button
• Each time this is pressed, the display on the
monitor is switched.
33
Diopter adjustment dial (P19)
34
[LVF] button (P23)/
Function button (Fn6) (P25)
35
[Fn] button (Fn5) (P25)
36
Focus mode lever (P31)
37
[AF/AE LOCK] button
38
Cursor buttons (P21)
3/[ ] (ISO sensitivity)
1/[ ] (White Balance)
2/[ ] (Auto Focus Mode)
4/[ ] (Drive mode) (P32)
– Single (P32)/Burst/4K Photo (P33)/
Auto bracket/Self-timer
39
[MENU/SET] button (P24)
40
NFC antenna [ ] (P47, 49)
41
[Fn] button (Fn4) (P25)
42
[ ] (Delete/Cancel) button (P41)/
Function button (Fn3) (P25)
43
DC coupler cover
• When using an AC adaptor, ensure that the
Panasonic DC coupler (DMW-DCC8:
optional) and AC adaptor (DMW-AC10PP:
optional) are used.
• Always use a genuine Panasonic AC
adaptor (DMW-AC10PP: optional).
• When using an AC adaptor, use the AC
cable supplied with the AC adaptor.
44
Release lever (P15)
45
Card/Battery door (P15)
46
Tripod mount
• It may not be possible to attach and securely
fasten a tripod with a screw length of 5.5 mm
(0.22 inch) or more to the camera. Doing so
may also damage the camera.
