11
[CASE 1. After replacing MAIN P.C.B.]
[Except “EG, EF, EB and EP” models: (VEP56112A is used as a Main P.C.B.)]

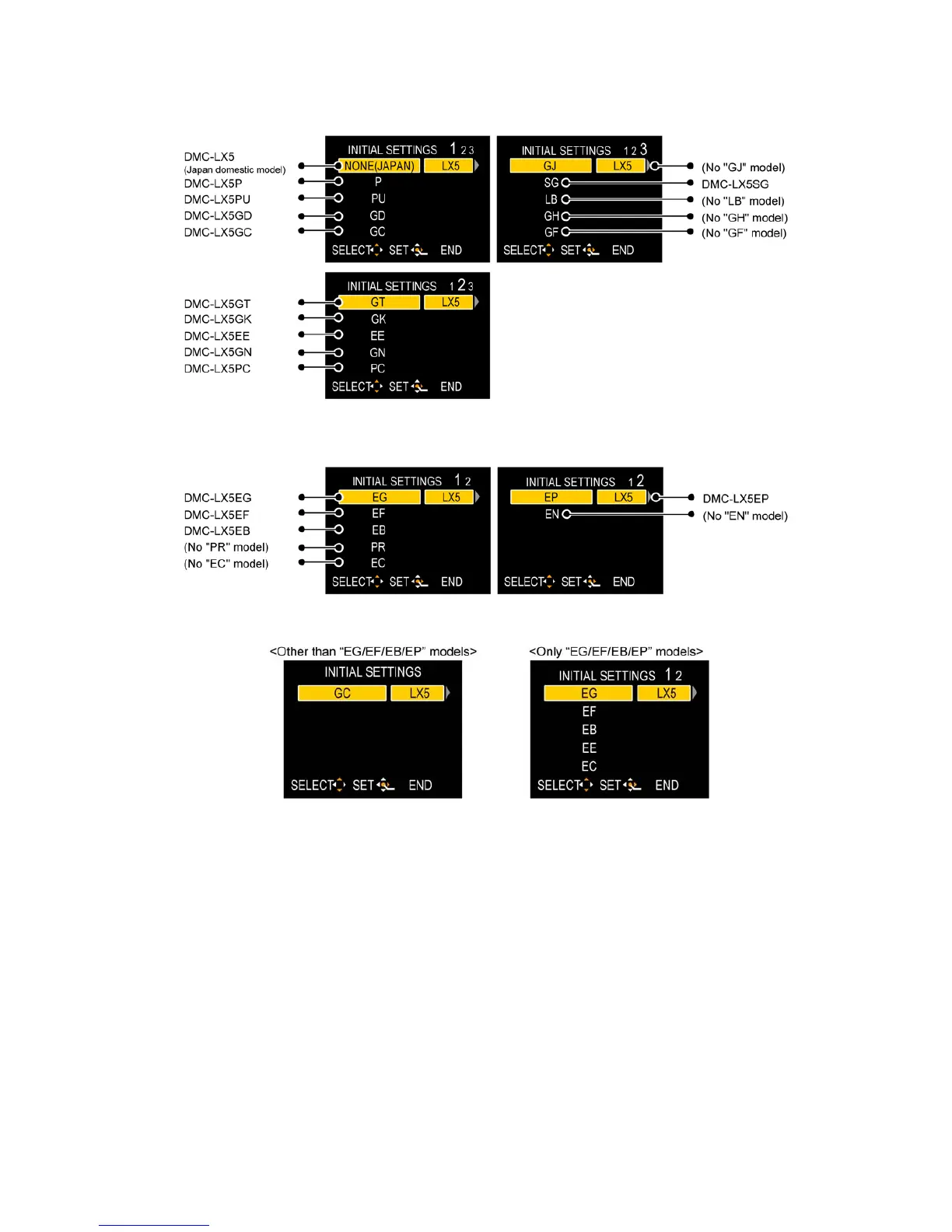

When MAIN P.C.B. has just been replaced, all of the model suffix is displayed as follows. (Three pages in total)
[Only “EG, EF, EB and EP” models: (VEP56112B is used as a Main P.C.B.)]
When MAIN P.C.B. has just been replaced, only 7 model suffix are displayed as follows. (Two pages in total)
[CASE 2. Other than “After replacing MAIN P.C.B.”]
• Step 5. Choose the model suffix in “INITIAL SETTINGS”: (Refer to “CAUTION 1”)
[Caution: After replacing MAIN P.C.B.]
The model suffix can been chosen, JUST ONE TIME.
Once one of the model suffix have been chosen, the model suffix lists will not be displayed, thus, it can not be changed.
Therefore, select the area carefully.
Select the area with pressing “[ UP ] / [ DOWN ] of Cursor buttons”.
To Next Page
