Panasonic Lumix DMC-LX5P - 8.4.6. Removal of the 2 nd Lens Frame Unit and 3 rd Lens Frame Unit; 8.4.7. Removal of the 1 st Drive Frame Unit; 8.5. Assembly Procedure for the Lens; 8.5.1. Phase alignment of the 1 st Lens Frame Unit and Both Sides Cam Frame

36

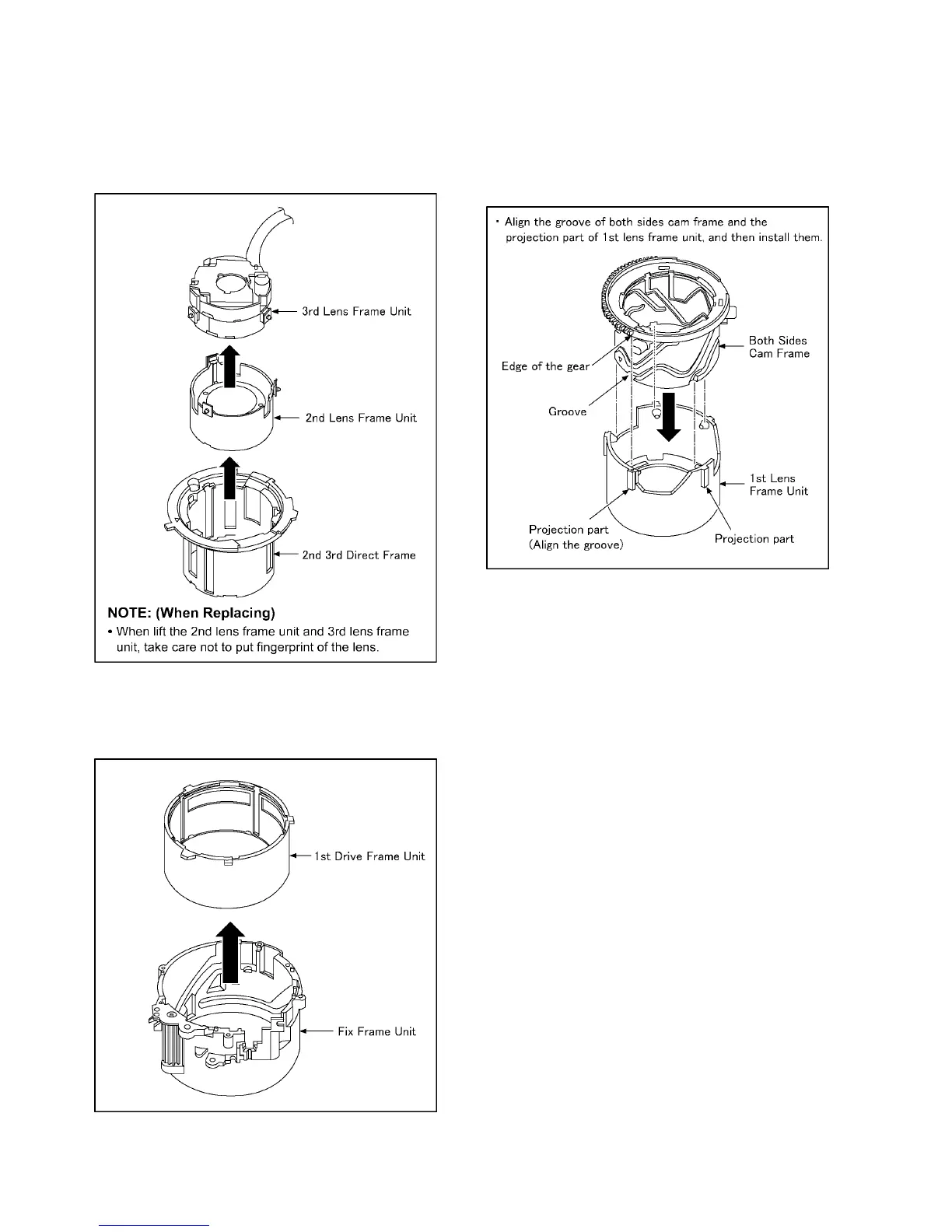

8.4.6. Removal of the 2nd Lens Frame
Unit and 3rd Lens Frame Unit
1. Push the 2nd lens frame unit from the lens front side in
the direction of arrow, and then remove the 3rd lens
frame unit and 2nd lens frame unit from the 2nd 3rd direct
frame.
8.4.7. Removal of the 1st Drive Frame
Unit
1. Remove the 1st lens frame unit from the fix frame unit.
8.5. Assembly Procedure for the
Lens
8.5.1. Phase alignment of the 1st Lens
Frame Unit and Both Sides Cam
Frame
