37

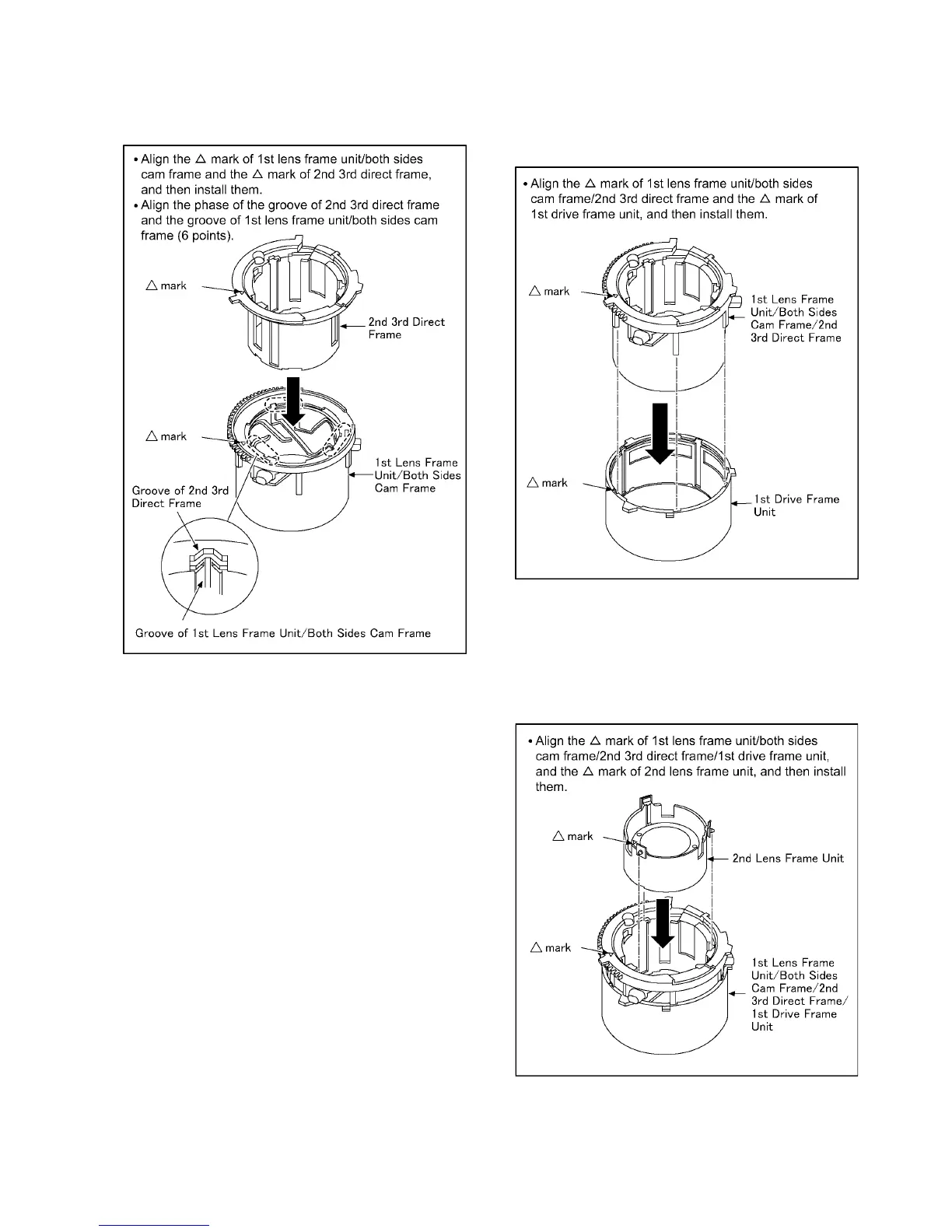

8.5.2. Phase alignment of the 1st Lens
Frame Unit/Both Sides Cam Frame
and 2nd 3rd Direct Frame
8.5.3. Phase alignment of the 1st Lens
Frame Unit/Both Sides Cam Frame/
2nd 3rd Direct Frame and 1st Drive
Frame Unit
8.5.4. Phase alignment of the 1st Lens
Frame Unit/Both Sides Cam Frame/
2nd 3rd Direct Frame/1st Drive
Frame Unit and 2nd Lens Frame
Unit
