35

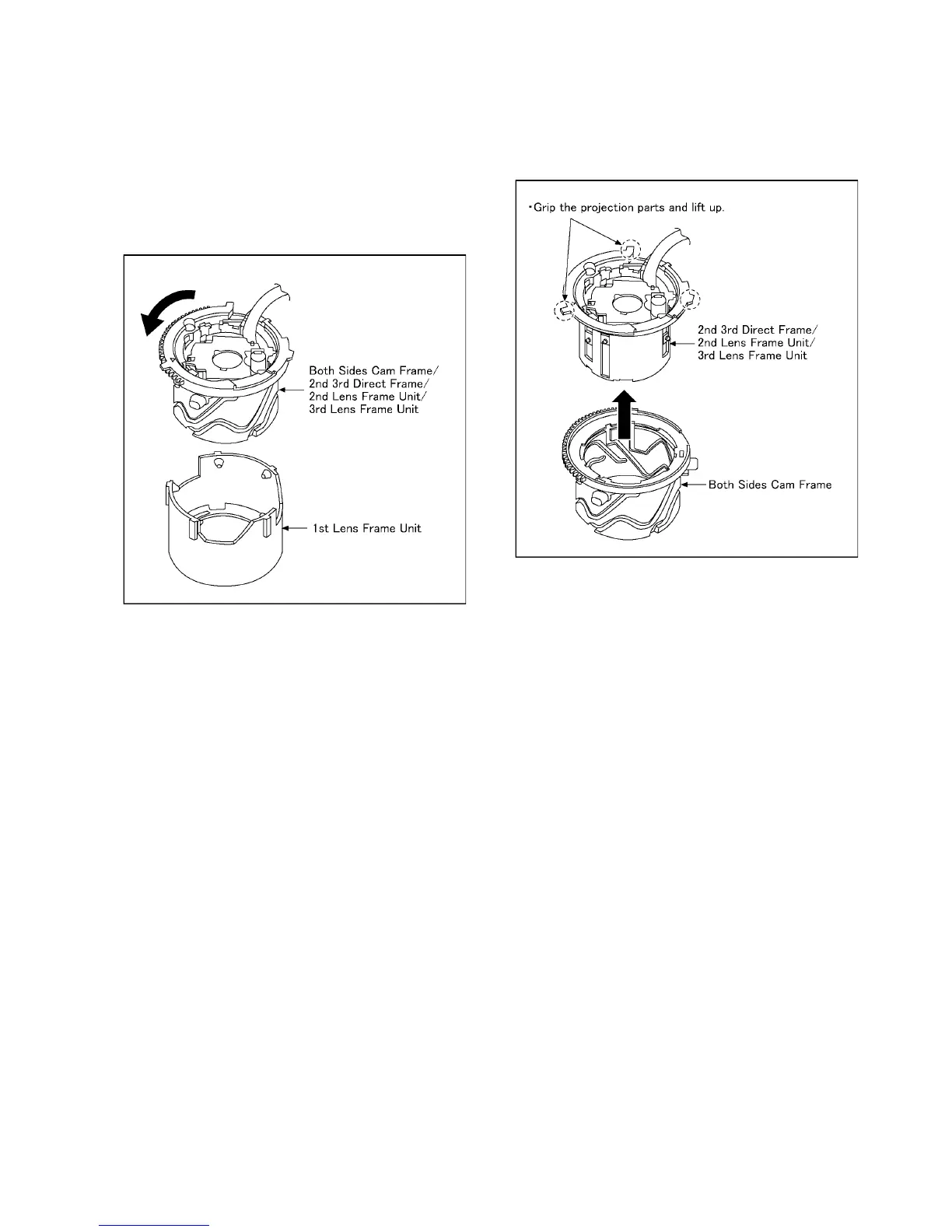

8.4.4. Removal of the Both Sides Cam
Frame/2nd 3rd Direct Frame/2nd
Lens Frame Unit/3rd Lens Frame
Unit
1. Turn the both sides cam frame/2nd 3rd direct frame/2nd
lens frame unit/3rd lens frame unit, and then remove the
both sides cam frame/2nd 3rd direct frame/2nd lens
frame unit/3rd lens frame unit from the 1st lens frame
unit.
8.4.5. Removal of the 2nd 3rd Direct
Frame/2nd Lens Frame Unit/3rd
Lens Frame Unit
1. Remove the unit of 2nd 3rd direct frame/2nd lens frame
unit/3rd lens frame unit from the both sides cam frame.
