32

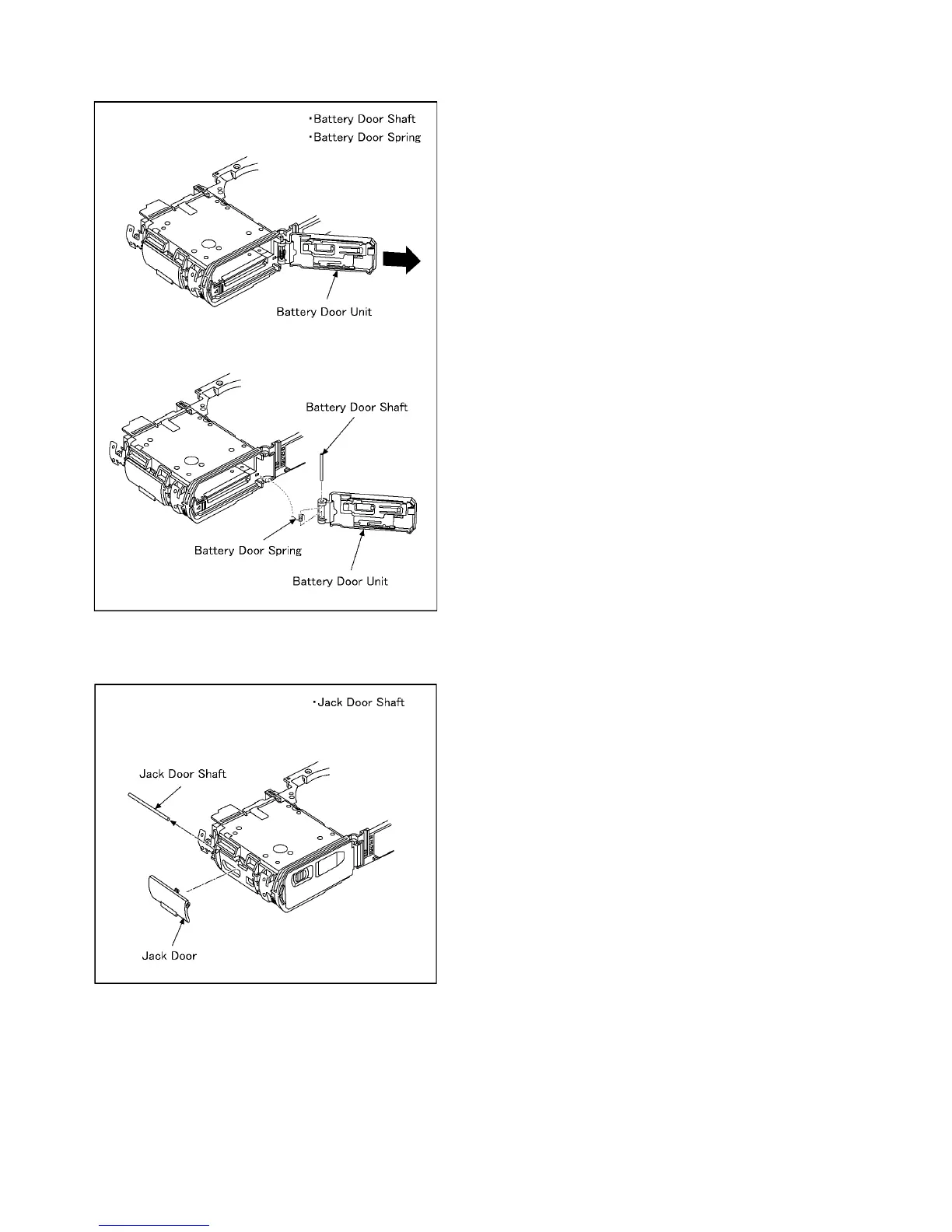

8.3.17. Removal of the Battery Door Unit
(Fig. D20)
8.3.18. Removal of the Jack Door
(Fig. D21)
NOTE: (When Installing)
Make sure to confirm the following points when installing:
• The Screw is tightened enough.
• Installing conditions are fine. (No distortion, no abnormal-
space.)
• No dust and/or dirt on Lens surfaces.
• LCD image is fine. (No dust and dirt on it, and no gradient
images.)
To Next Page
