Panasonic M330B - Connections

English - 12 -
Connections

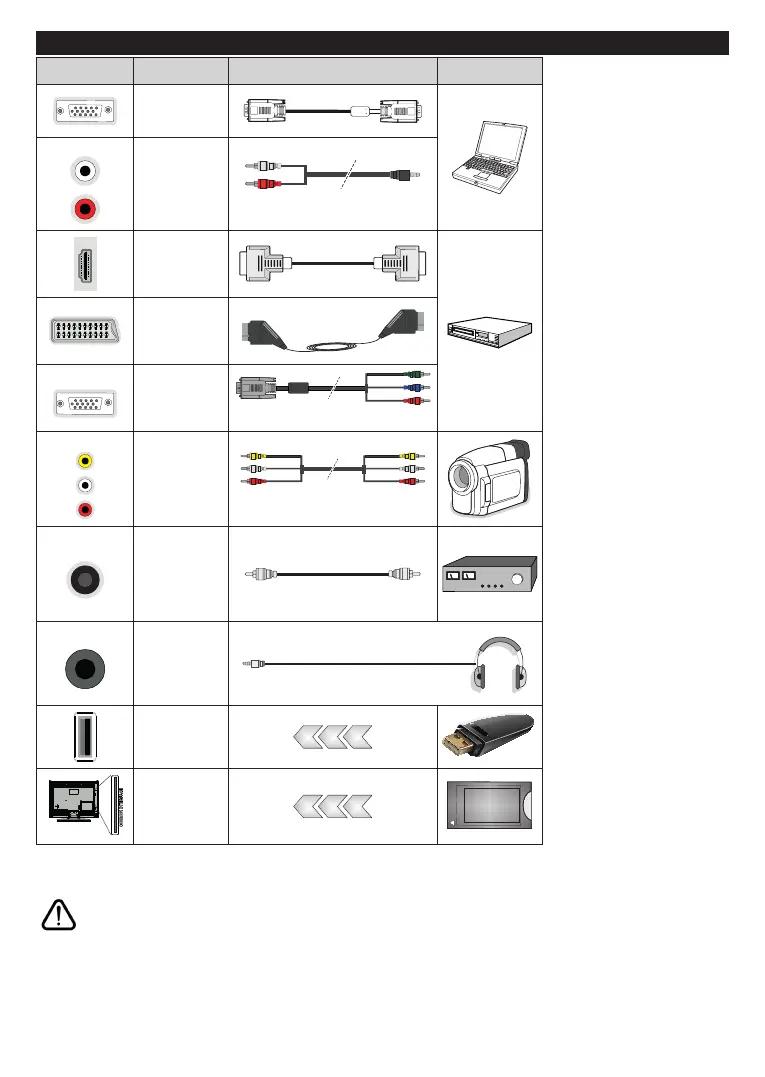

Connector Type Cables Device
VGA
Connection
(back)
AUDIO IN
PC/YPbPr
Audio
Connection
(side)
YPbPr/PC Audio Cable
HDMI
Connection
(back)
Scart
Connection
(back)
YPBPR
YPbPr Video
Connection
(back)
PC to YPbPr Connection Cable
SIDE AV
Side AV
(Audio/Video)
Connection
(side)
Audio/Video Cable
SPDIF
SPDIF
(Coaxial Out)
Connection
(back)
HEADPHONE
Headphone
Connection
(side)
USB
Connection
(side)
CI
Connection
(side)
CAM
module
See the illustrations on the left
side. You can use YPbPr to VGA
cable to enable YPbPr signal via
VGA input. You cannot use VGA
and YPbPr at the same time. To
enable PC/YPbPr audio, you
will need to use the side audio
inputs with a YPbPr/PC audio
cable for audio connection. If
an external device is connected
via the SCART socket, the TV
may automatically switch to
EXT1 mode. When receiving
DTV channels (Mpeg4 H.264,
H.265) or while in Media Browser
mode, output will not be available
via the scart socket. When using
the wall mounting kit (availa
-
ble from a third party in the
market, if not supplied), we
recommend that you plug all
your cables into the back of the
TV before mounting on the wall.
Insert or remove the CI module
only when the TV is SWITCHED
OFF. You should refer to the mod
-
ule instruction manual for details
of the settings. The/Each USB
input of your TV supports de
-
vices up to 500mA. Connecting
devices that have current value
above 500mA may damage your
TV. When connecting equipment
using a HDMI cable to your TV,
to guarantee s󰀩cient immunity
against parasitic frequency ra
-
diation, you have to use a high
speed shielded (high grade)
HDMI cable with ferrites.
󰀨
any connection. After the connection is done, you can turn on the units and use them.
