4.5. Cord reel partition unit
replacement

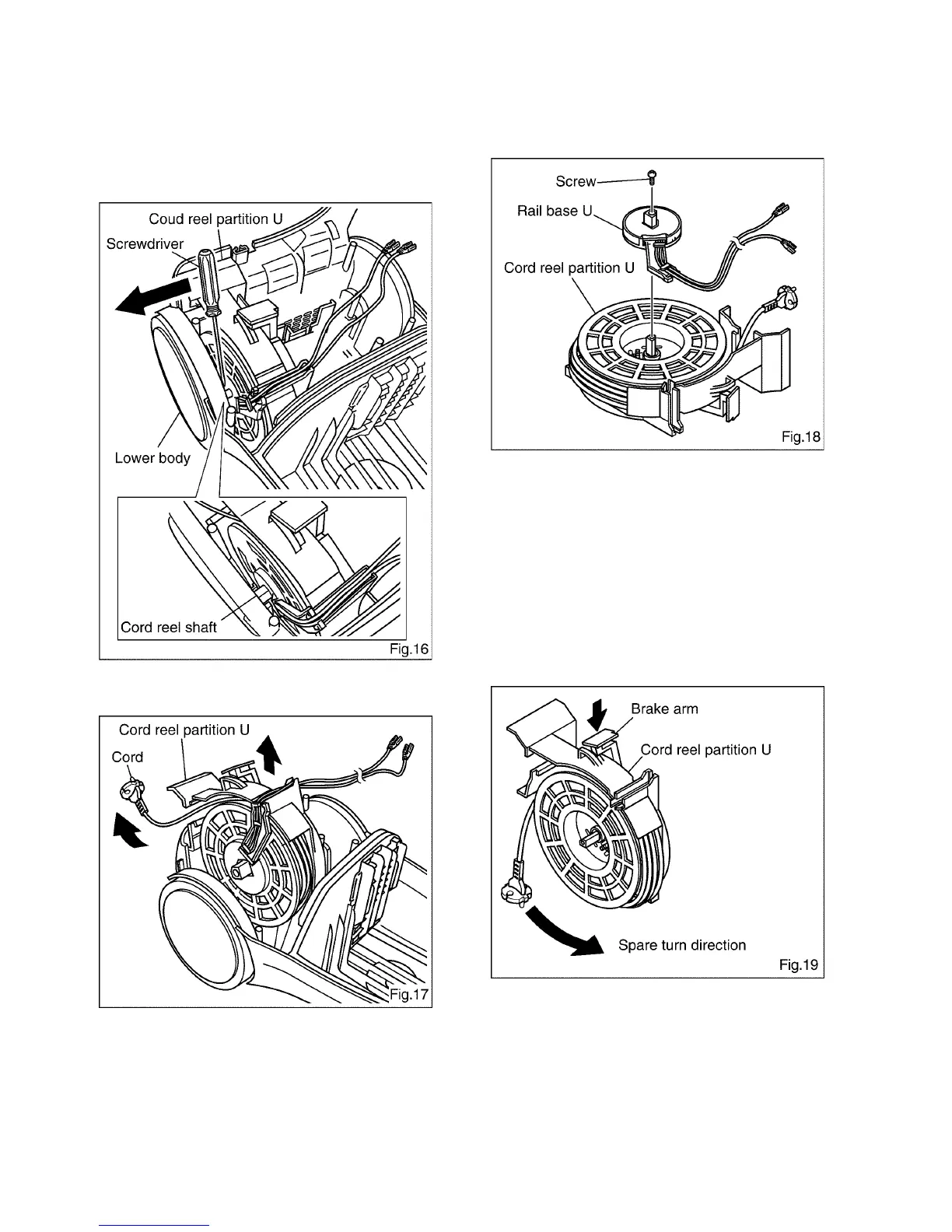

1. Increase the gap width between the cord reel and the
lower body with a screwdriver. While removing the cord
reel shaft from the side of the lower body, lift the cord reel
partition unit.
* For easy removal, pull out the cord slightly, and
then lift the cord reel.
4.6. Rail base U replacement
1. Remove the screw fixing the rail base U onto the cord reel
partition U.
2. Remove the rail base U from the cord reel partition U.
4.7. Spring-loaded cord reel
pre-winding
1. The cord reel partition U has a spring that pre-winds the
cord reel.
If the cord is not wound, then press the brake arm, and
the cord pre-winding will be loosened.
When making spare turns again, do it in the direction of
the arrow.
* Number of spare turns: Three turns
* If you want to release the pre-winding, then make
sure to hold the cord plug.
