6 Disassembly and Assembly Instructions

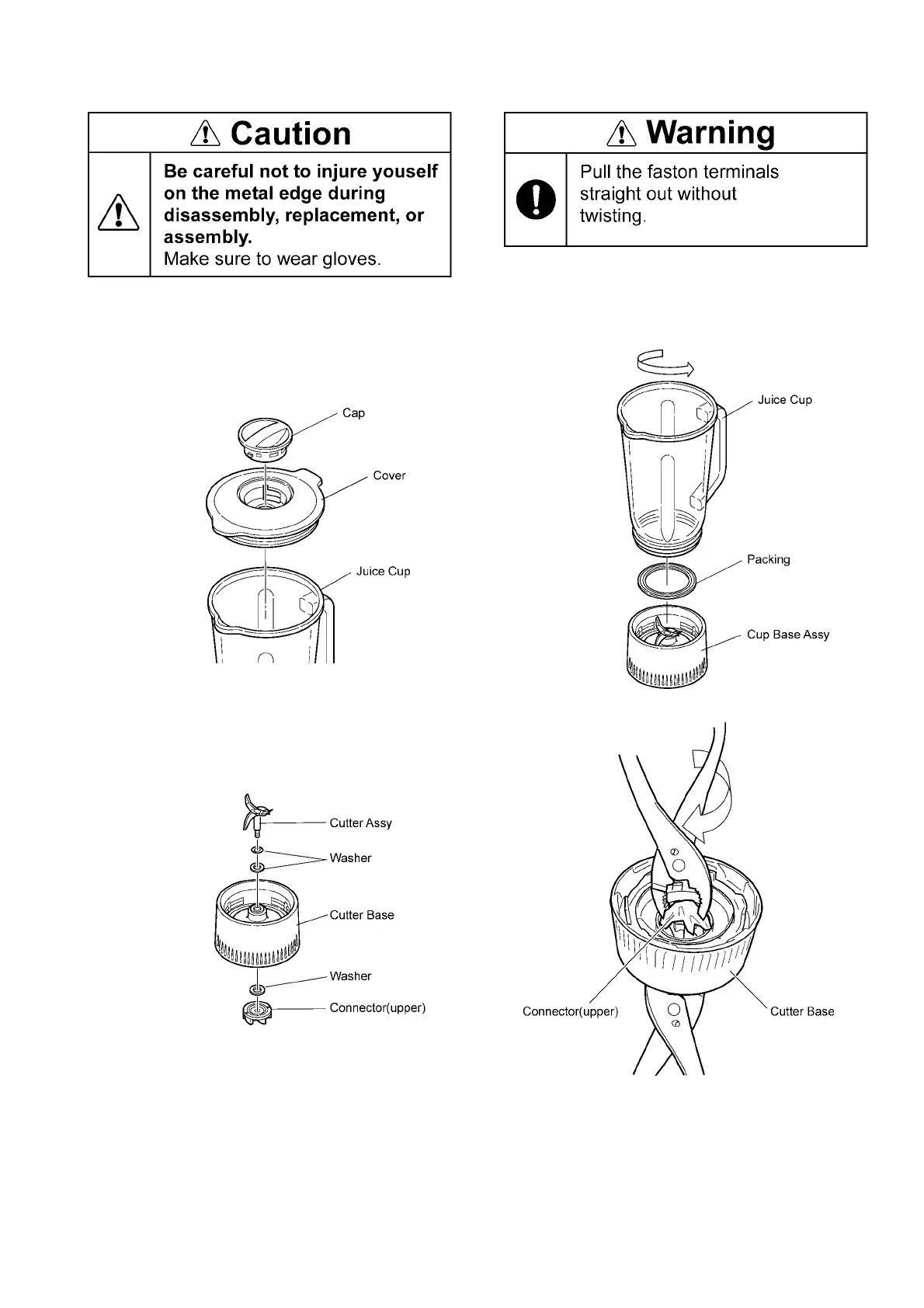

6.1. Juice cup and Cutter Assy
1. Remove the cover, then turn the Juice cup up-side-down.
2. Secure the Juice cup and turn the cup base Assy counter
clockwise. Then the packing can be removed.
3. Turn the connector upper clockwise with long nose pliers.
Then the Cutter Assy and connector upper can be
removed.
