Panasonic NA-FS14G2 - Mechanism U Replacement Procedure

7.5 The MECHANISM U replacement

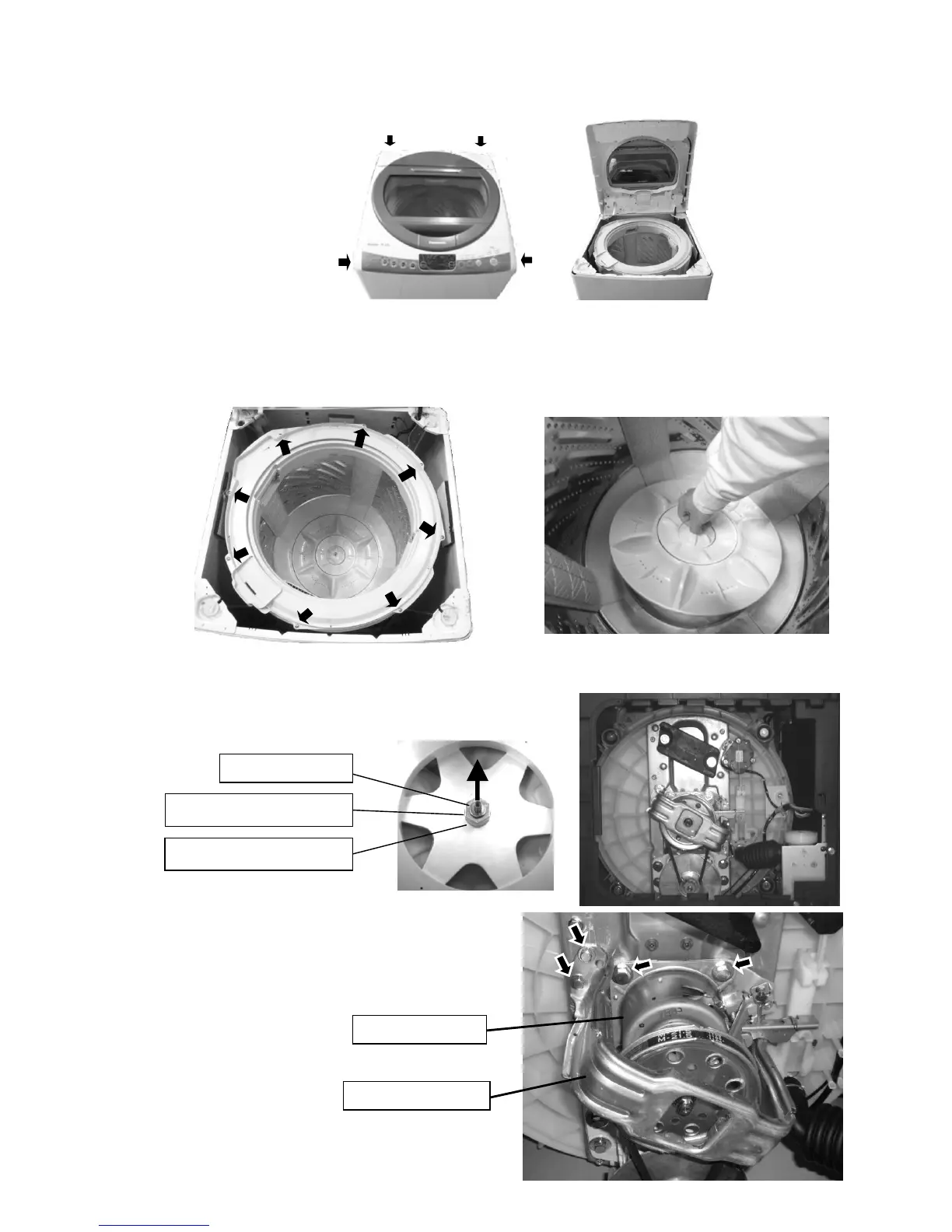

1. Remove 4 screws mounting the Body B, then raise the Body B.
2. Remove 8 screws mounting the OUTER TUB COVER.
3. Remove the special screw mounting the PULSATOR.
‧Do not remove the special screw from PULSATOR completely
then hold the screw head to pull the PULSATOR upward to remove.
4. Remove the SHAFT BUSHING、D SHAFT FLANGE NUT and D FLANGE WASHER B,
then pull the TUB upward to remove.
5. Turn the machine upside down.
6. Remove 4 screws(M8) mounting
the SPINNER PLATE B.
7. Remove 4 screws (M13)mounting
the MECHANISM U.
SHAFT BUSHING
D SHAFT FLANGE NUT
D FLANGE WASHER B
SPINNER PLATE B
MECHANISM U
