5
Procedures before washing
• Check the installation
See pages 21~23 for details.
1
Level the washing machine by adjusting the
adjustable leg and using the leveller as reference.
2
Connect the water supply hose.
3
Turn on the faucet.
4
Plug power cord into socket outlet.
5
Insert the drain hose to drain.
[NOTE]
Before installation, please make sure to install the
bottom cover. See page 23 for details.
Accessories
Water Supply Hose (1)
Length: 1.0 m
Bottom Cover (1)
Water Tap Adaptor (1)
Note: Water Tap Adaptor
is set to the Water
Supply Hose.
Drain Hose (1)
Screw (2)
Note: For Bottom Cover
Detergent /
Bleach Inlet
Lint Filter
(2 places)
Leveller
Feeding Valve
Lid
Power Plug
Adjustable Leg
Drain Hose
Inner Lid
Softener Drawer
Lid Lock Part
Pulsator
Operation
Panel
Tub
• Do not bundle
the power cord
when it is used.
• For safety reason, the lid is locked after the operation starts.
• For putting in/taking out the laundry, if the “Start/Pause” button is pressed, the lid can be opened even
when the Air Dry operation is being performed.
*
Do not unplug the power cord. (The lock cannot be cancelled.)
The lid does not
open when this
indicator is lit.
After
starting
The operation can be resumed.
When the tub stops rotating
(after about 15 seconds), the
lock is cancelled with a click.
NOTE
• Do not force open the lid if it is locked. (Damage to the lid may result.)
A buzzer sounds if the user attempts to force open the lid.
• If the “Child Lock” indicator is lit, cancel the Child Lock mode (page 17).
• If the lid is not locked during operation, stop using the washing machine immediately and contact your dealer
for repair.
Lid Lock while operating
Do not put any object such
as detergent, softener, button
and coin into the depressed
part. (A failure may result.)

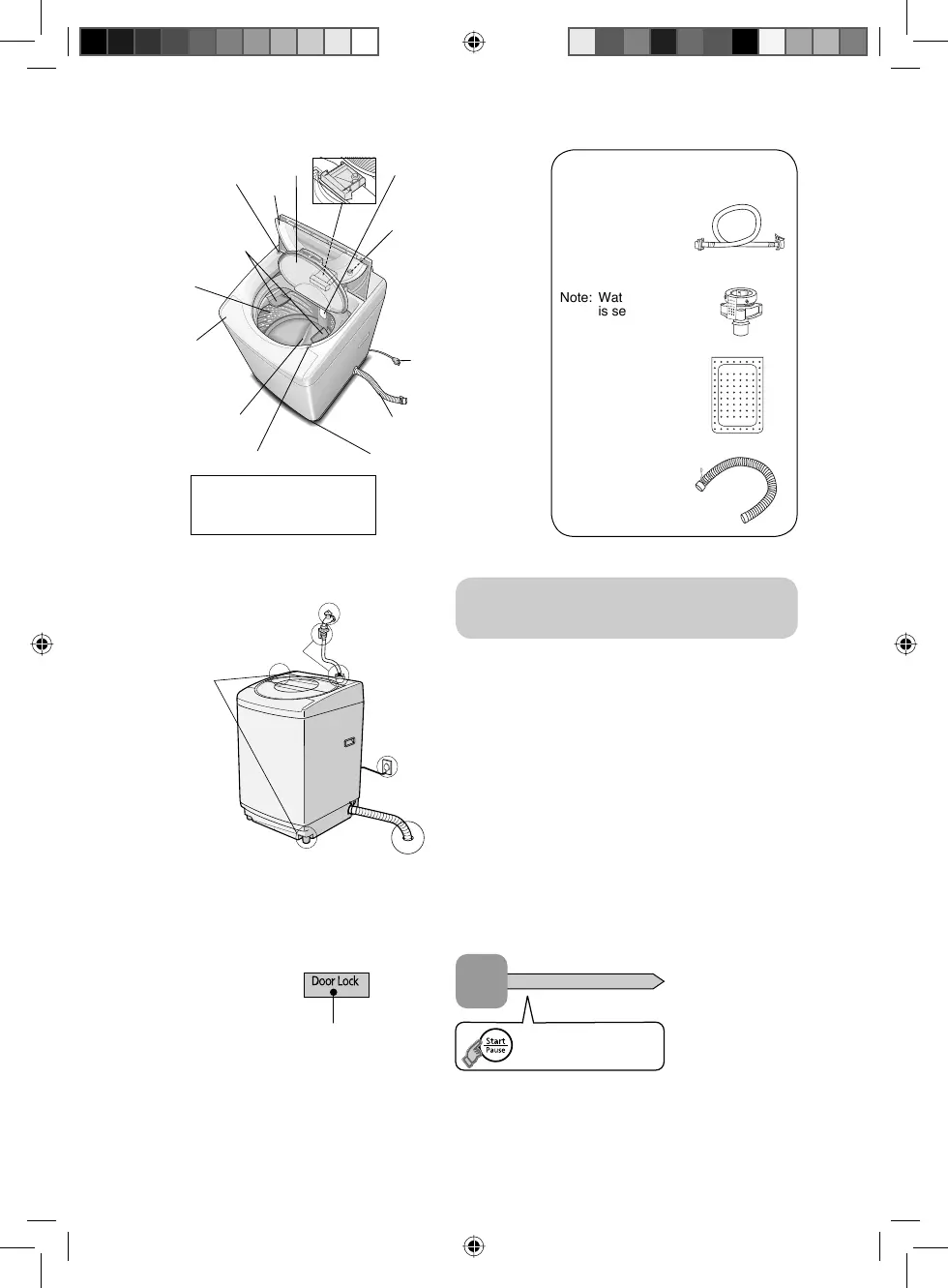

Name of parts
