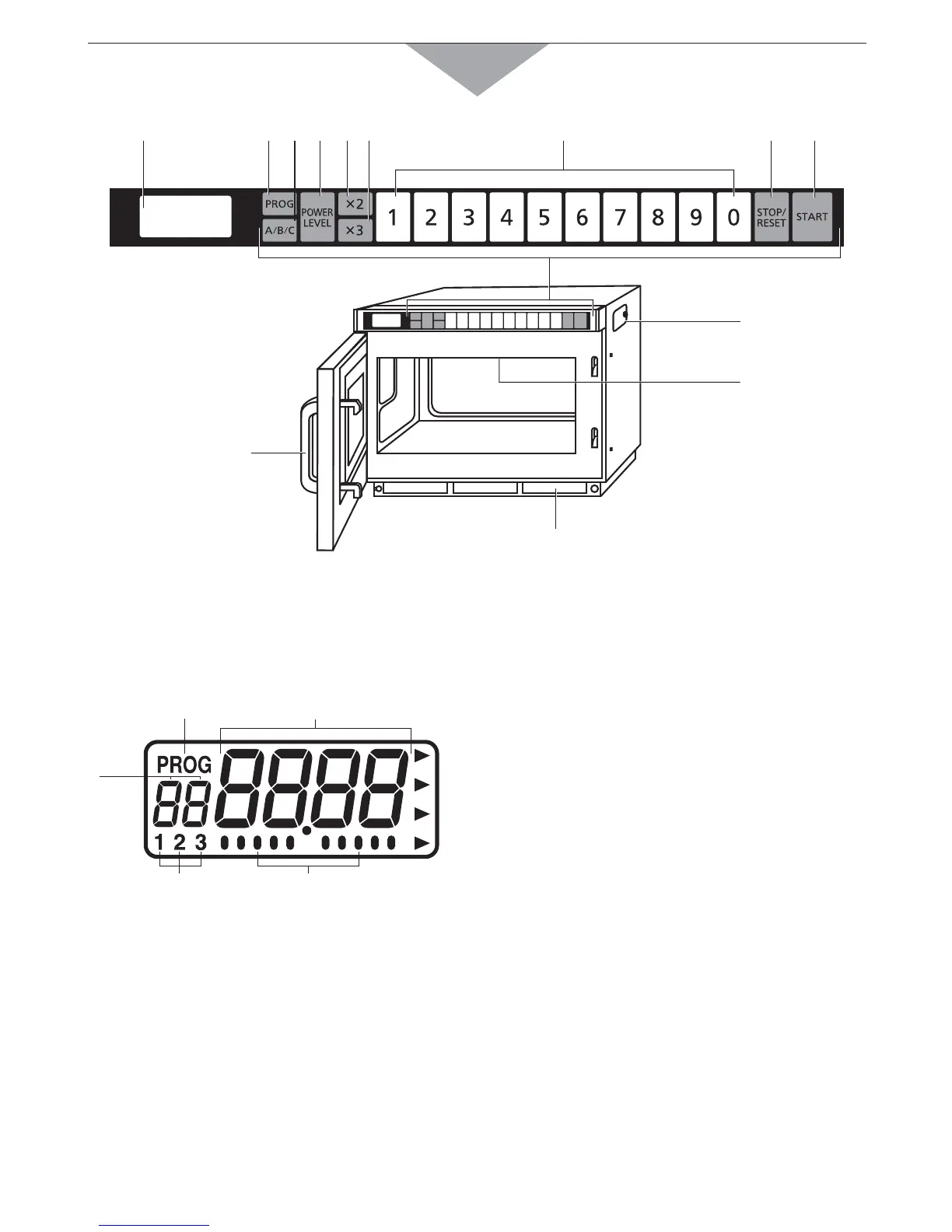

Panasonic NE21521 - Outline Diagram; Oven Controls and Indicators

- 8 -
(7)
(1)
(2) (3) (4) (5)(6) (8) (9)
(11)
(10)
(13)
(12)
Digital Display Window (see below)(1)
Program pad(2)
Shift (A/B/C) pad(3)
Power Level Selector pad(4)
Double Quantity pad(5)
Triple Quantity pad(6)
s.UMBER-EMORYPADS (7)
sTime input
Stop/Reset pad(8)
Start pad(9)
Door Handle(10)
Air Filter(11)
SD Memory Card Cover*(12)
Splatter Shield (top of inner cavity)(13)
A B
E
C
D
A – Program Display
B – Heating Time Display (min. sec. hour)
#ns-EMORYPAD.UMBER$ISPLAY
s(EATING3TAGE)NDICATOR
D – Pattern of buzzer sound settings
%ns
Calling Programmed Heating: Stage Number Indicator
s Programmed Heating in Progress: Operation Indicator
s"EEPTONESETTINGS3CALE)NDICATOR
This oven is preset at the factory as follows:
Number/Memory pads preset HIGH power at the indicated heating times for single stage heating (See pages 10-13) 
1 = 10 sec. 2 = 20 sec. 3 = 30 sec. 4 = 40 sec. 5 = 50 sec.
6 = 1 min. 7 = 1 min. 15 sec. 8 = 1 min. 30 sec. 9 = 1 min. 45 sec. 0 = 2 min.
s-ODEL.O.% 
Memory numbers are displayed using 1 digit for 1 to 9, 2 digits for 10 to 99, and 3 digits for
000 to 999.
There are three sides, A (00 to 99), B (00 to 99) and C (00 to 99).
s/THERMODELS There are three sides, A, B and C. Only A-side is preset.
Program Unlocked (See pages 14-15) 
Double Quantity = 1.6 Triple Quantity = 2.2 (See page 14) 
Oven Lamp When the door is open = ON Blinking at the end of heating cycle = OFF 
Decrease brightness during cooking = OFF (See pages 19-20)
The default filter cleaning time is set to “0”. 
If you wish to change these settings, please consult the operating instructions for programming procedure.
(See page 18)
* In this manual, illustrations of Model No. NE-17723 is used for explanation purposes.
Model numbers other than NE-17723 do not have SD Memory Card functions.
Outline Diagram
