Panasonic NN-C69KSMEPG Service Manual

-6

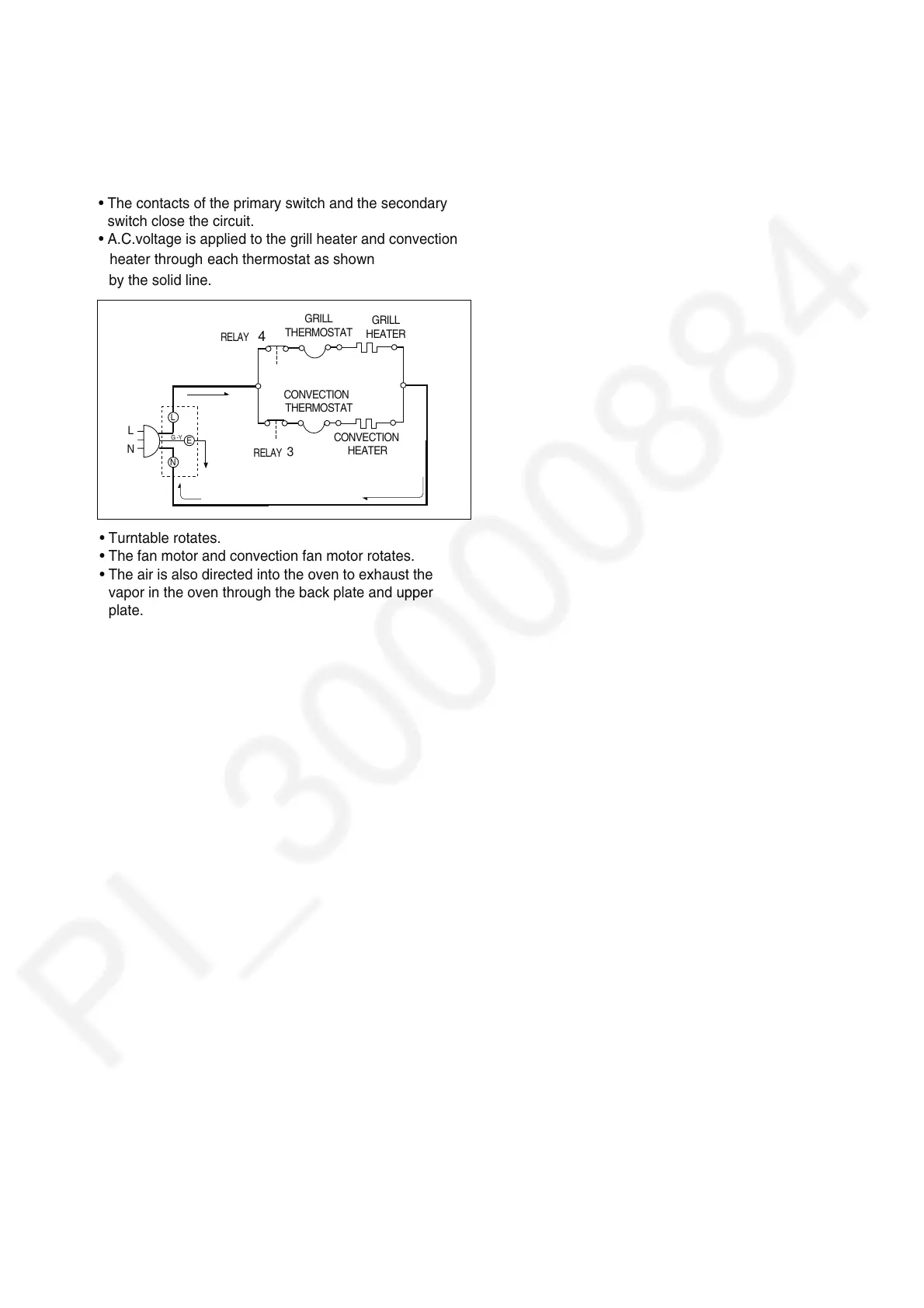

WHEN TOUCHING THE START KEY
WITH THE COOKING
SELECTED
• The contacts of the primary switch and the secondary
switch close the circuit.
• A.C.voltage is applied to the grill heater and convection
• Turntable rotates.
• The fan motor and convection fan motor rotates.
• The air is also directed into the oven to exhaust the
vapor in the oven through the back plate and upper
plate.
4
CONVECTION
FUNCTION
L
N
GRILL
THERMOSTAT
GRILL
HEATER
L
G -Y
N
E
RELAY
THERMOSTAT
CONVECTION
CONVECTION
HEATER
by the solid line.
heater through
each thermostat as shown
4
RELAY
3
