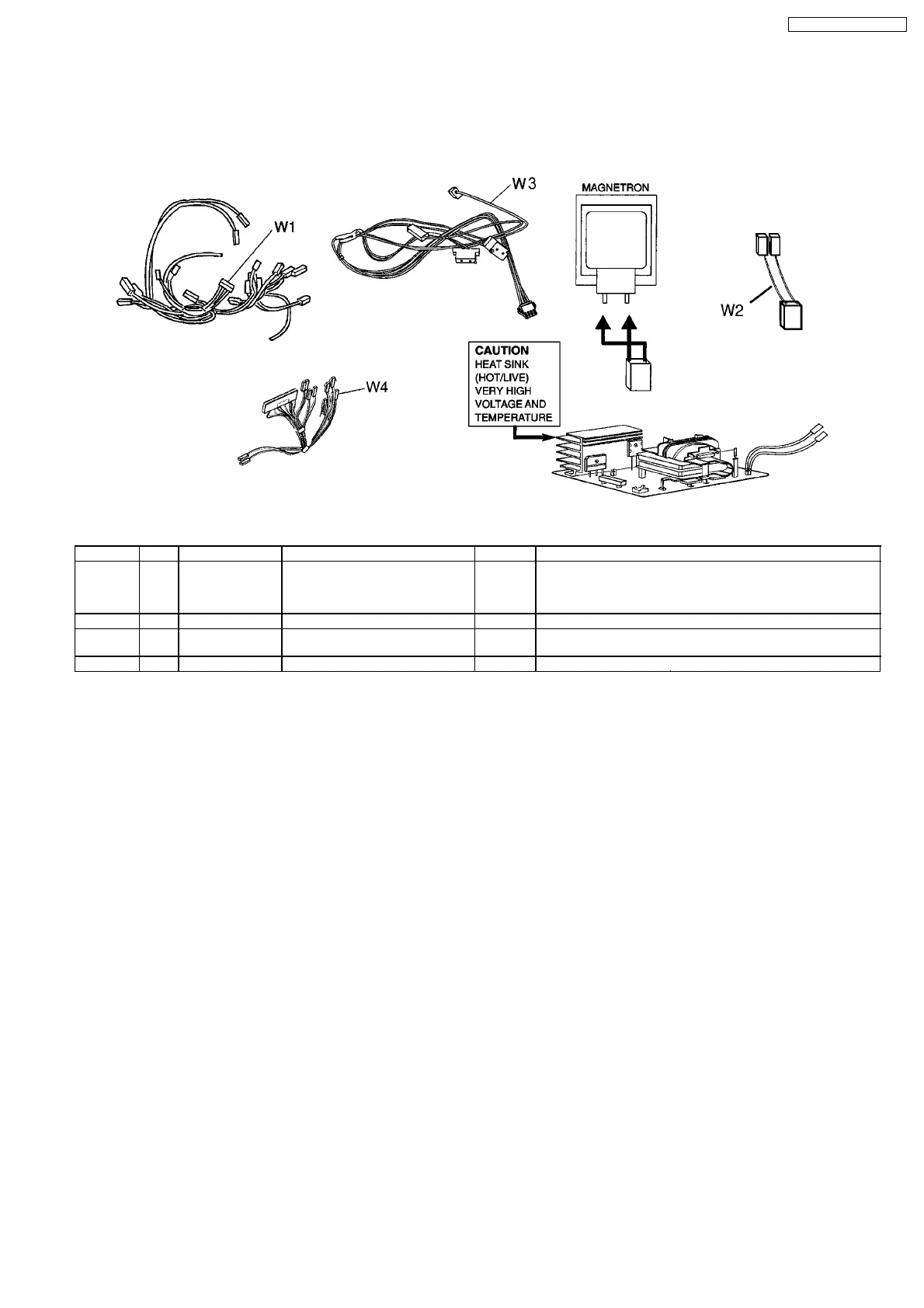

8.6. WIRING MATERIALS
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
W1 F030A9X00CP LEAD WIRE HARNESS 1 (Connect to Primary Interlock Switch,Monitor
Switch,Top Oven Lamp,Stirrer Motor,Magnetron cooling
Fan Motor, Inverter cooling Fan Motor,3 Thermal
Cutouts,Blower Motor & Cam Switch etc.)
W2 F030E5H00CP H.V.LEAD WIRE 1 (Magnetron to CN702 of H.V.Inverter)
W3 F03539X00CP LEAD WIRE HARNESS U 1 (INCLUDING 5 PIN CONNECTOR CN4)
(Connect to Secondary Interlock Switch etc.)
W4 F03559X00CP LEAD WIRE HARNESS 1 (Connect to Turntable Motor & Cooktop Lamps etc.)
23
NN-SD291S / NN-SD291W
