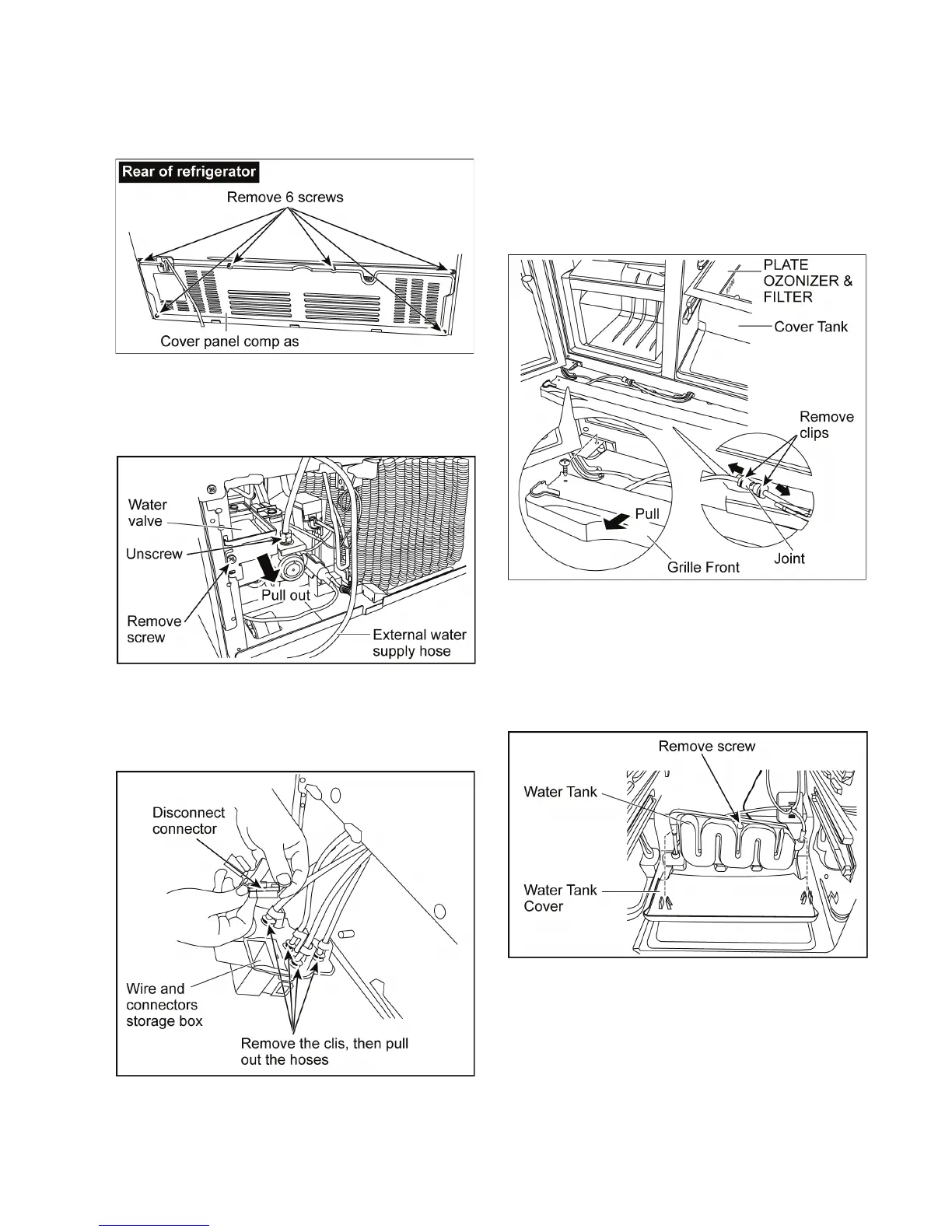

11.7.3. Water Valve & HARNESS AS.
11.7.3.1. Water Valve & HARNESS AS.
1. Remove Compressor Compartment cover.
• Unscrew 6 screws and lift to remove.
2. Remove the water valve & HARNESS AS.
a. Remove 1 fixation screw.
b. Unscrew the Compression Nut to disconnect the
external water supply hose.
c. Pull the water valve & HARNESS AS. out.
3. Disconnect 4 internal water hoses (2 white, 2 blue).
a. Use a needle nose pliers to remove the clips, then
pull the hoses out.
b. Take out all wires and connector from the storage
box and disconnect the white connector.
11.7.3.2. Water Tank A’ssy
1. Remove the base grille and disconnect the white
hose.
a. Remove 2 screws (1 at left end, 1 at right end) on
the grille front (diagram below only shows the left
end screw).
b. Pull off the grille front to reveal the water hoses.
c. Remove the clips on the white joint.
d. Hold the hose near to the hose sleeve, then pull
the hose out of the joint.
2. Pull out the entire PLATE OZONIZER & FILTER
(together with the hoses that attached to filter AS.
holder) to reveal the water tank beneath it.
3. Remove the cover Tank.
4. Remove the Tank.
a. Remove a fixation screw on the water tank.
b. Remove the tank by pulling it out together with the
hoses attached to it.
