12. DISASSEMBLY INSTRUCTION
12.1 LCD Cover

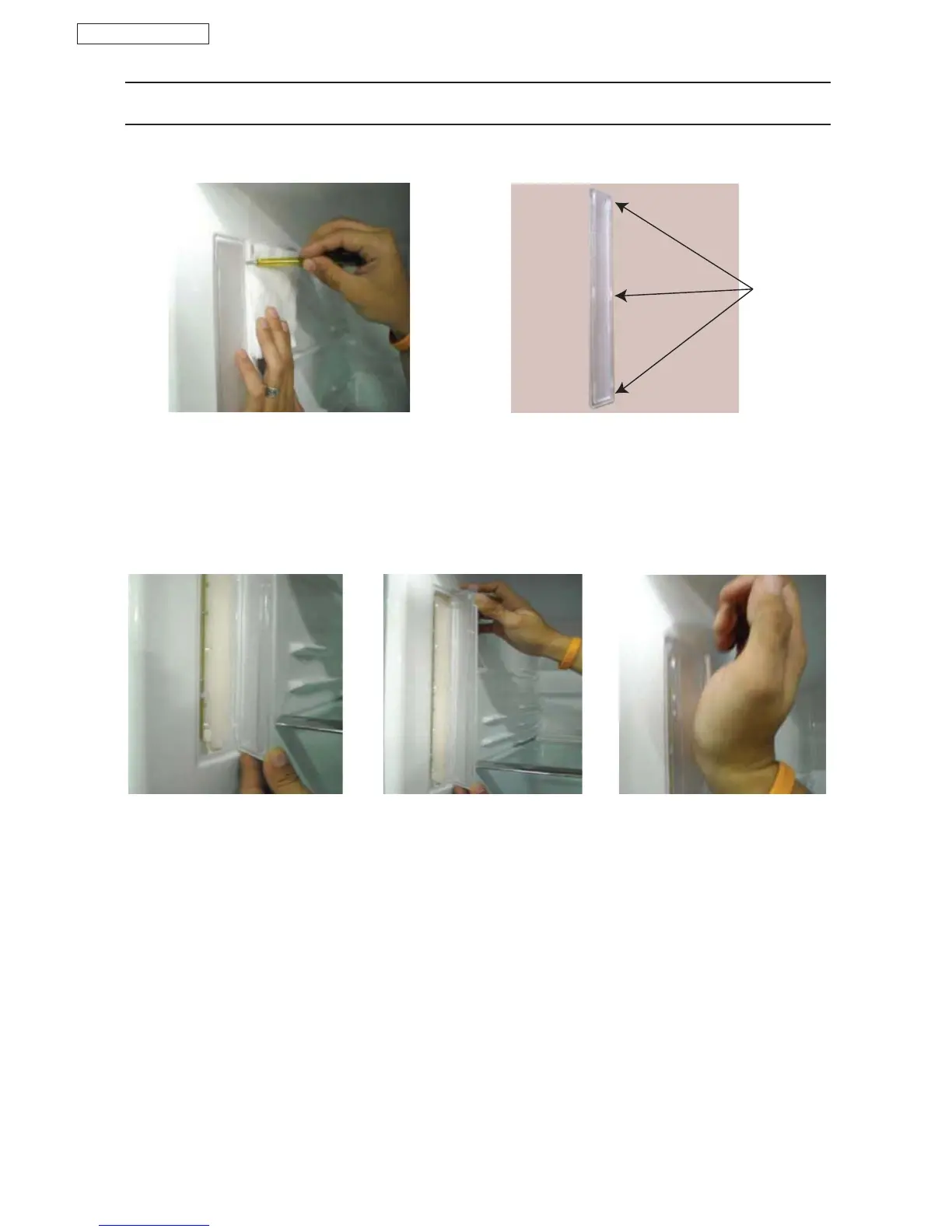

- Take off LCD cover by use screwdriver put between gaps of LCD cover with liner at the lock point as Fig. 1.
- Check the locks point by see at “Arrow Mark” as Fig. 2.
- Use screwdriver push up the LCD cover for lock loose.
- After change LCD lamp or LCD cover, put LCD cover at one side (left or right) and set locks in position
as Fig. 3.
- Set LCD cover by see at the bottom of LCD cover as Fig. 4.
- Use hand hit carefully at LCD cover from the top pass to bottom as Fig. 5.
Fig. 3 Fig. 4
Fig. 1 Fig. 2
Fig. 5
NR-BY552 / NR-BY602
Locks
