NR-BY552 / NR-BY602

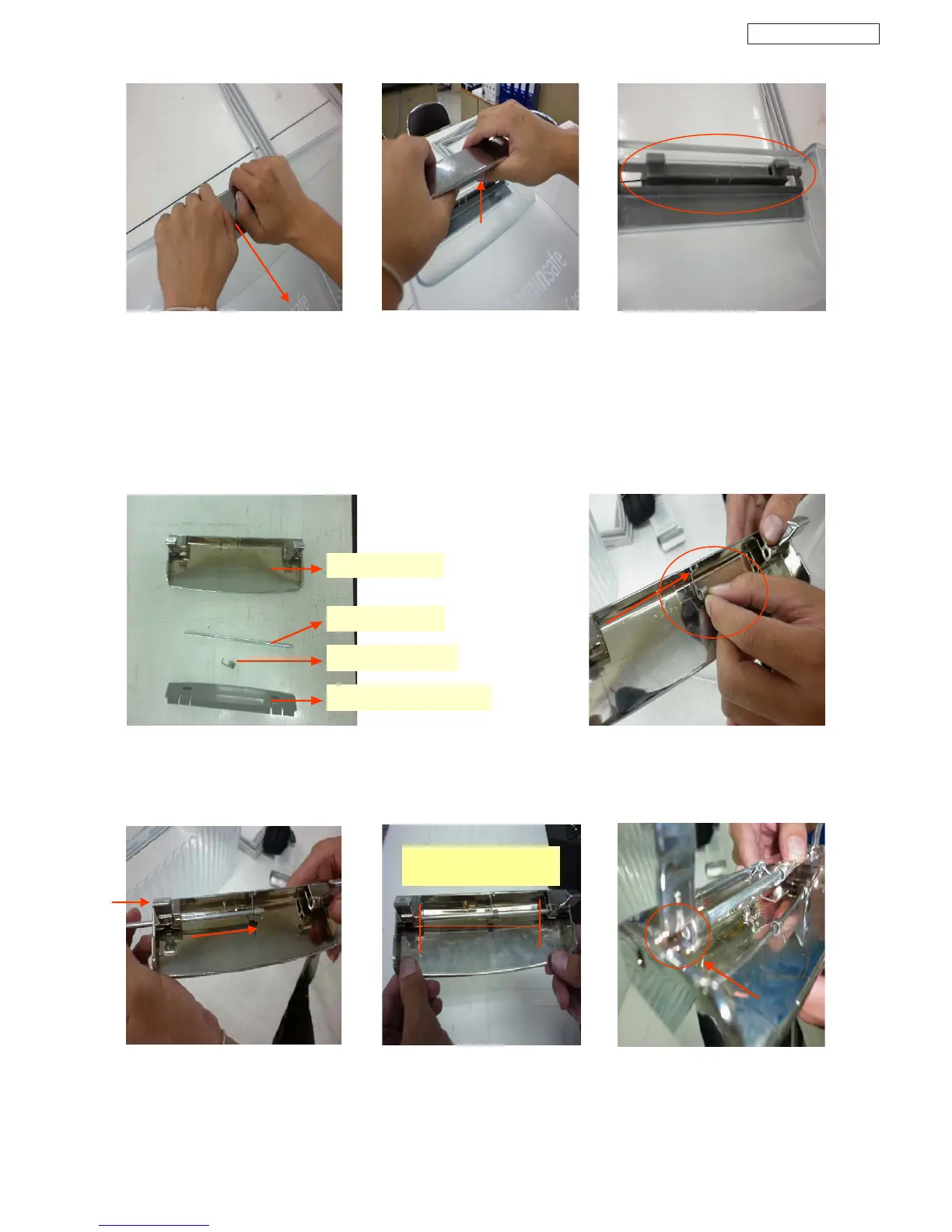

12.6 Maintain method : Crisper handle ass’y
- Both hands hold Crisper handle and press down (about 45 degree) for unlock as Fig. 5.
- Both hands hold Crisper handle and carry up for unlock as Fig. 6.
- After take off Crisper handle and remain new piece as Fig. 7.
- Explode parts of Crisper handle as Fig. 8.
- To lock Spring crisper with Handle sub as. as Fig. 9.
Fig. 5 Fig. 6
Fig. 8 Fig. 9
Fig. 7
- To ass’y Shaft crisper from hole, left side through Spring crisper and finish at hole, right side as Fig. 10.
- To check Shaft crisper must be ass’y center as Fig. 11.
- Shaft crisper must be lock with hole complete as Fig. 12.
Fig. 10 Fig. 11 Fig. 12
HANDLE SUB AS.
SHAFT CRISPER
SPRING CRISPER
PIECE CRISPER HANDLE
SHAFT MUST BE ASS’Y
CENTER
