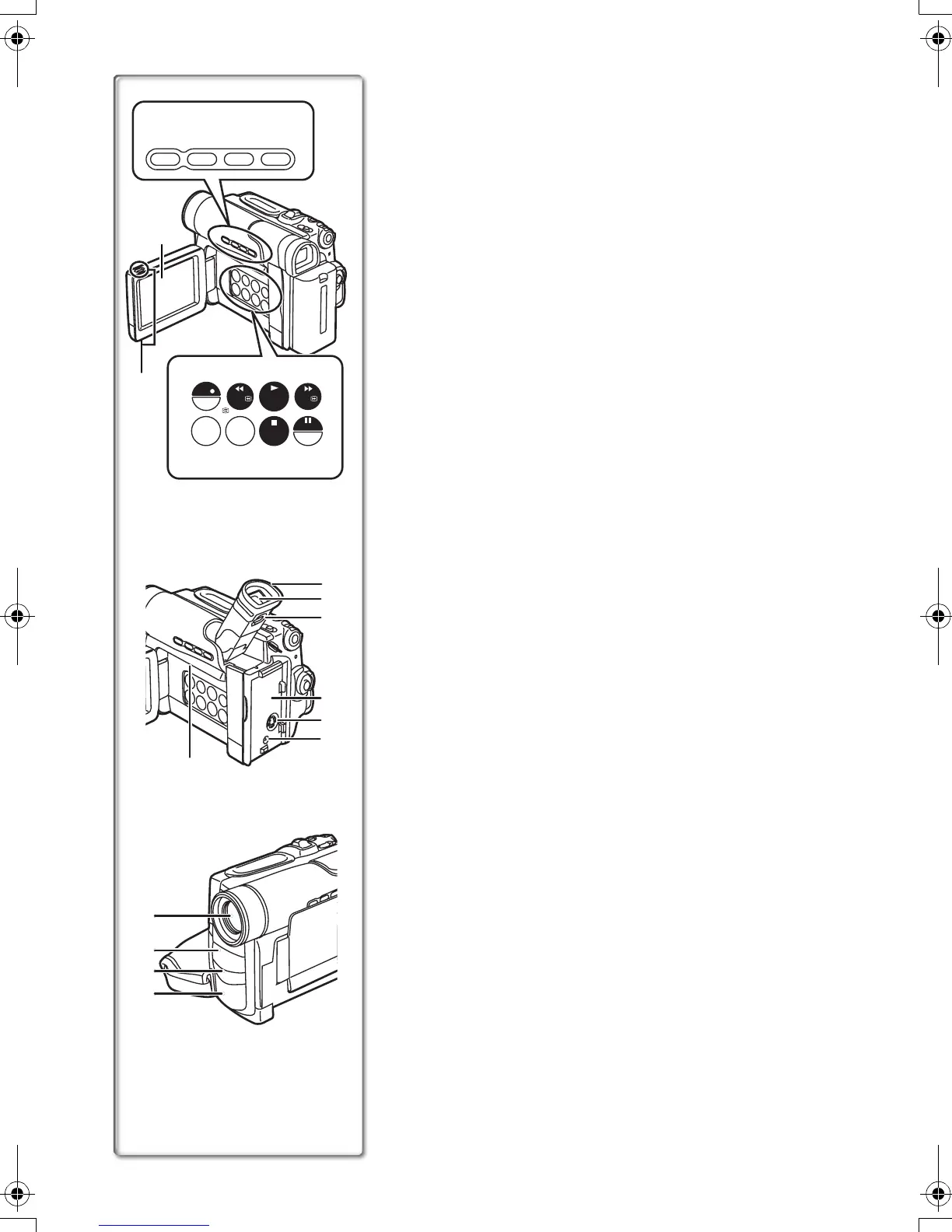

Controls and Components
1) Video Light Button [LIGHT] (l 21)
2) Colour Night View Button [COLOUR NIGHT VIEW]
(l 25)
3) Backlight Button [BACK LIGHT] (l 25, 41)
4) Fade Button [FADE] (l 24)
5) LCD Monitor (l 15, 57)
.....................................................................................................
≥Due to limitations in LCD production technology, there
may be some tiny bright or dark spots on the LCD Monitor
screen. However, this is not a malfunction and does not
affect the recorded picture.
.....................................................................................................
6) LCD Monitor Open Tab [OPEN 4] (l 15)
7) Focus Button [FOCUS] (l 29)
Recording Button [REC] (NV-DS65 only) (l 39)
8) Recording Check Button [S] (l 20)
Rewind/Review Button [6] (l 32, 33)
9) Play Button [1] (l 32)
Playback Multi Button [MULTI] (l 32)
Memory Card Play Button [M-PLAY] (NV-DS65 only)
(l 42)
10) Fast Forward/Cue Button [5] (l 33)
11) Mode Selector Button [AUTO/MANUAL]
(l 20, 27, 28, 29)
12) Super Image Stabilizer Button [SIS] (l 24)
Playback Digital Image Stabilizer Button [PB DIS] (l 32)
13) Stop Button [∫] (l 32)
Memory Card Stop Button [M-STOP] (NV-DS65 only)
(l 42)
14) Pause Button [;] (l 34)
Memory Card Data Delete Button [M-DEL]
(NV-DS65 only) (l 44)
Still Button [STILL] (l 22, 31)
Picture in Picture Button [P-IN-P] (l 31)
15) Eyecup
16) Viewfinder (l 15, 57)
.....................................................................................................
≥Due to limitations in LCD production technology, there
may be some tiny bright or dark spots on the Viewfinder
screen. However, this is not a malfunction and does not
affect the recorded picture.
.....................................................................................................
17) Eyepiece Corrector Knob (l 15)
18) Battery Holder
19) S-Video Output Socket [S-VIDEO] (l 37, 38)
20) DC Input Socket [DC/C.C. IN] (l 12)
21) Speaker (l 32)
22) Lens
23) Built-in Video Light (l 21)
24) Remote Control Sensor (l 11)
25) Microphone (built-in, stereo) (l 23)
