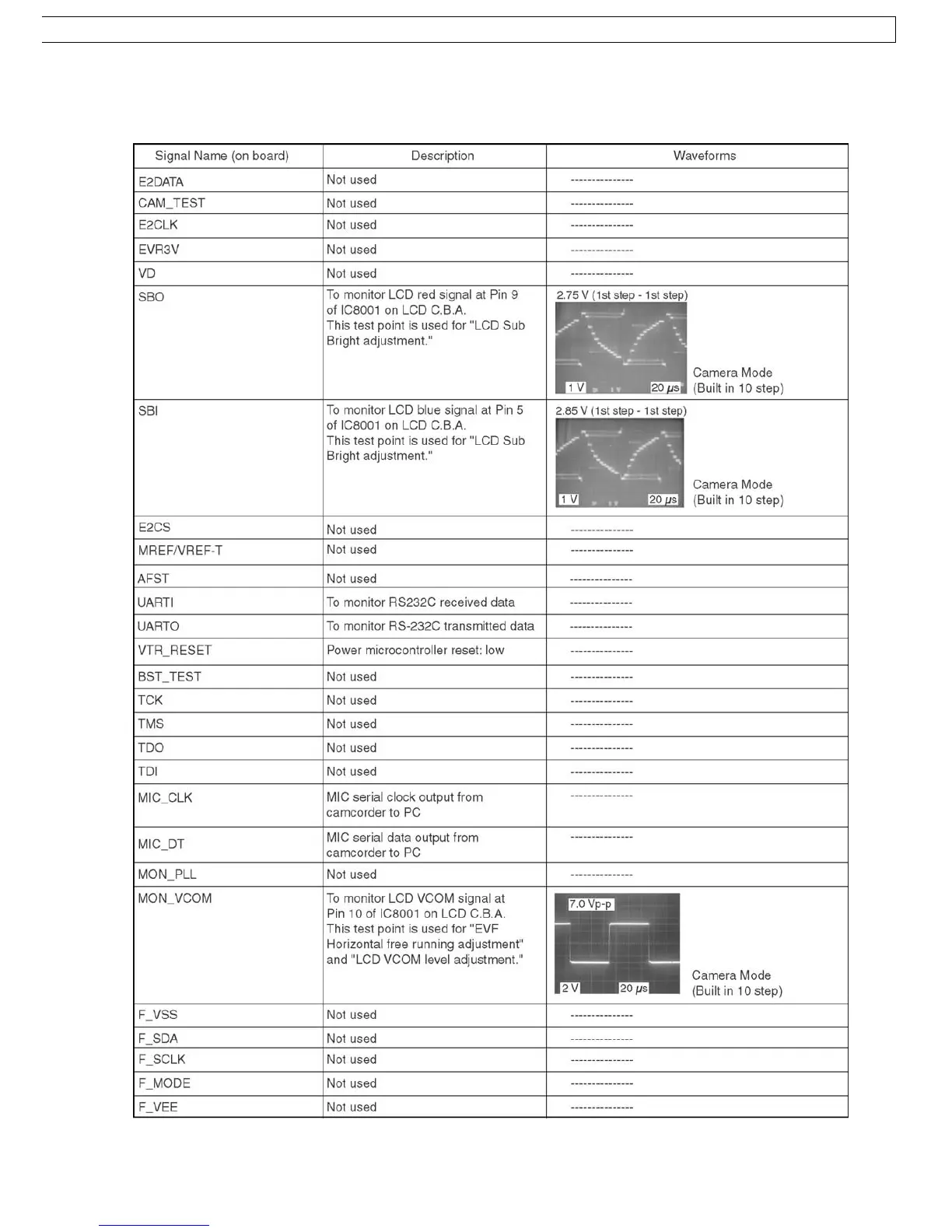

7.1.6. SIGNAL DESCRIPTION ON MEASURING BOARD FOR ELECTRICAL ADJUSTMENT
(VFK1308E)
A signal check can be performed using the Measuring Board.
