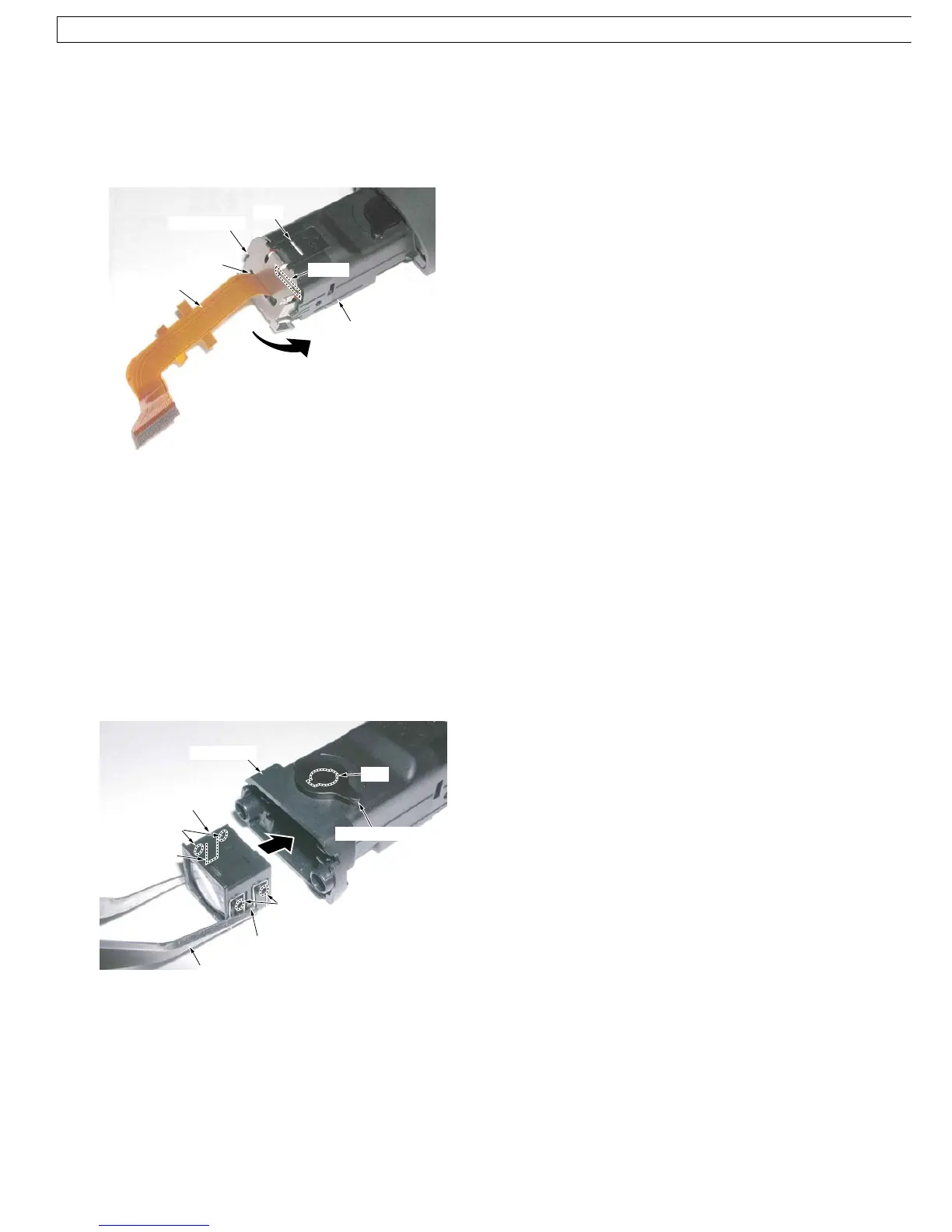

17.Installation of EVF Spring, EVF F.P.C.
1) Insert the EVF F.P.C. into the EVF Spring hole paying
particular attention to the direction.
2) Connect the EVF F.P.C. to Connector FP951.
3) Insert the Locking Tab (L-2) at first, then fit the EVF
Spring in the EVF Case and tighten the Screw (450).
Fig. D17
18.Removal of Eye Cap
Remove the Eye Cap after removing the 2 Screws (524).
19.Handling cautions of EVF Lens Unit
Use extreme care when handling the EVF Lens Unit to
avoid damage, dust, and spots (especially fingerprints,
etc.)
Installation of EVF Lens Unit, Eye Sight Lever
1) Install the Eye Sight Lever into the EVF Case hole in the
direction shown.
2) Install the EVF Lens Unit into the EVF Case while
grasping both sides of the springs with tweezers, etc.
3) After installing, confirm the Eye Sight Lever and the
EVF Lens Unit work together correctly.
Fig. D19
EVF Spring
EVF Case
Fit
(L-2)
hole
FP951
EVF F.P.C.
EVF Lens Unit
Eye Sight Lever
hole
EVF Case
Spring
Spring
Bosses
Bosses
Tweezers
52
