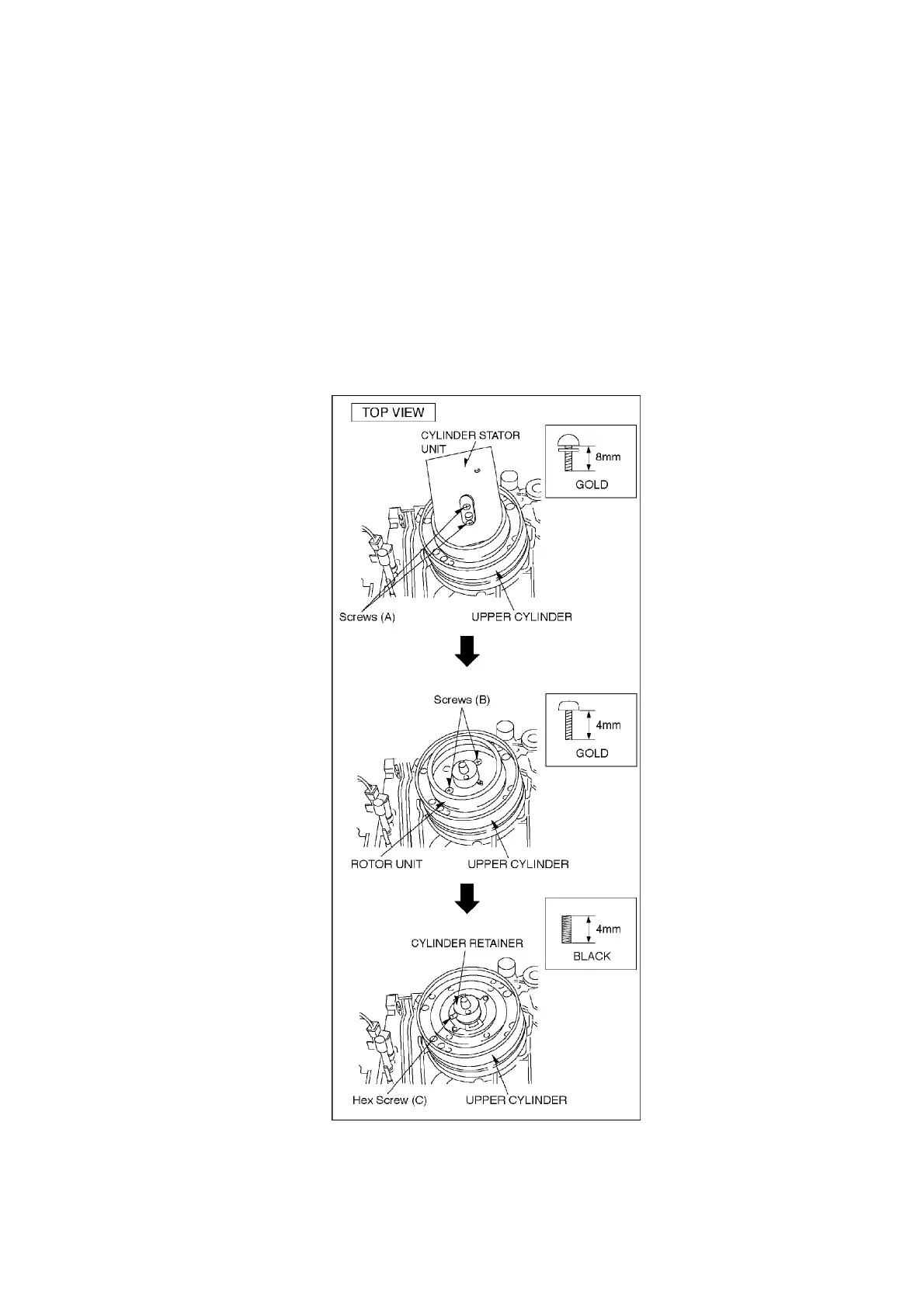

2. UPPER CYLINDER DISASSEMBLY
A. Remove 2 screws (A).
B. Remove the Cylinder Stator Unit.
C. Remove 2 screws (B).
D. Remove the Cylinder Rotor Unit.
E. Loose Hex screw (C) (1.5 mm) and remove the CYLINDER
RETAINER.
F. Remove the Upper Cylinder.
Fig. S4
3. UPPER CYLINDER ASSEMBLY
