When reassembling, perform the steps in the reverse order.
Notes:
1. Install the Cylinder Retainer so that the 2 holes on top of the
Cylinder Retainer are at right angles with the P5001 Connection.
2. Tighten the Hex screw (C) (1.5 mm) while pressing down on top of
the Cylinder Retainer.

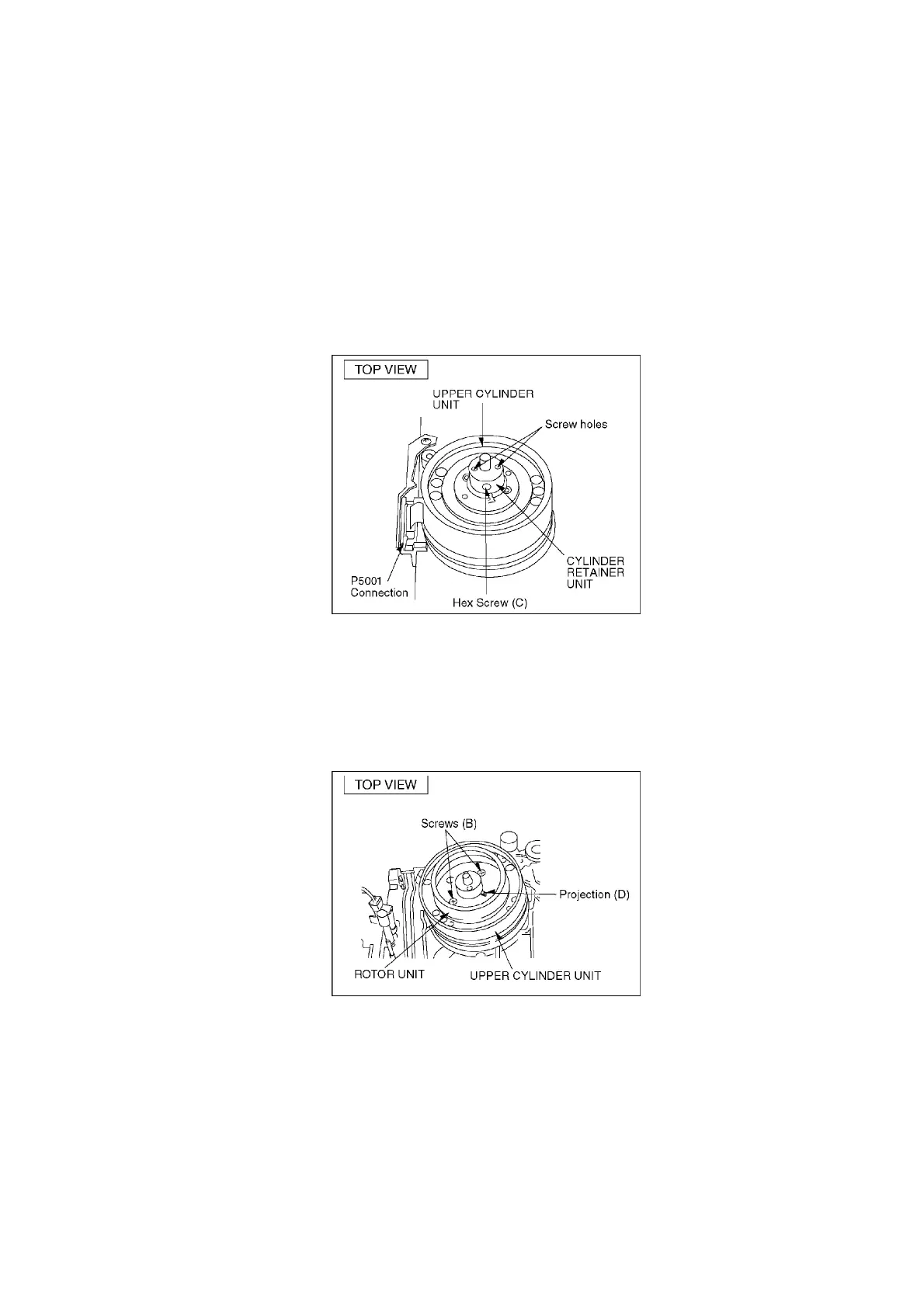

Fig. S5
3. Install the Cylinder Rotor Unit so that the inner hole of the Cylinder
Rotor Unit fits to the small projection (D) on top of the Upper
Cylinder.
4. Tighten 2 screws (B).
Fig. S6
5. install the Cylinder Stator Unit.
6. Tighten 2 screws (A).
Fig. S7
