7. Confirm the PG SHIFTER ADJUSTMENT with the alignment tape
(PAL: VFJ8125H3F) and adjust it if necessary.

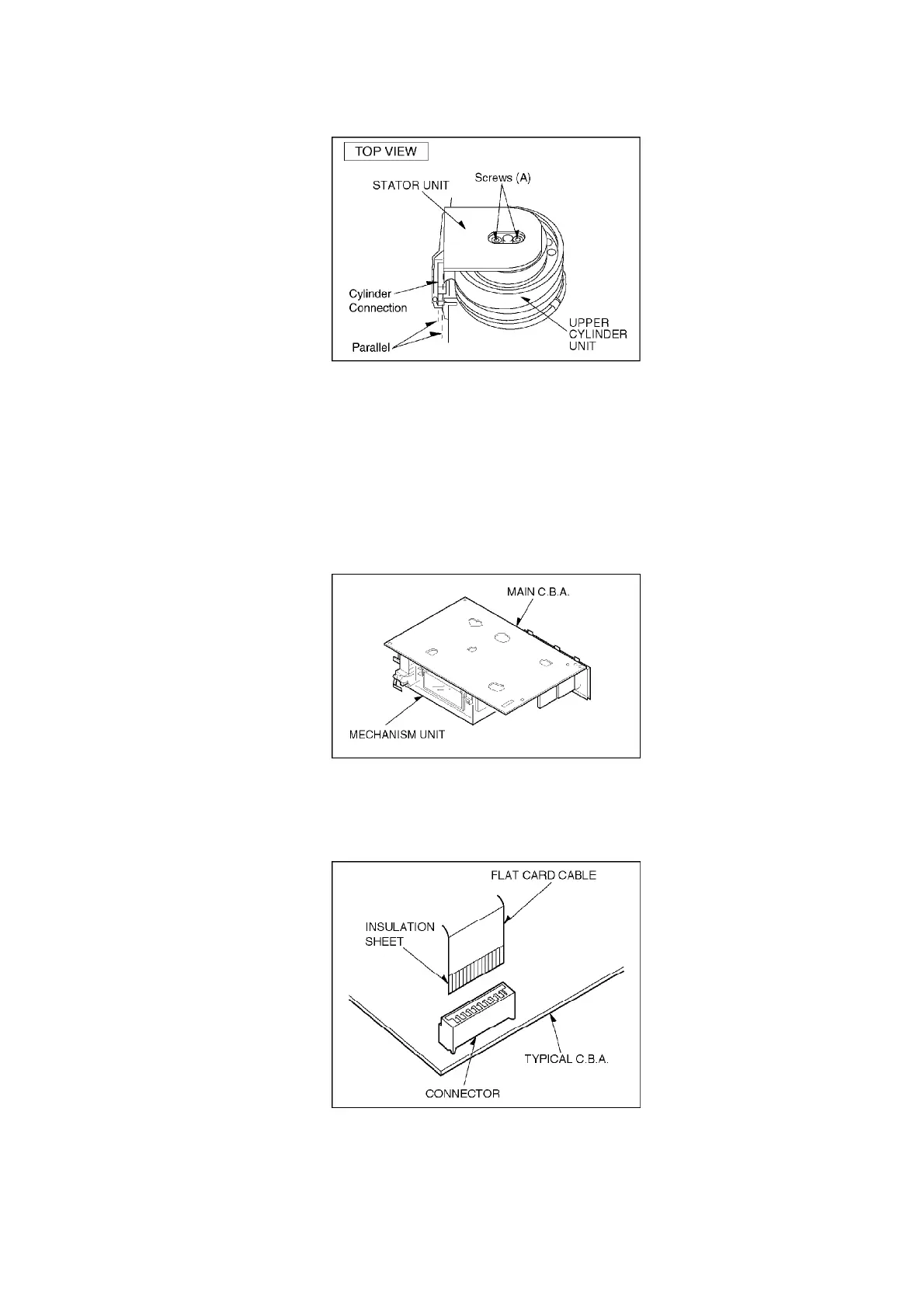

2.1.3. CHECKING OF MAIN C.B.A.
When servicing the MAIN C.B.A., take out the MAIN C.B.A. and mechanism from the frame and
turn over.
Fig. S8
2.1.4. FLAT CARD CABLE INSTALLATION
When installing the Flat Card Cable on the connector, install the Flat Card Cable with the cable
contacts facing the connector contacts.
Fig. S9
2.2. REMOVAL OF CASSETTE TAPE
There are 2 ways to remove a cassette tape.
